The game console. More...

#include <Console.h>

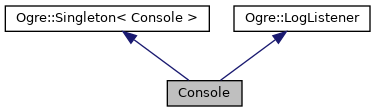

Inheritance diagram for Console:

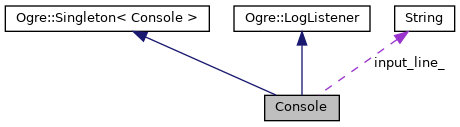

Collaboration diagram for Console:

[legend]

Classes
struct	OutputLine
	An ouptut line of the console. More...

Public Member Functions
	Console ()
	Constructor. More...

	~Console ()
	Destructor. More...

void	Input (const VGears::Event &event)
	Processes an input event. More...

void	Update ()
	Updates the console. More...

void	UpdateDraw ()
	Redraws the console. More...

void	UpdateNotification ()
	Notifies the console to update itself. More...

void	OnResize ()
	Processes a console resizing event. More...

void	SetToVisible ()
	Shows the console. More...

void	SetToHide ()
	Hides the console. More...

bool	IsVisible () const
	Checks if the console is currently visible. More...

void	AddTextToOutput (const Ogre::String &text, const Ogre::ColourValue &colour=Ogre::ColourValue::White)
	Writes text to the console. More...

void	ExecuteCommand (const Ogre::String &command)
	Executes a command in the console. More...

void	ExecuteScript ()

void	CompleteInput ()
	Autocompletes the current input. More...

void	ResetAutoCompletion ()
	Clears the autocompletion list. More...

void	AddInputToHistory ()
	Adds a console input to the console history. More...

void	SetInputLineFromHistory ()
	Sets a line from the history as the current input. More...

virtual void	messageLogged (const Ogre::String &message, Ogre::LogMessageLevel lml, bool maskDebug, const Ogre::String &logName, bool &skipThisMessage)
	Logs a message to the console. More...

Private Member Functions
void	LoadHistory ()
	Loads the console input history. More...

void	SaveHistory ()
	Saves the console input history. More...

void	AddToHistory (const Ogre::String &history)
	Adds a string to the console input history. More...

char	TranslateNumpad (const VGears::Event &event)
	Translates numpad key events to regular number events. More...

Private Attributes
int	console_width_
	The console width. More...

int	console_height_
	The console height. More...

unsigned int	line_width_
	The width of each line in the console. More...

int	letter_width_
	The width of each letter in the console. More...

bool	to_visible_
	Indicates if the console is being made visible. More...

bool	visible_
	Indicates if the console is currently visible. More...

float	height_
	Line height of the console. More...

std::list< OutputLine >	output_line_
	Listof lines in the console. More...

unsigned int	max_output_line_
	Max number of lines in output list. More...

unsigned int	display_line_
	The bottom line of the console, the active one. More...

Ogre::String	input_line_
	Currently typed text. More...

unsigned int	cursor_position_
	Position of the cursor in the active line. More...

float	cursor_blink_time_
	Cursor blink frequency, in seconds. More...

std::list< Ogre::String >	history_
	The console input history. More...

int	history_line_cycle_index_
	Currently selected line of the input history. More...

unsigned int	max_history_size_
	Maximum number of inputs to save to the history. More...

Ogre::StringVector	auto_completition_
	List of strings available for autocompletion. More...

unsigned int	auto_completition_line_
	Index of the currently displayed autocompletion option. More...

Detailed Description

The game console.

Constructor & Destructor Documentation

◆ Console()

Console::Console ( )

Constructor.

◆ ~Console()

Console::~Console ( )

Destructor.

Member Function Documentation

◆ AddInputToHistory()

void Console::AddInputToHistory ( )

Adds a console input to the console history.

◆ AddTextToOutput()

void Console::AddTextToOutput	(	const Ogre::String &	text,
		const Ogre::ColourValue &	colour = `Ogre::ColourValue::White`
	)

Writes text to the console.

Parameters

[in]	text	Text to write.
[in]	colour	Color for the text. Default is white.

◆ AddToHistory()

void Console::AddToHistory ( const Ogre::String & history )

private

Adds a string to the console input history.

◆ CompleteInput()

void Console::CompleteInput ( )

Autocompletes the current input.

◆ ExecuteCommand()

void Console::ExecuteCommand ( const Ogre::String & command )

Executes a command in the console.

Parameters

[in] command Command to execute.

◆ ExecuteScript()

void Console::ExecuteScript ( )

Todo:: Understand and document.

◆ Input()

void Console::Input ( const VGears::Event & event )

Processes an input event.

Parameters

[in] event Event to process.

◆ IsVisible()

bool Console::IsVisible ( ) const

Checks if the console is currently visible.

Returns: TRue if the console is visible, false otherwise.

◆ LoadHistory()

void Console::LoadHistory ( )

private

Loads the console input history.

◆ messageLogged()

void Console::messageLogged	(	const Ogre::String &	message,
		Ogre::LogMessageLevel	lml,
		bool	maskDebug,
		const Ogre::String &	logName,
		bool &	skipThisMessage
	)

virtual

Logs a message to the console.

Parameters

[in]	message	The message to log.
[in]	lml	Log level for the message.
[in]	maskDebug	Indicates if the mesage is being printed to the console or not.
[in]	logName	Name of the log.
[in]	skipThisMessage	If true, the message will not be logged.

◆ OnResize()

void Console::OnResize ( )

Processes a console resizing event.

◆ ResetAutoCompletion()

void Console::ResetAutoCompletion ( )

Clears the autocompletion list.

◆ SaveHistory()

void Console::SaveHistory ( )

private

Saves the console input history.

◆ SetInputLineFromHistory()

void Console::SetInputLineFromHistory ( )

Sets a line from the history as the current input.

◆ SetToHide()

void Console::SetToHide ( )

Hides the console.

◆ SetToVisible()

void Console::SetToVisible ( )

Shows the console.

◆ TranslateNumpad()

char Console::TranslateNumpad ( const VGears::Event & event )

private

Translates numpad key events to regular number events.

Parameters

[in] event Event to translate.

◆ Update()

void Console::Update ( )

Updates the console.

◆ UpdateDraw()

void Console::UpdateDraw ( )

Redraws the console.

◆ UpdateNotification()

void Console::UpdateNotification ( )

Notifies the console to update itself.

Member Data Documentation

◆ auto_completition_

Ogre::StringVector Console::auto_completition_

private

List of strings available for autocompletion.

◆ auto_completition_line_

unsigned int Console::auto_completition_line_

private

Index of the currently displayed autocompletion option.

◆ console_height_

int Console::console_height_

private

The console height.

◆ console_width_

int Console::console_width_

private

The console width.

◆ cursor_blink_time_

float Console::cursor_blink_time_

private

Cursor blink frequency, in seconds.

◆ cursor_position_

unsigned int Console::cursor_position_

private

Position of the cursor in the active line.

◆ display_line_

unsigned int Console::display_line_

private

The bottom line of the console, the active one.

◆ height_

float Console::height_

private

Line height of the console.

◆ history_

std::list<Ogre::String> Console::history_

private

The console input history.

◆ history_line_cycle_index_

int Console::history_line_cycle_index_

private

Currently selected line of the input history.

◆ input_line_

Ogre::String Console::input_line_

private

Currently typed text.

◆ letter_width_

int Console::letter_width_

private

The width of each letter in the console.

◆ line_width_

unsigned int Console::line_width_

private

The width of each line in the console.

◆ max_history_size_

unsigned int Console::max_history_size_

private

Maximum number of inputs to save to the history.

◆ max_output_line_

unsigned int Console::max_output_line_

private

Max number of lines in output list.

◆ output_line_

std::list<OutputLine> Console::output_line_

private

Listof lines in the console.

◆ to_visible_

bool Console::to_visible_

private

Indicates if the console is being made visible.

◆ visible_

bool Console::visible_

private

Indicates if the console is currently visible.

The documentation for this class was generated from the following files:

src/core/Console.h
src/core/Console.cpp
