Handles XML files. More...

#include <XmlFile.h>

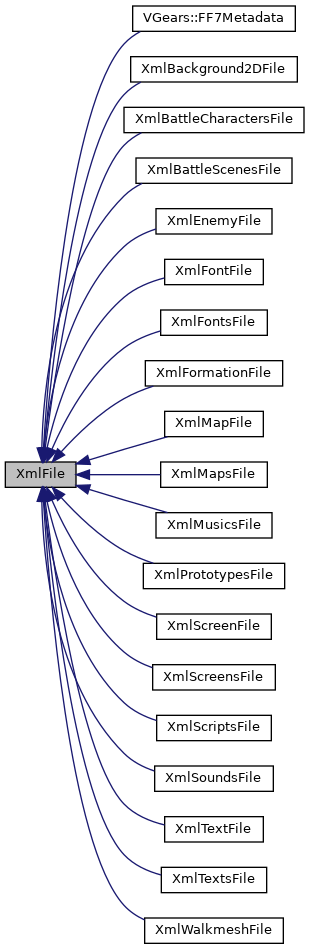

Inheritance diagram for XmlFile:

[legend]

Public Member Functions
	XmlFile (const Ogre::String &file)
	Constructor. More...

virtual	~XmlFile ()
	Destructor. More...

bool	GetBool (TiXmlNode *node, const Ogre::String &tag, bool def=false) const
	Retrieves a boolean from an XMl tag. More...

int	GetInt (TiXmlNode *node, const Ogre::String &tag, int def=0) const
	Retrieves an integer from an XMl tag. More...

float	GetFloat (TiXmlNode *node, const Ogre::String &tag, float def=0.0f) const
	Retrieves a defcimal from an XMl tag. More...

const Ogre::String	GetString (TiXmlNode *node, const Ogre::String &tag, const Ogre::String &def="") const
	Retrieves a string from an XMl tag. More...

const Ogre::UTFString	GetUTFString (TiXmlNode *node, const Ogre::String &tag, const Ogre::UTFString &def="") const
	Retrieves a string from an XMl tag. More...

const Ogre::Vector2	GetVector2 (TiXmlNode *node, const Ogre::String &tag, const Ogre::Vector2 &def=Ogre::Vector2::ZERO) const
	Retrieves a 2-dimensional vector from an XMl tag. More...

const Ogre::Vector3	GetVector3 (TiXmlNode *node, const Ogre::String &tag, const Ogre::Vector3 &def=Ogre::Vector3::ZERO) const
	Retrieves a 3-dimensional vector from an XMl tag. More...

const Ogre::Vector4	GetVector4 (TiXmlNode *node, const Ogre::String &tag, const Ogre::Vector4 &def=Ogre::Vector4::ZERO) const
	Retrieves a 4-dimensional vector from an XMl tag. More...

const Ogre::Matrix4	GetMatrix4 (TiXmlNode *node, const Ogre::String &tag, const Ogre::Matrix4 &def=Ogre::Matrix4::IDENTITY) const
	Retrieves a 4-dimensional matrix from an XMl tag. More...

const Ogre::Quaternion	GetQuaternion (TiXmlNode *node, const Ogre::String &tag, const Ogre::Quaternion &def=Ogre::Quaternion::IDENTITY) const
	Retrieves a quaternion from an XMl tag. More...

const Ogre::ColourValue	GetColourValue (TiXmlNode *node, const Ogre::String &tag, const Ogre::ColourValue &def=Ogre::ColourValue::ZERO) const
	Retrieves a colour from an XMl tag. More...

Protected Attributes
bool	normal_file_
	Indicates if the file is a normal file. More...

TiXmlDocument	file_
	The XML file. More...

Detailed Description

Handles XML files.

Constructor & Destructor Documentation

◆ XmlFile()

XmlFile::XmlFile ( const Ogre::String & file )

Constructor.

Parameters

[in] file Path to the XML file.

◆ ~XmlFile()

XmlFile::~XmlFile ( )

virtual

Destructor.

Member Function Documentation

◆ GetBool()

bool XmlFile::GetBool	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		bool	def = `false`
	)		const

Retrieves a boolean from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found or it's not a boolean value.

Returns: Boolean value of the tag. If it's not found or it's not a boolean, def is returned.

◆ GetColourValue()

const Ogre::ColourValue XmlFile::GetColourValue	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::ColourValue &	def = `Ogre::ColourValue::ZERO`
	)		const

Retrieves a colour from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: Colour in the tag. If it's not found, def is returned.

◆ GetFloat()

float XmlFile::GetFloat	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		float	def = `0.0f`
	)		const

Retrieves a defcimal from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found or it's not a numeric value.

Returns: Decimal value of the tag. If it's not found or it's not a number, def is returned.

◆ GetInt()

int XmlFile::GetInt	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		int	def = `0`
	)		const

Retrieves an integer from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found or it's not a numeric value.

Returns: Integer value of the tag. If it's not found or it's not a number, def is returned.

◆ GetMatrix4()

const Ogre::Matrix4 XmlFile::GetMatrix4	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::Matrix4 &	def = `Ogre::Matrix4::IDENTITY`
	)		const

Retrieves a 4-dimensional matrix from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: The matrix in the tag. If it's not found, def is returned.

◆ GetQuaternion()

const Ogre::Quaternion XmlFile::GetQuaternion	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::Quaternion &	def = `Ogre::Quaternion::IDENTITY`
	)		const

Retrieves a quaternion from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: Quaternion in the tag. If it's not found, def is returned.

◆ GetString()

const Ogre::String XmlFile::GetString	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::String &	def = `""`
	)		const

Retrieves a string from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: String value of the tag. If it's not found, def is returned.

◆ GetUTFString()

const Ogre::UTFString XmlFile::GetUTFString	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::UTFString &	def = `""`
	)		const

Retrieves a string from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: String value of the tag, in UFT8. If not found, def is returned.

◆ GetVector2()

const Ogre::Vector2 XmlFile::GetVector2	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::Vector2 &	def = `Ogre::Vector2::ZERO`
	)		const

Retrieves a 2-dimensional vector from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: Vector in the tag. If it's not found, def is returned.

◆ GetVector3()

const Ogre::Vector3 XmlFile::GetVector3	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::Vector3 &	def = `Ogre::Vector3::ZERO`
	)		const

Retrieves a 3-dimensional vector from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: Vector in the tag. If it's not found, def is returned.

◆ GetVector4()

const Ogre::Vector4 XmlFile::GetVector4	(	TiXmlNode *	node,
		const Ogre::String &	tag,
		const Ogre::Vector4 &	def = `Ogre::Vector4::ZERO`
	)		const

Retrieves a 4-dimensional vector from an XMl tag.

Parameters

[in]	node	The XML node.
[in]	tag	The name of the tag.
[in]	def	Default value, in case the tag is not found.

Returns: Vector in the tag. If it's not found, def is returned.

Member Data Documentation

◆ file_

TiXmlDocument XmlFile::file_

protected

The XML file.

◆ normal_file_

bool XmlFile::normal_file_

protected

Indicates if the file is a normal file.

Todo:: As opposed to what?

The documentation for this class was generated from the following files:

src/core/XmlFile.h
src/core/XmlFile.cpp
