VGears::LZSDataStream Class Reference

Handles LZS compressed data streams. More...

#include <VGearsLZSDataStream.h>

Inheritance diagram for VGears::LZSDataStream:

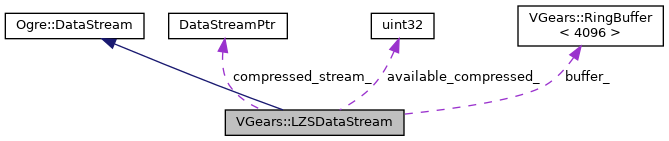

Collaboration diagram for VGears::LZSDataStream:

Public Member Functions
	LZSDataStream (const Ogre::DataStreamPtr &compressed_stream)
	Constructor. More...
	LZSDataStream (const String &name, const Ogre::DataStreamPtr &compressed_stream)
	Constructor. More...
virtual	~LZSDataStream ()
	Destructor. More...
virtual size_t	read (void *buf, size_t count) override
	Reads from the current position of stream into a buffer. More...
virtual bool	eof () const override
	Indicates if the stream has reached the end. More...
virtual void	skip (long count) override
	Unimplemented. More...
virtual void	seek (size_t pos) override
	Unimplemented. More...
virtual size_t	tell () const override
	Retrieves the current stream position. More...
virtual void	close () override
	Closes the stream. More...
size_t	AvailableCompressed () const
	Checks how many data still remains compresses. More...
size_t	AvailableUncompressed () const
	Checks how many data still has been uncompressesed. More...
void	FlipEndian (uint32 &inout_data)
	Flips the endian mode of some data. More...

Protected Member Functions
virtual void	init ()
	Initializes the stream and sets instance data. More...
virtual void	DecompressChunk ()
	Decompresses the stream. More...

Protected Attributes
Ogre::DataStreamPtr	compressed_stream_
uint32	available_compressed_
size_t	position_
RingBuffer< 4096 >	buffer_

Detailed Description

Handles LZS compressed data streams.

Constructor & Destructor Documentation

LZSDataStream() [1/2]

VGears::LZSDataStream::LZSDataStream

(

const Ogre::DataStreamPtr &

compressed_stream

)

Constructor.

Parameters

[in]

compressed_stream

The compressed stream.

LZSDataStream() [2/2]

VGears::LZSDataStream::LZSDataStream	(	const String &	name,
		const Ogre::DataStreamPtr &	compressed_stream
	)

Constructor.

Parameters

[in]	name	NAme for th stream.
[in]	compressed_stream	The compressed stream.

~LZSDataStream()

VGears::LZSDataStream::~LZSDataStream ( )

virtual

Destructor.

Member Function Documentation

AvailableCompressed()

size_t VGears::LZSDataStream::AvailableCompressed ( ) const

inline

Checks how many data still remains compresses.

Returns

The number of compressed bytes.

AvailableUncompressed()

size_t VGears::LZSDataStream::AvailableUncompressed ( ) const

inline

Checks how many data still has been uncompressesed.

Returns

The number of uncompressed bytes.

close()

void VGears::LZSDataStream::close ( )

overridevirtual

Closes the stream.

DecompressChunk()

void VGears::LZSDataStream::DecompressChunk ( )

protectedvirtual

Decompresses the stream.

Todo:

The whole stream?

eof()

bool VGears::LZSDataStream::eof ( ) const

overridevirtual

Indicates if the stream has reached the end.

Returns

True if the stream is ended, false otherwise.

FlipEndian()

void VGears::LZSDataStream::FlipEndian

(

uint32 &

inout_data

)

Flips the endian mode of some data.

Little endian data will be transformed into big endian, and big endian data will be transformed into little endian.

Parameters

[in,out]

inout_data

The data to flip.

init()

void VGears::LZSDataStream::init ( )

protectedvirtual

Initializes the stream and sets instance data.

read()

size_t VGears::LZSDataStream::read ( void *  buf, size_t  count  )

overridevirtual

Reads from the current position of stream into a buffer.

It also advances the stream cursor.

Parameters

[out]	buf	Buffer to read to.
[in]	count	Number of data to read. If the end of the stream is reached before reading this much, it will stop reading.

seek()

void VGears::LZSDataStream::seek ( size_t  pos )

overridevirtual

Unimplemented.

Not required.

Parameters

[in]

pos

Unused.

skip()

void VGears::LZSDataStream::skip ( long  count )

overridevirtual

Unimplemented.

Not required, can use read instead.

Parameters

[in]

count

Unused.

tell()

size_t VGears::LZSDataStream::tell ( ) const

overridevirtual

Retrieves the current stream position.

Returns

The current stream position.

Member Data Documentation

available_compressed_

uint32 VGears::LZSDataStream::available_compressed_

protected

buffer_

RingBuffer<4096> VGears::LZSDataStream::buffer_

protected

compressed_stream_

Ogre::DataStreamPtr VGears::LZSDataStream::compressed_stream_

protected

position_

size_t VGears::LZSDataStream::position_

protected

---

The documentation for this class was generated from the following files:

• src/data/VGearsLZSDataStream.h
• src/data/VGearsLZSDataStream.cpp
