The camera manager. More...

#include <CameraManager.h>

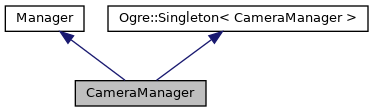

Inheritance diagram for CameraManager:

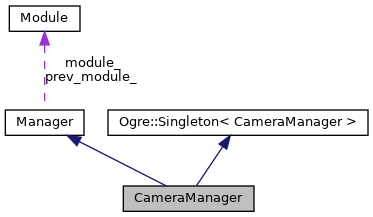

Collaboration diagram for CameraManager:

[legend]

Public Member Functions
	CameraManager ()
	Constructor. More...

virtual	~CameraManager ()
	Destructor. More...

void	Input (const VGears::Event &event) override
	Handles camera actions. More...

void	Input (const VGears::Event &event, Ogre::Real time_since_last_frame)
	Handles camera actions. More...

void	OnResize () override
	Trigered when the viewport is resized. More...

void	UpdateDebug () override
	Updates debug information. More...

void	ClearField () override
	Clears all field information in the camera manager. More...

void	ClearBattle () override
	Clears all battle information in the camera manager. More...

void	ClearWorld () override
	Clears all world map information in the camera manager. More...

void	SetCameraFree (const bool enable)
	Enables or disables the free camera. More...

void	Set2DCamera (const Ogre::Vector3 position, const Ogre::Quaternion orientation, const Ogre::Radian fov)
	Sets the camera properties. More...

void	StartBattleCamera (const Ogre::Vector3 position, const Ogre::Vector3 orientation)
	Starts the battle camera. More...

void	EndBattleCamera ()
	Ends the battle camera. More...

void	Set2DScroll (const Ogre::Vector2 &position)
	Sets the camera scroll. More...

const Ogre::Vector2 &	Get2DScroll () const
	Retrieves the camera position. More...

const Ogre::Vector3	ProjectPointToScreen (const Ogre::Vector3 &point)
	Calculates the position of a point in screen. More...

Ogre::Camera *	GetCurrentCamera ()
	Retrieves the camera. More...

Ogre::Viewport *	getViewport ()
	Retrieves the viewport. More...

void	EnableWireFrame (bool enable)
	Enables or disables the camera wireframe. More...

void	ScriptSetCamera (const int x, const int y, const int z, const int d_x, const int d_y, const int d_z)
	Sets the camera position and orientation. More...

Public Member Functions inherited from Manager
	Manager ()
	Constructor. More...

virtual	~Manager ()
	Destructor. More...

Module	GetModule () const
	Retrieves the currently selected module. More...

bool	IsModule (const Module module) const
	Checks the currently selected module. More...

bool	IsFieldModule () const
	Checks if the currently selected module is the field module. More...

bool	IsBattleModule () const
	Checks if the currently selected module is the battle module. More...

bool	IsWorldModule () const
	Checks if the currently selected module is the world module. More...

void	SetModule (const Module module)
	Sets the current module for the entity manager. More...

void	SetFieldModule ()
	Sets the current module to the field mode. More...

void	SetBattleModule ()
	Sets the current module to the battle mode. More...

void	SetWorldModule ()
	Sets the current module to the world map mode. More...

void	SetPreviousModule ()
	Sets the module that was loaded before a battle. More...

virtual void	Input (const VGears::Event &event)=0
	Handles an input event. More...

void	Update ()
	Called every frame, performs an update on the things controlled by the manager. More...

virtual void	UpdateDebug ()=0
	Called every frame, performs an update on the things controlled by the manager. More...

virtual void	OnResize ()=0
	Handles resizing events. More...

void	Clear ()
	Clears the manager. More...

void	Clear (const Module module)
	Clears the manager. More...

virtual void	ClearField ()=0
	Clear all field information in the manager. More...

virtual void	ClearBattle ()=0
	Clear all battle information in the manager. More...

virtual void	ClearWorld ()=0
	Clear all world map information in the manager. More...

void	ClearAll ()
	Clears the manager. More...

void	ScriptSetPaused (const bool paused)
	Handles game pausing. More...

Private Member Functions
void	InitCommands ()
	Initializes the camera parameters. More...

void	UpdateField () override
	Updates while the camera is in the field. More...

void	UpdateBattle () override
	Updates while the camera is in battle. More...

void	UpdateWorld () override
	Updates while the camera is in the world map. More...

Private Attributes
Ogre::Camera *	camera_
	The camera. More...

Ogre::Viewport *	viewport_
	The viewport. More...

Ogre::Vector3	position_initial_
	The initial position of the camera, saved when created. More...

Ogre::Quaternion	orientation_initial_
	The initial orientation of the camera, saved when created. More...

Ogre::Vector3	position_backup_
	A backup of the field or world camera position for when the battle camera is activated. More...

Ogre::Quaternion	orientation_backup_
	A backup of the field or world camera orientation for when the battle camera is active. More...

bool	camera_free_
	Flag to indicate a free camera. More...

bool	camera_free_rotate_
	Flag to indicate the free camera has rotated. More...

Ogre::Vector3	d2_position_
	Camera position. More...

Ogre::Quaternion	d2_orientation_
	Camera orientation. More...

Ogre::Radian	d2_fov_
	The field of view. More...

Ogre::Vector2	d2_scroll_
	The camera scroll. More...

Additional Inherited Members
Public Types inherited from Manager
enum	Module { FIELD = 0 , BATTLE = 1 , WORLD = 2 }
	The modules the entity manager can handle. More...

Protected Member Functions inherited from Manager
virtual void	UpdateField ()=0
	Updates the field entities in the manager. More...

virtual void	UpdateBattle ()=0
	Updates the battle entities in the manager. More...

virtual void	UpdateWorld ()=0
	Updates the world map entities in the manager. More...

void	Update (Module module)
	Updates the entities of one module in the manager. More...

Protected Attributes inherited from Manager
Module	module_
	The currently selected module. More...

Module	prev_module_
	The previous module. More...

bool	paused_
	Indicates if the game is paused. More...

Detailed Description

The camera manager.

Constructor & Destructor Documentation

◆ CameraManager()

CameraManager::CameraManager ( )

Constructor.

Initializes the camera with default parameters attached to the root scene manager.

◆ ~CameraManager()

CameraManager::~CameraManager ( )

virtual

Destructor.

Member Function Documentation

◆ ClearBattle()

void CameraManager::ClearBattle ( )

overridevirtual

Clears all battle information in the camera manager.

Implements Manager.

◆ ClearField()

void CameraManager::ClearField ( )

overridevirtual

Clears all field information in the camera manager.

Implements Manager.

◆ ClearWorld()

void CameraManager::ClearWorld ( )

overridevirtual

Clears all world map information in the camera manager.

Implements Manager.

◆ EnableWireFrame()

void CameraManager::EnableWireFrame ( bool enable )

Enables or disables the camera wireframe.

In wireframe mode, faces will not be rendered, only edges

Parameters

[in] enable True to enable wireframe mode, false to disable.

◆ EndBattleCamera()

void CameraManager::EndBattleCamera ( )

Ends the battle camera.

Returns the camera to the state it was when {

See also: StartBattleCamera} was called.

◆ Get2DScroll()

const Ogre::Vector2 & CameraManager::Get2DScroll ( ) const

Retrieves the camera position.

Returns: The camera current position, relative to absolute origin.

◆ GetCurrentCamera()

Ogre::Camera * CameraManager::GetCurrentCamera ( )

Retrieves the camera.

Returns: The current camera.

◆ getViewport()

Ogre::Viewport * CameraManager::getViewport ( )

Retrieves the viewport.

Returns: The camera viewport.

◆ InitCommands()

void CameraManager::InitCommands ( )

private

Initializes the camera parameters.

Must be called on construction.

◆ Input() [1/2]

void CameraManager::Input ( const VGears::Event & event )

overridevirtual

Handles camera actions.

Handles the scene manager camera actions based on events.

Parameters

[in] event Event that triggers the camera action.

Implements Manager.

◆ Input() [2/2]

void CameraManager::Input	(	const VGears::Event &	event,
		Ogre::Real	time_since_last_frame
	)

Handles camera actions.

Handles the scene manager camera actions based on events.

Parameters

[in]	event	Event that triggers the camera action.
[in]	time_since_last_frame	For speed calculation.

◆ OnResize()

void CameraManager::OnResize ( )

overridevirtual

Trigered when the viewport is resized.

Resets the aspect ratio.

Implements Manager.

◆ ProjectPointToScreen()

const Ogre::Vector3 CameraManager::ProjectPointToScreen ( const Ogre::Vector3 & point )

Calculates the position of a point in screen.

The calculation is done using A map position and the camera scroll.

Parameters

[in] point Position of the map to be translated to screen position.

Returns: Position of POINT in screen coordinates.

◆ ScriptSetCamera()

void CameraManager::ScriptSetCamera	(	const int	x,
		const int	y,
		const int	z,
		const int	d_x,
		const int	d_y,
		const int	d_z
	)

Sets the camera position and orientation.

It's only meand to be used for 3D cameras (battle, world map...), and using it while on a field can have unexpected results.

Parameters

[in]	x	X coordinate for the camera position.
[in]	y	Y coordinate for the camera position.
[in]	z	Z coordinate for the camera position.
[in]	d_x	X coordinate of the point the camera looks at.
[in]	d_y	Y coordinate of the point the camera looks at.
[in]	d_z	Z coordinate of the point the camera looks at.

◆ Set2DCamera()

void CameraManager::Set2DCamera	(	const Ogre::Vector3	position,
		const Ogre::Quaternion	orientation,
		const Ogre::Radian	fov
	)

Sets the camera properties.

Parameters

[in]	position	Camera coordinates.
[in]	orientation	Camera rotation, in quaternion format.
[in]	fov	Field of view, in radians.

◆ Set2DScroll()

void CameraManager::Set2DScroll ( const Ogre::Vector2 & position )

Sets the camera scroll.

Moves the camera to the desired position. If the camera is in free mode, it sets the position, but it won't actually move the camera.

Parameters

[in] position Position to scroll the camera to.

◆ SetCameraFree()

void CameraManager::SetCameraFree ( const bool enable )

Enables or disables the free camera.

A free camera moves depending on player input, not according to a script. For example, a camera following the PC is a free camera.

Parameters

[in] enable True to enable free camera, false to disable it.

◆ StartBattleCamera()

void CameraManager::StartBattleCamera	(	const Ogre::Vector3	position,
		const Ogre::Vector3	orientation
	)

Starts the battle camera.

Saves the position and orientation of the current camera to return once the battle is over.

Parameters

[in]	position	Initial position of the battle camera.
[in]	orientation	Initial orientation of the battle camera. It indicates the point the camera will look at.

◆ UpdateBattle()

void CameraManager::UpdateBattle ( )

overrideprivatevirtual

Updates while the camera is in battle.

Implements Manager.

◆ UpdateDebug()

void CameraManager::UpdateDebug ( )

overridevirtual

Updates debug information.

Implements Manager.

◆ UpdateField()

void CameraManager::UpdateField ( )

overrideprivatevirtual

Updates while the camera is in the field.

Implements Manager.

◆ UpdateWorld()

void CameraManager::UpdateWorld ( )

overrideprivatevirtual

Updates while the camera is in the world map.

Implements Manager.

Member Data Documentation

◆ camera_

Ogre::Camera* CameraManager::camera_

private

The camera.

◆ camera_free_

bool CameraManager::camera_free_

private

Flag to indicate a free camera.

A free camera moves depending on player input, not according to a script. For example, a camera following the PC is a free camera.

◆ camera_free_rotate_

bool CameraManager::camera_free_rotate_

private

Flag to indicate the free camera has rotated.

◆ d2_fov_

Ogre::Radian CameraManager::d2_fov_

private

The field of view.

◆ d2_orientation_

Ogre::Quaternion CameraManager::d2_orientation_

private

Camera orientation.

◆ d2_position_

Ogre::Vector3 CameraManager::d2_position_

private

Camera position.

◆ d2_scroll_

Ogre::Vector2 CameraManager::d2_scroll_

private

The camera scroll.

◆ orientation_backup_

Ogre::Quaternion CameraManager::orientation_backup_

private

A backup of the field or world camera orientation for when the battle camera is active.

◆ orientation_initial_

Ogre::Quaternion CameraManager::orientation_initial_

private

The initial orientation of the camera, saved when created.

◆ position_backup_

Ogre::Vector3 CameraManager::position_backup_

private

A backup of the field or world camera position for when the battle camera is activated.

◆ position_initial_

Ogre::Vector3 CameraManager::position_initial_

private

The initial position of the camera, saved when created.

◆ viewport_

Ogre::Viewport* CameraManager::viewport_

private

The viewport.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CameraManager()

◆ ~CameraManager()

Member Function Documentation

◆ ClearBattle()

◆ ClearField()

◆ ClearWorld()

◆ EnableWireFrame()

◆ EndBattleCamera()

◆ Get2DScroll()

◆ GetCurrentCamera()

◆ getViewport()

◆ InitCommands()

◆ Input() [1/2]

◆ Input() [2/2]

◆ OnResize()

◆ ProjectPointToScreen()

◆ ScriptSetCamera()

◆ Set2DCamera()

◆ Set2DScroll()

◆ SetCameraFree()

◆ StartBattleCamera()

◆ UpdateBattle()

◆ UpdateDebug()

◆ UpdateField()

◆ UpdateWorld()

Member Data Documentation

◆ camera_

◆ camera_free_

◆ camera_free_rotate_

◆ d2_fov_

◆ d2_orientation_

◆ d2_position_

◆ d2_scroll_

◆ orientation_backup_

◆ orientation_initial_

◆ position_backup_

◆ position_initial_

◆ viewport_
