Handles map files. More...

#include <VGearsMapFile.h>

Inheritance diagram for VGears::MapFile:

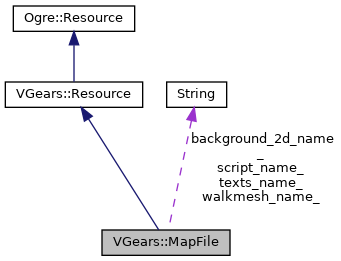

Collaboration diagram for VGears::MapFile:

[legend]

Public Types
typedef EntityPoint	Point

typedef std::vector< Point >	PointList

typedef EntityTrigger	Trigger

typedef std::vector< Trigger >	TriggerList

Public Member Functions
	MapFile (Ogre::ResourceManager creator, const String &name, Ogre::ResourceHandle handle, const String &group, bool is_manual=false, Ogre::ManualResourceLoader loader=NULL)
	Constructor. More...

virtual	~MapFile ()
	Destructor. More...

virtual const String &	GetScriptName () const
	Retrieves the map script name. More...

virtual const String &	GetBackground2dName () const
	Retrieves the map background file name. More...

virtual const String &	GetTextsName () const
	Retrieves the map texts file name. More...

virtual const String &	GetWalkmeshName () const
	Retrieves the map walkmesh file name. More...

virtual const Ogre::Real &	GetForwardDirection () const
	Retrieves the map forward direction. More...

virtual PointList &	GetPoints ()
	Retrieves the list of entity points in the map. More...

virtual TriggerList &	GetTriggers ()
	Retrieves the map triggers. More...

virtual void	SetScriptName (const String &script_name)
	Sets the map script name. More...

virtual void	SetBackground2dName (const String &background2d_name)
	Sets the map background file name. More...

virtual void	SetTextsName (const String &texts_name)
	Sets the map field texts file name. More...

virtual void	SetWalkmeshName (const String &walkmesh_name)
	Sets the map walkmesh file name. More...

virtual void	SetForwardDirection (const Ogre::Real &forward_direction)
	Sets the map forward direction. More...

Public Member Functions inherited from VGears::Resource
	Resource (Ogre::ResourceManager creator, const String &name, Ogre::ResourceHandle handle, const String &group, bool manual, Ogre::ManualResourceLoader loader)
	Constructor. More...

virtual	~Resource ()=default
	Destructor. More...

Static Public Attributes
static const String	RESOURCE_TYPE
	The type of resource. More...

Protected Member Functions
virtual void	loadImpl () override
	Loads the file. More...

virtual void	unloadImpl () override
	Unloads the file. More...

virtual size_t	calculateSize () const
	Calculates the size of the map. More...

Protected Member Functions inherited from VGears::Resource
virtual Ogre::DataStreamPtr	openResource ()
	Opens the resource. More...

Private Attributes
String	script_name_
	The script file name. More...

String	background_2d_name_
	The background file name. More...

String	texts_name_
	The background file name. More...

String	walkmesh_name_
	The walkmesh file name. More...

Ogre::Real	forward_direction_
	The forward direction. More...

PointList	points_
	The list of entity points. More...

TriggerList	triggers_
	The list of triggers. More...

Detailed Description

Handles map files.

Member Typedef Documentation

◆ Point

typedef EntityPoint VGears::MapFile::Point

◆ PointList

typedef std::vector<Point> VGears::MapFile::PointList

◆ Trigger

typedef EntityTrigger VGears::MapFile::Trigger

◆ TriggerList

typedef std::vector<Trigger> VGears::MapFile::TriggerList

Constructor & Destructor Documentation

◆ MapFile()

VGears::MapFile::MapFile	(	Ogre::ResourceManager *	creator,
		const String &	name,
		Ogre::ResourceHandle	handle,
		const String &	group,
		bool	is_manual = `false`,
		Ogre::ManualResourceLoader *	loader = `NULL`
	)

Constructor.

Parameters

[in]	creator	Pointer to the ResourceManager that is creating this resource.
[in]	name	The unique name of the resource.
[in]	handle

Todo:: Understand and document.

Parameters

[in]	group	The name of the resource group to which this resource belong.
[in]	is_manual	True if the resource is manually loaded, false otherwise.
[in]	loader	Pointer to a ManualResourceLoader implementation which will be called when the Resource wishes to load (should be supplied if is_manual is set to true). It can be null, but the Resource will never be able to reload if anything ever causes it to unload. Therefore provision of a proper ManualResourceLoader instance is strongly recommended.

◆ ~MapFile()

VGears::MapFile::~MapFile ( )

virtual

Destructor.

Member Function Documentation

◆ calculateSize()

size_t VGears::MapFile::calculateSize ( void ) const

protectedvirtual

Calculates the size of the map.

It's the size of the tiles, script, walkmesh and forward direction.

Returns: The size of the map.

◆ GetBackground2dName()

const String & VGears::MapFile::GetBackground2dName ( ) const

virtual

Retrieves the map background file name.

Returns: The background file name.

◆ GetForwardDirection()

const Ogre::Real & VGears::MapFile::GetForwardDirection ( ) const

virtual

Retrieves the map forward direction.

The forward direction is the direction the playable character moves when 'up' is pressed.

Returns: The forward direction.

◆ GetPoints()

MapFile::PointList & VGears::MapFile::GetPoints ( )

virtual

Retrieves the list of entity points in the map.

Returns: The list of entity points in the map.

◆ GetScriptName()

const String & VGears::MapFile::GetScriptName ( ) const

virtual

Retrieves the map script name.

Returns: The script name.

◆ GetTextsName()

const String & VGears::MapFile::GetTextsName ( ) const

virtual

Retrieves the map texts file name.

Returns: The texts file name.

◆ GetTriggers()

MapFile::TriggerList & VGears::MapFile::GetTriggers ( )

virtual

Retrieves the map triggers.

Returns: The list of triggers.

◆ GetWalkmeshName()

const String & VGears::MapFile::GetWalkmeshName ( ) const

virtual

Retrieves the map walkmesh file name.

Returns: The walkmesh file name.

◆ loadImpl()

void VGears::MapFile::loadImpl ( void )

overrideprotectedvirtual

Loads the file.

◆ SetBackground2dName()

void VGears::MapFile::SetBackground2dName ( const String & background2d_name )

virtual

Sets the map background file name.

Parameters

[in] background2d_name The background file name.

◆ SetForwardDirection()

void VGears::MapFile::SetForwardDirection ( const Ogre::Real & forward_direction )

virtual

Sets the map forward direction.

The forward direction is the direction the playable character moves when 'up' is pressed.

Parameters

[in] forward_direction The forward direction.

◆ SetScriptName()

void VGears::MapFile::SetScriptName ( const String & script_name )

virtual

Sets the map script name.

Parameters

[in] script_name The script name.

◆ SetTextsName()

void VGears::MapFile::SetTextsName ( const String & texts_name )

virtual

Sets the map field texts file name.

Parameters

[in] texts_name The texts file name.

◆ SetWalkmeshName()

void VGears::MapFile::SetWalkmeshName ( const String & walkmesh_name )

virtual

Sets the map walkmesh file name.

Parameters

[in] walkmesh_name The walkmesh file name.

◆ unloadImpl()

void VGears::MapFile::unloadImpl ( void )

overrideprotectedvirtual

Unloads the file.

Member Data Documentation

◆ background_2d_name_

String VGears::MapFile::background_2d_name_

private

The background file name.

◆ forward_direction_

Ogre::Real VGears::MapFile::forward_direction_

private

The forward direction.

◆ points_

PointList VGears::MapFile::points_

private

The list of entity points.

◆ RESOURCE_TYPE

const String VGears::MapFile::RESOURCE_TYPE

static

The type of resource.

◆ script_name_

String VGears::MapFile::script_name_

private

The script file name.

◆ texts_name_

String VGears::MapFile::texts_name_

private

The background file name.

◆ triggers_

TriggerList VGears::MapFile::triggers_

private

The list of triggers.

◆ walkmesh_name_

String VGears::MapFile::walkmesh_name_

private

The walkmesh file name.

The documentation for this class was generated from the following files:

src/map/VGearsMapFile.h
src/map/VGearsMapFile.cpp
