The media data installer. More...

#include <MediaDataInstaller.h>

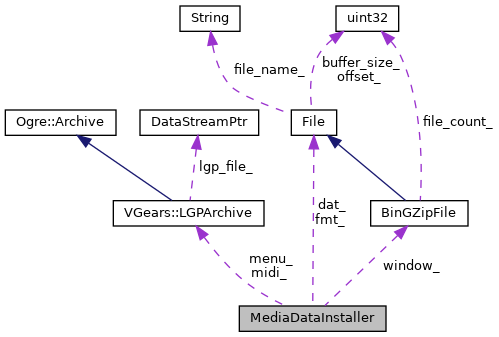

Collaboration diagram for MediaDataInstaller:

[legend]

Classes
struct	FmtFile
	The structure of each audio file pointer in a sound FMT file. More...

Public Member Functions
	MediaDataInstaller (const std::string input_dir, const std::string output_dir, const bool keep_originals, const bool no_ffmpeg, const bool no_timidity)
	Constructor. More...

	~MediaDataInstaller ()
	Destructor. More...

void	PopulateMaps ()
	Populates the audio name maps. More...

void	InstallSprites ()
	Extracts all images contained in the menu LGP file and installs them. More...

int	InstallSoundsInit ()
	Prepares the installer for the sounds extraction. More...

bool	InstallSounds ()
	Extracts the next sound file contained in the audio.dat file and installs it. More...

void	WriteSoundIndex ()
	Writes the XML file with all audio entries. More...

int	InstallMusicsInit ()
	Prepares the installer for the sounds extraction. More...

bool	InstallMusics ()
	Extracts the next music file contained in the midi.lgp, converts it and installs it. More...

void	InstallHQMusics ()
	Converts high quality musiscs to OGG. More...

void	WriteMusicsIndex ()
	Writes the XML file with all music tracks. More...

Private Attributes
std::string	input_dir_
	The path to the directory from which to read the PC game data. More...

std::string	output_dir_
	The path to the directory where to save the V-Gears data. More...

VGears::LGPArchive	menu_
	The menu.lgp file. More...

BinGZipFile	window_
	The WINDOW.BIN file. More...

File	fmt_
	The sounds .fmt file. More...

File	dat_
	The sounds .dat file. More...

int	processed_sounds_
	Number of sounds already processed. More...

std::unordered_map< int, std::string >	sound_map_
	Map for sound files with descriptive names. More...

std::vector< std::string >	sounds_
	Sound data for each entry to write to the XML file. More...

VGears::LGPArchive	midi_
	The midi.lgp file. More...

int	processed_musics_
	Number of music tracks already processed. More...

std::unordered_map< int, std::string >	musics_map_
	Map for music files with descriptive names. More...

std::vector< std::string >	musics_
	Sound data for each entry to write to the XML file. More...

bool	keep_originals_
	If true, orginal files will not be deleted after conversion. More...

bool	no_ffmpeg_
	Flag to prevent system calls to ffmpeg. More...

bool	no_timidity_
	Flag to prevent system calls to timidity. More...

Static Private Attributes
static int	TOTAL_SOUNDS = 723
	Number of sound files to extract. More...

static u8	WAV_HEADER [78]
	The standard WAV header. More...

Detailed Description

The media data installer.

Constructor & Destructor Documentation

◆ MediaDataInstaller()

MediaDataInstaller::MediaDataInstaller	(	const std::string	input_dir,
		const std::string	output_dir,
		const bool	keep_originals,
		const bool	no_ffmpeg,
		const bool	no_timidity
	)

Constructor.

Parameters

[in]	input_dir	Path to the directory containing the original data to parse.
[in]	output_dir	Path to the directory of the installation data.
[in]	keep_originals	True to keep original data after conversion, false to remove.
[in]	no_ffmpeg	True to prevent system calls to ffmpeg command, false to allow.
[in]	no_timidity	True to prevent system calls to timidity command, false to allow.

◆ ~MediaDataInstaller()

MediaDataInstaller::~MediaDataInstaller ( )

Destructor.

Member Function Documentation

◆ InstallHQMusics()

void MediaDataInstaller::InstallHQMusics ( )

Converts high quality musiscs to OGG.

There are four of them.

◆ InstallMusics()

bool MediaDataInstaller::InstallMusics ( )

Extracts the next music file contained in the midi.lgp, converts it and installs it.

Returns: True if there are no more musics to extract, false otherwise.

◆ InstallMusicsInit()

int MediaDataInstaller::InstallMusicsInit ( )

Prepares the installer for the sounds extraction.

Returns: The total number of sounds to process.

◆ InstallSounds()

bool MediaDataInstaller::InstallSounds ( )

Extracts the next sound file contained in the audio.dat file and installs it.

Returns: True if there are no more sounds to extract, false otherwise.

◆ InstallSoundsInit()

int MediaDataInstaller::InstallSoundsInit ( )

Prepares the installer for the sounds extraction.

Returns: The total number of sounds to process.

◆ InstallSprites()

void MediaDataInstaller::InstallSprites ( )

Extracts all images contained in the menu LGP file and installs them.

For composed textures, it extracts individual images. All images are saved under the "images" directory. This also includes font maps.

◆ PopulateMaps()

void MediaDataInstaller::PopulateMaps ( )

Populates the audio name maps.

◆ WriteMusicsIndex()

void MediaDataInstaller::WriteMusicsIndex ( )

Writes the XML file with all music tracks.

◆ WriteSoundIndex()

void MediaDataInstaller::WriteSoundIndex ( )

Writes the XML file with all audio entries.

Member Data Documentation

◆ dat_

File MediaDataInstaller::dat_

private

The sounds .dat file.

◆ fmt_

File MediaDataInstaller::fmt_

private

The sounds .fmt file.

◆ input_dir_

std::string MediaDataInstaller::input_dir_

private

The path to the directory from which to read the PC game data.

◆ keep_originals_

bool MediaDataInstaller::keep_originals_

private

If true, orginal files will not be deleted after conversion.

◆ menu_

VGears::LGPArchive MediaDataInstaller::menu_

private

The menu.lgp file.

◆ midi_

VGears::LGPArchive MediaDataInstaller::midi_

private

The midi.lgp file.

◆ musics_

std::vector<std::string> MediaDataInstaller::musics_

private

Sound data for each entry to write to the XML file.

◆ musics_map_

std::unordered_map<int, std::string> MediaDataInstaller::musics_map_

private

Map for music files with descriptive names.

◆ no_ffmpeg_

bool MediaDataInstaller::no_ffmpeg_

private

Flag to prevent system calls to ffmpeg.

◆ no_timidity_

bool MediaDataInstaller::no_timidity_

private

Flag to prevent system calls to timidity.

◆ output_dir_

std::string MediaDataInstaller::output_dir_

private

The path to the directory where to save the V-Gears data.

◆ processed_musics_

int MediaDataInstaller::processed_musics_

private

Number of music tracks already processed.

◆ processed_sounds_

int MediaDataInstaller::processed_sounds_

private

Number of sounds already processed.

◆ sound_map_

std::unordered_map<int, std::string> MediaDataInstaller::sound_map_

private

Map for sound files with descriptive names.

◆ sounds_

std::vector<std::string> MediaDataInstaller::sounds_

private

Sound data for each entry to write to the XML file.

◆ TOTAL_SOUNDS

int MediaDataInstaller::TOTAL_SOUNDS = 723

staticprivate

Number of sound files to extract.

◆ WAV_HEADER

u8 MediaDataInstaller::WAV_HEADER

staticprivate

Initial value:

= {
  0x52, 0x49, 0x46, 0x46, 0x70, 0x0B, 0x00, 0x00, 0x57, 0x41, 0x56, 0x45, 0x66, 0x6D, 0x74, 0x20,
  0x32, 0x00, 0x00, 0x00, 0x02, 0x00, 0x01, 0x00, 0x44, 0xAC, 0x00, 0x00, 0x00, 0x54, 0x00, 0x00,
  0x00, 0x04, 0x04, 0x00, 0x20, 0x00, 0xF4, 0x07, 0x07, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x02,
  0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x40, 0x00, 0xF0, 0x00, 0x00, 0x00, 0xCC, 0x01,
  0x30, 0xFF, 0x88, 0x01, 0x18, 0xFF, 0x64, 0x61, 0x74, 0x61, 0x2A, 0x0B, 0x00, 0x00
}

The standard WAV header.

78 bytes to be written to every wav file before anything else.

◆ window_

BinGZipFile MediaDataInstaller::window_

private

The WINDOW.BIN file.

The documentation for this class was generated from the following files:

src/installer/MediaDataInstaller.h
src/installer/MediaDataInstaller.cpp
