Background2DAnimation Class Reference

An animation in the background of a field. More...

#include <Background2DAnimation.h>

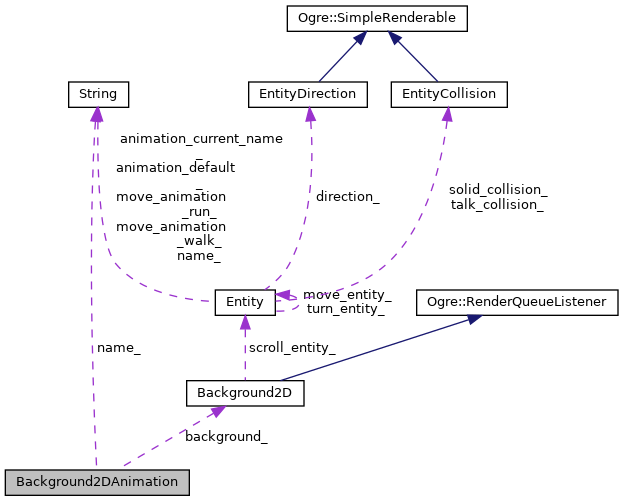

Collaboration diagram for Background2DAnimation:

Classes
struct	Background2DKeyFrameUV
	A keyframe. More...

Public Types
enum	State { ONCE , LOOPED }
	Repetition status of the animation. More...

Public Member Functions
	Background2DAnimation (const Ogre::String &name, Background2D *background, const int tile_index)
	Constructor. More...
virtual	~Background2DAnimation ()
	Destructor. More...
void	AddTime (const float time)
	Adds time, so the animation state is changed according to it. More...
const Ogre::String &	GetName () const
	Retrieves the animation name. More...
void	SetTime (const float time)
	Sets the time the animation has been running. More...
float	GetTime () const
	Retrieves the time the animation has been running. More...
void	SetLength (const float time)
	Sets the duration of the animation. More...
float	GetLength () const
	Retrieves the duration of the animation. More...
virtual void	AddUVKeyFrame (const VGears::KeyFrame key_frame)
	Adds a keyframe to the animation. More...
virtual void	AddUVKeyFrame (const float time, const Ogre::Vector4 &uv)
	Adds a keyframe to the animation. More...
virtual void	AddUVKeyFrame (const float time, const float u1, const float v1, const float u2, const float v2)
	Adds a keyframe to the animation. More...

Private Member Functions
	Background2DAnimation ()
	Constructor. More...

Private Attributes
Ogre::String	name_
	The animation name. More...
Background2D *	background_
	The background the animation belongs to. More...
int	tile_index_
	The index of the tile tha animation applies to. More...
float	time_
	The animation current time. More...
float	length_
	The duration of the animation. More...
std::vector< Background2DKeyFrameUV >	uv_
	Keyframe list. More...

Detailed Description

An animation in the background of a field.

Member Enumeration Documentation

State

enum Background2DAnimation::State

Repetition status of the animation.

Enumerator
ONCE	The animation must be played once.
LOOPED	The animation must loop indefinitely.

Constructor & Destructor Documentation

Background2DAnimation() [1/2]

Background2DAnimation::Background2DAnimation	(	const Ogre::String &	name,
		Background2D *	background,
		const int	tile_index
	)

Constructor.

Parameters

[in]	name	The animation name.
[in]	background	The background to animate.
[in]	tile_index	The tile the animation applies to.

~Background2DAnimation()

Background2DAnimation::~Background2DAnimation ( )

virtual

Destructor.

Background2DAnimation() [2/2]

Background2DAnimation::Background2DAnimation ( )

private

Constructor.

Member Function Documentation

AddTime()

void Background2DAnimation::AddTime

(

const float

time

)

Adds time, so the animation state is changed according to it.

Parameters

[in]

time

The time passed

Todo:

time is in seconds?

AddUVKeyFrame() [1/3]

void Background2DAnimation::AddUVKeyFrame ( const float  time, const float  u1, const float  v1, const float  u2, const float  v2  )

virtual

Adds a keyframe to the animation.

Parameters

[in]	time	Time to add the keyframe at.
[in]	u1	Animation vector component.
[in]	v1	Animation vector component.
[in]	u2	Animation vector component.
[in]	v2	Animation vector component.

Todo:

time is in seconds?

AddUVKeyFrame() [2/3]

void Background2DAnimation::AddUVKeyFrame ( const float  time, const Ogre::Vector4 &  uv  )

virtual

Adds a keyframe to the animation.

Parameters

[in]	time	Time to add the keyframe at.
[in]	uv	Animation vector.

Todo:

time is in seconds?

AddUVKeyFrame() [3/3]

void Background2DAnimation::AddUVKeyFrame ( const VGears::KeyFrame  key_frame )

virtual

Adds a keyframe to the animation.

Parameters

[in]

key_frame

The keyframe to add.

GetLength()

float Background2DAnimation::GetLength

(

)

const

Retrieves the duration of the animation.

Returns

The duration of the animation.

Todo:

time is in seconds?

GetName()

const Ogre::String & Background2DAnimation::GetName

(

)

const

Retrieves the animation name.

Returns

The animation name.

GetTime()

float Background2DAnimation::GetTime

(

)

const

Retrieves the time the animation has been running.

Returns

The time the animation has been running.

Todo:

time is in seconds?

SetLength()

void Background2DAnimation::SetLength

(

const float

time

)

Sets the duration of the animation.

Parameters

[in]

time

The duration of the animation.

Todo:

time is in seconds?

SetTime()

void Background2DAnimation::SetTime

(

const float

time

)

Sets the time the animation has been running.

Parameters

[in]

time

The time the animation has been running.

Todo:

time is in seconds?

Member Data Documentation

background_

Background2D* Background2DAnimation::background_

private

The background the animation belongs to.

length_

float Background2DAnimation::length_

private

The duration of the animation.

name_

Ogre::String Background2DAnimation::name_

private

The animation name.

tile_index_

int Background2DAnimation::tile_index_

private

The index of the tile tha animation applies to.

time_

float Background2DAnimation::time_

private

The animation current time.

uv_

std::vector<Background2DKeyFrameUV> Background2DAnimation::uv_

private

Keyframe list.

---

The documentation for this class was generated from the following files:

• src/core/Background2DAnimation.h
• src/core/Background2DAnimation.cpp
