A field background. More...

#include <Background2D.h>

Inheritance diagram for Background2D:

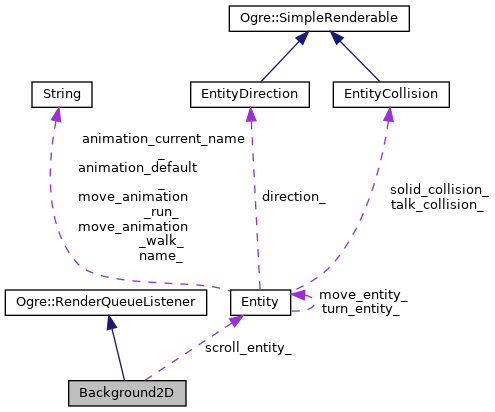

Collaboration diagram for Background2D:

[legend]

Classes
struct	AnimationPlayed
	State of an animation. More...

struct	Tile
	Represents a tile. More...

Public Types
enum	SCROLL_TYPE { NONE , LINEAR , SMOOTH }
	How to scroll the background. More...

typedef VGears::Blending	Blending

typedef std::vector< Tile >	TileList

Public Member Functions
	Background2D ()
	Constructor. More...

virtual	~Background2D ()
	Destructor. More...

void	InputDebug (const VGears::Event &event)

void	Hide ()
	Hides the background. More...

void	Show ()
	Shows the background. More...

void	Update ()
	Run each frame. More...

void	UpdateDebug ()
	Debug inormation about changes in the background. More...

void	OnResize ()
	Called on window resize. More...

void	Clear ()
	Removes the background and it's animations. More...

void	ScriptAutoScrollToEntity (Entity *entity)
	Flags the background to automatically scroll to an entity position. More...

Entity *	GetAutoScrollEntity () const
	Retrieves the entity currently being tracked for autoscroll. More...

void	ScriptScrollToPlayer (const SCROLL_TYPE type, const unsigned int seconds)
	Scrolls the background to the position of the playable character. More...

void	ScriptScrollToPosition (const float x, const float y, const SCROLL_TYPE type, const float seconds)
	Scrolls the background to a position. More...

int	ScriptScrollSync ()
	Waits for the scroll to complete. More...

void	ScriptOffset (const float x, const float y)
	Offsets the background to a position. More...

void	UnsetScroll ()
	Stops the current scrolling. More...

const Ogre::Vector2 &	GetScrollPositionStart () const
	Retrieves the initial position of the current scroll action. More...

const Ogre::Vector2 &	GetScrollPositionEnd () const
	Retrieves the final position of the current scroll action. More...

SCROLL_TYPE	GetScrollType () const
	Retrieves the type of the current scroll action. More...

float	GetScrollSeconds () const
	Retrieves the total duration the current scroll action. More...

void	SetScrollCurrentSeconds (const float seconds)
	Sets the time taken by the current scroll action. More...

float	GetScrollCurrentSeconds () const
	Retrieves the time taken by the current scroll action. More...

void	SetScreenScroll (const Ogre::Vector2 &position)
	Scroll position in screen coordinates. More...

const Ogre::Vector2	GetScreenScroll () const
	Retrieves the scroll position in screen coordinates. More...

void	SetScroll (const Ogre::Vector2 &position)
	Sets the scroll in game internal screen coordinates. More...

const Ogre::Vector2 &	GetScroll () const
	Retrieves the scroll position in game internal screen coordinates. More...

void	SetImage (const Ogre::String &image)
	Sets the background image. More...

void	SetRange (const int min_x, const int min_y, const int max_x, const int max_y)
	Set the background scrolling range. More...

void	SetRange (const Ogre::Vector4 &range)
	Set the background scrolling range. More...

void	AddTile (const int x, const int y, const int width, const int height, const float depth, const float u1, const float v1, const float u2, const float v2, const Blending blending)
	Adds a tile to the background. More...

void	AddTile (const Ogre::Vector2 &destination, const int width, const int height, const float depth, const Ogre::Vector4 &uv, const Blending blending)
	Adds a tile to the background. More...

void	AddTile (const VGears::Tile &tile)
	Adds a tile to the background. More...

void	UpdateTileUV (const unsigned int tile_id, const float u1, const float v1, const float u2, const float v2)
	Updates the UV vector of a tile. More...

void	AddAnimation (Background2DAnimation *animation)
	Adds an animation to the background. More...

void	PlayAnimation (const Ogre::String &animation, const Background2DAnimation::State state)
	Plays an animation. More...

void	ScriptPlayAnimationLooped (const char *name)
	Plays an animation in a loop. More...

void	ScriptPlayAnimationOnce (const char *name)
	Plays an animation once, then stops. More...

int	ScriptAnimationSync (const char *name)
	Plays an animation once, then stops. More...

void	renderQueueEnded (Ogre::uint8 queueGroupId, const Ogre::String &invocation, bool &repeatThisInvocation) override
	Ends the render queue. More...

virtual void	load (const VGears::Background2DFilePtr &background)
	Loads a background. More...

Protected Types
enum	{ TILE_VERTEX_COUNT = 6 , TILE_VERTEX_INDEX_SIZE = TILE_VERTEX_COUNT + 3 }
	Tile vertex properties. More...

Protected Member Functions
virtual void	load (const VGears::Background2DFile::TileList &tiles)
	Loads a tile list to the background. More...

virtual void	load (const size_t tile_index, const VGears::AnimationMap &animations)
	Loads an animation list to the background. More...

virtual void	applyScroll ()
	Apply the camera position to match the current scroll. More...

virtual void	calculateScreenScale ()
	Calculates the screen scale. More...

virtual void	virtualScreenToWorldSpace (Ogre::Vector2 &pos) const
	Sets the virtual screen to world space. More...

Private Member Functions
void	CreateVertexBuffers ()
	Creates all vertex buffers. More...

void	DestroyVertexBuffers ()
	Destroys all vertex buffers. More...

Private Attributes
Ogre::SceneManager *	scene_manager_
	The scene manager. More...

Ogre::RenderSystem *	render_system_
	The render system. More...

TileList	tiles_
	The list of tiles in the background. More...

Ogre::RenderOperation	alpha_render_op_
	Alpha blending render operation. More...

Ogre::HardwareVertexBufferSharedPtr	alpha_vertex_buffer_
	Alpha blending vertex buffer. More...

unsigned int	alpha_max_vertex_count_
	Alpha blending max vertex count. More...

Ogre::MaterialPtr	alpha_material_
	Alpha blending material. More...

Ogre::RenderOperation	add_render_op_
	Add blending render operation. More...

Ogre::HardwareVertexBufferSharedPtr	add_vertex_buffer_
	Add blending vertex buffer. More...

unsigned int	add_max_vertex_count_
	Add blending max vertex count. More...

Ogre::MaterialPtr	add_material
	Add blending material. More...

Ogre::RenderOperation	subtract_render_op_
	Substract blending render operation. More...

Ogre::HardwareVertexBufferSharedPtr	subtract_vertex_buffer_
	Substract blending vertex buffer. More...

unsigned int	subtract_max_vertex_count_
	Substract blending max vertex count. More...

Ogre::MaterialPtr	subtract_material_
	Substract blending material. More...

Entity *	scroll_entity_
	The entity to keep track of with the scroll. More...

Ogre::Vector2	scroll_position_start_
	Starting position of the current scroll action. More...

Ogre::Vector2	scroll_position_end_
	Final position of the current scroll action. More...

SCROLL_TYPE	scroll_type_
	Type of the current scroll action. More...

float	scroll_seconds_
	Total duration of the current scroll action, in seconds. More...

float	scroll_current_seconds_
	Secund the currens scroll action has taken so far. More...

std::vector< ScriptId >	scroll_sync_

Ogre::Vector2	position_
	The current scroll position, virtual screen size. More...

Ogre::Vector2	offset_
	The current background offset, virtual screen size. More...

Ogre::Vector2	position_real_
	The current scroll position, viewport size. More...

Ogre::Real	screen_scale_
	The scale of the screen. More...

Ogre::Vector2	screen_proportion_
	Screen aspect ration. More...

Ogre::Vector2	virtual_screen_size_
	The size of the virtual screen. More...

Ogre::AxisAlignedBox	range_

std::vector< AnimationPlayed >	animation_played_

std::vector< Background2DAnimation * >	animations_
	List of animations. More...

Detailed Description

A field background.

Member Typedef Documentation

◆ Blending

typedef VGears::Blending Background2D::Blending

◆ TileList

typedef std::vector<Tile> Background2D::TileList

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Tile vertex properties.

Enumerator

TILE_VERTEX_COUNT

Tile vertex count.

Todo:: Understand and document.

TILE_VERTEX_INDEX_SIZE

Tile vertex index size.

◆ SCROLL_TYPE

enum Background2D::SCROLL_TYPE

How to scroll the background.

Enumerator

NONE

Don't scroll the background.

LINEAR

Linearly scroll.

May seem unnatural in scripted sequences, but it's OK for character tracking.

SMOOTH

Smooth (soft in, soft out) scroll.

Best for scripted sequences.

Constructor & Destructor Documentation

◆ Background2D()

Background2D::Background2D ( )

Constructor.

◆ ~Background2D()

Background2D::~Background2D ( )

virtual

Destructor.

Member Function Documentation

◆ AddAnimation()

void Background2D::AddAnimation ( Background2DAnimation * animation )

Adds an animation to the background.

Parameters

[in] animation Animation to add.

◆ AddTile() [1/3]

void Background2D::AddTile	(	const int	x,
		const int	y,
		const int	width,
		const int	height,
		const float	depth,
		const float	u1,
		const float	v1,
		const float	u2,
		const float	v2,
		const Blending	blending
	)

Adds a tile to the background.

Parameters

[in]	x	X coordinate for the tile.
[in]	y	Y coordinate for the tile.
[in]	width	Tile width.
[in]	height	Tile height.
[in]	depth	Depth of the tile.
[in]	u1
[in]	v1
[in]	u2
[in]	v2
[in]	blending	Blending mode for the tile

Todo:

Depth is z-index??

What are v1, v2, u1 and u2?

◆ AddTile() [2/3]

void Background2D::AddTile	(	const Ogre::Vector2 &	destination,
		const int	width,
		const int	height,
		const float	depth,
		const Ogre::Vector4 &	uv,
		const Blending	blending
	)

Adds a tile to the background.

Parameters

[in]	destination	Coordinates for the tile.
[in]	width	Tile width.
[in]	height	Tile height.
[in]	depth	Depth of the tile.
[in]	uv
[in]	blending	Blending mode for the tile

Todo:

Depth is z-index??

What is uv?

◆ AddTile() [3/3]

void Background2D::AddTile ( const VGears::Tile & tile )

Adds a tile to the background.

Parameters

[in] tile The tile to add.

◆ applyScroll()

void Background2D::applyScroll ( )

protectedvirtual

Apply the camera position to match the current scroll.

◆ calculateScreenScale()

void Background2D::calculateScreenScale ( )

protectedvirtual

Calculates the screen scale.

The scale is calculated as the proportion between the viewport and the virtual screen.

◆ Clear()

void Background2D::Clear ( )

Removes the background and it's animations.

◆ CreateVertexBuffers()

void Background2D::CreateVertexBuffers ( )

private

Creates all vertex buffers.

◆ DestroyVertexBuffers()

void Background2D::DestroyVertexBuffers ( )

private

Destroys all vertex buffers.

◆ GetAutoScrollEntity()

Entity * Background2D::GetAutoScrollEntity ( ) const

Retrieves the entity currently being tracked for autoscroll.

Returns: The entity currently being tracked, or nullptr if the background is not currently scrolling to any entity.

◆ GetScreenScroll()

const Ogre::Vector2 Background2D::GetScreenScroll ( ) const

Retrieves the scroll position in screen coordinates.

Returns: Screen coordinates of the scroll.

◆ GetScroll()

const Ogre::Vector2 & Background2D::GetScroll ( ) const

Retrieves the scroll position in game internal screen coordinates.

Returns: Screen coordinates of the scroll.

◆ GetScrollCurrentSeconds()

float Background2D::GetScrollCurrentSeconds ( ) const

Retrieves the time taken by the current scroll action.

It represents the time the current scroll action has been going on for.

Returns: Time taken by the current scroll action.

◆ GetScrollPositionEnd()

const Ogre::Vector2 & Background2D::GetScrollPositionEnd ( ) const

Retrieves the final position of the current scroll action.

Returns: The final position of the current scroll action.

◆ GetScrollPositionStart()

const Ogre::Vector2 & Background2D::GetScrollPositionStart ( ) const

Retrieves the initial position of the current scroll action.

Returns: The initial position of the current scroll action.

◆ GetScrollSeconds()

float Background2D::GetScrollSeconds ( ) const

Retrieves the total duration the current scroll action.

Returns: Duration of the current scroll action.

◆ GetScrollType()

Background2D::SCROLL_TYPE Background2D::GetScrollType ( ) const

Retrieves the type of the current scroll action.

Returns: The type of the current scroll action.

◆ Hide()

void Background2D::Hide ( )

Hides the background.

Once called, the background will not be rendered until {

See also: Show()} is called. If the background is already hidden, it will do nothing.

◆ InputDebug()

void Background2D::InputDebug ( const VGears::Event & event )

Todo:: Understand and document.

Parameters

[in] event Event.

◆ load() [1/3]

void Background2D::load	(	const size_t	tile_index,
		const VGears::AnimationMap &	animations
	)

protectedvirtual

Loads an animation list to the background.

Parameters

[in]	tile_index	The index of the tile.
[in]	animations	List of animations to load.

◆ load() [2/3]

void Background2D::load ( const VGears::Background2DFile::TileList & tiles )

protectedvirtual

Loads a tile list to the background.

Parameters

[in] tiles The list of tiles to load.

◆ load() [3/3]

void Background2D::load ( const VGears::Background2DFilePtr & background )

virtual

Loads a background.

Parameters

[in] background The background to load.

◆ OnResize()

void Background2D::OnResize ( )

Called on window resize.

Resizes the background, keeping the ratio.

◆ PlayAnimation()

void Background2D::PlayAnimation	(	const Ogre::String &	animation,
		const Background2DAnimation::State	state
	)

Plays an animation.

Parameters

[in]	animation	The animation to play.
[in]	state	Animation state.

◆ renderQueueEnded()

void Background2D::renderQueueEnded	(	Ogre::uint8	queueGroupId,
		const Ogre::String &	invocation,
		bool &	repeatThisInvocation
	)

override

Ends the render queue.

Parameters

[in]	queueGroupId	The group id of the queue to end.
[in]	invocation
[in]	repeatThisInvocation	Indicates if the invocation must be repeated.

Todo:: Understand and document.

◆ ScriptAnimationSync()

int Background2D::ScriptAnimationSync ( const char * name )

Plays an animation once, then stops.

The animation is played synchronously, and the thread is locked until it ends.

Parameters

[in] name Animation name.

◆ ScriptAutoScrollToEntity()

void Background2D::ScriptAutoScrollToEntity ( Entity * entity )

Flags the background to automatically scroll to an entity position.

Parameters

[in] entity The entity to track.

◆ ScriptOffset()

void Background2D::ScriptOffset	(	const float	x,
		const float	y
	)

Offsets the background to a position.

Parameters

[in]	x	X coordinate to scroll to.
[in]	y	Y coordinate to scroll to.

◆ ScriptPlayAnimationLooped()

void Background2D::ScriptPlayAnimationLooped ( const char * name )

Plays an animation in a loop.

The animation is played asynchronously.

Parameters

[in] name Animation name.

◆ ScriptPlayAnimationOnce()

void Background2D::ScriptPlayAnimationOnce ( const char * name )

Plays an animation once, then stops.

The animation is played asynchronously.

Parameters

[in] name Animation name.

◆ ScriptScrollSync()

int Background2D::ScriptScrollSync ( )

Waits for the scroll to complete.

Returns: -1.

◆ ScriptScrollToPlayer()

void Background2D::ScriptScrollToPlayer	(	const SCROLL_TYPE	type,
		const unsigned int	seconds
	)

Scrolls the background to the position of the playable character.

Parameters

[in]	type	Scroll type.
[in]	seconds	Scroll duration.

◆ ScriptScrollToPosition()

void Background2D::ScriptScrollToPosition	(	const float	x,
		const float	y,
		const SCROLL_TYPE	type,
		const float	seconds
	)

Scrolls the background to a position.

Parameters

[in]	x	X coordinate to scroll to.
[in]	y	Y coordinate to scroll to.
[in]	type	Scroll type.
[in]	seconds	Duration of the scroll.

◆ SetImage()

void Background2D::SetImage ( const Ogre::String & image )

Sets the background image.

Parameters

[in] image Image name.

◆ SetRange() [1/2]

void Background2D::SetRange	(	const int	min_x,
		const int	min_y,
		const int	max_x,
		const int	max_y
	)

Set the background scrolling range.

The range is applied in game internal screen coordinates.

Parameters

[in]	min_x	Min scrollabe x coordinate.
[in]	min_y	Min scrollabe y coordinate.
[in]	max_x	Max scrollabe x coordinate.
[in]	max_y	Max scrollabe y coordinate.

◆ SetRange() [2/2]

void Background2D::SetRange ( const Ogre::Vector4 & range )

Set the background scrolling range.

The range is applied in game internal screen coordinates.

Parameters

[in] range Range bounds vector.

◆ SetScreenScroll()

void Background2D::SetScreenScroll ( const Ogre::Vector2 & position )

Scroll position in screen coordinates.

Parameters

[in] position Position to set the scroll.

◆ SetScroll()

void Background2D::SetScroll ( const Ogre::Vector2 & position )

Sets the scroll in game internal screen coordinates.

Parameters

[in] position Position to set the scroll.

◆ SetScrollCurrentSeconds()

void Background2D::SetScrollCurrentSeconds ( const float seconds )

Sets the time taken by the current scroll action.

It represents the time the current scroll action has been going on for.

Parameters

[in] seconds Time taken by the current scroll action.

◆ Show()

void Background2D::Show ( )

Shows the background.

Once called, the background will start rendered until {

See also: Hide()} is called.

◆ UnsetScroll()

void Background2D::UnsetScroll ( )

Stops the current scrolling.

◆ Update()

void Background2D::Update ( )

Run each frame.

Updates animations and changes in the background.

◆ UpdateDebug()

void Background2D::UpdateDebug ( )

Debug inormation about changes in the background.

◆ UpdateTileUV()

void Background2D::UpdateTileUV	(	const unsigned int	tile_id,
		const float	u1,
		const float	v1,
		const float	u2,
		const float	v2
	)

Updates the UV vector of a tile.

Parameters

[in]	tile_id	ID of the tile to update.
[in]	u1
[in]	v1
[in]	u2
[in]	v2

Todo:: What are v1, v2, u1 and u2?

◆ virtualScreenToWorldSpace()

void Background2D::virtualScreenToWorldSpace ( Ogre::Vector2 & pos ) const

protectedvirtual

Sets the virtual screen to world space.

Parameters

[in] pos

Todo:: Understand and document.

Member Data Documentation

◆ add_material

Ogre::MaterialPtr Background2D::add_material

private

Add blending material.

◆ add_max_vertex_count_

unsigned int Background2D::add_max_vertex_count_

private

Add blending max vertex count.

◆ add_render_op_

Ogre::RenderOperation Background2D::add_render_op_

private

Add blending render operation.

◆ add_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr Background2D::add_vertex_buffer_

private

Add blending vertex buffer.

◆ alpha_material_

Ogre::MaterialPtr Background2D::alpha_material_

private

Alpha blending material.

◆ alpha_max_vertex_count_

unsigned int Background2D::alpha_max_vertex_count_

private

Alpha blending max vertex count.

◆ alpha_render_op_

Ogre::RenderOperation Background2D::alpha_render_op_

private

Alpha blending render operation.

◆ alpha_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr Background2D::alpha_vertex_buffer_

private

Alpha blending vertex buffer.

◆ animation_played_

std::vector<AnimationPlayed> Background2D::animation_played_

private

Todo:: Document.

◆ animations_

std::vector<Background2DAnimation*> Background2D::animations_

private

List of animations.

◆ offset_

Ogre::Vector2 Background2D::offset_

private

The current background offset, virtual screen size.

◆ position_

Ogre::Vector2 Background2D::position_

private

The current scroll position, virtual screen size.

◆ position_real_

Ogre::Vector2 Background2D::position_real_

private

The current scroll position, viewport size.

Includes the offset.

◆ range_

Ogre::AxisAlignedBox Background2D::range_

private

Todo:: Document.

◆ render_system_

Ogre::RenderSystem* Background2D::render_system_

private

The render system.

◆ scene_manager_

Ogre::SceneManager* Background2D::scene_manager_

private

The scene manager.

◆ screen_proportion_

Ogre::Vector2 Background2D::screen_proportion_

private

Screen aspect ration.

◆ screen_scale_

Ogre::Real Background2D::screen_scale_

private

The scale of the screen.

◆ scroll_current_seconds_

float Background2D::scroll_current_seconds_

private

Secund the currens scroll action has taken so far.

◆ scroll_entity_

Entity* Background2D::scroll_entity_

private

The entity to keep track of with the scroll.

◆ scroll_position_end_

Ogre::Vector2 Background2D::scroll_position_end_

private

Final position of the current scroll action.

◆ scroll_position_start_

Ogre::Vector2 Background2D::scroll_position_start_

private

Starting position of the current scroll action.

◆ scroll_seconds_

float Background2D::scroll_seconds_

private

Total duration of the current scroll action, in seconds.

◆ scroll_sync_

std::vector<ScriptId> Background2D::scroll_sync_

private

Todo:: Document.

◆ scroll_type_

SCROLL_TYPE Background2D::scroll_type_

private

Type of the current scroll action.

◆ subtract_material_

Ogre::MaterialPtr Background2D::subtract_material_

private

Substract blending material.

◆ subtract_max_vertex_count_

unsigned int Background2D::subtract_max_vertex_count_

private

Substract blending max vertex count.

◆ subtract_render_op_

Ogre::RenderOperation Background2D::subtract_render_op_

private

Substract blending render operation.

◆ subtract_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr Background2D::subtract_vertex_buffer_

private

Substract blending vertex buffer.

◆ tiles_

TileList Background2D::tiles_

private

The list of tiles in the background.

◆ virtual_screen_size_

Ogre::Vector2 Background2D::virtual_screen_size_

private

The size of the virtual screen.

The documentation for this class was generated from the following files:

src/core/Background2D.h
src/core/Background2D.cpp

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Blending

◆ TileList

Member Enumeration Documentation

◆ anonymous enum

◆ SCROLL_TYPE

Constructor & Destructor Documentation

◆ Background2D()

◆ ~Background2D()

Member Function Documentation

◆ AddAnimation()

◆ AddTile() [1/3]

◆ AddTile() [2/3]

◆ AddTile() [3/3]

◆ applyScroll()

◆ calculateScreenScale()

◆ Clear()

◆ CreateVertexBuffers()

◆ DestroyVertexBuffers()

◆ GetAutoScrollEntity()

◆ GetScreenScroll()

◆ GetScroll()

◆ GetScrollCurrentSeconds()

◆ GetScrollPositionEnd()

◆ GetScrollPositionStart()

◆ GetScrollSeconds()

◆ GetScrollType()

◆ Hide()

◆ InputDebug()

◆ load() [1/3]

◆ load() [2/3]

◆ load() [3/3]

◆ OnResize()

◆ PlayAnimation()

◆ renderQueueEnded()

◆ ScriptAnimationSync()

◆ ScriptAutoScrollToEntity()

◆ ScriptOffset()

◆ ScriptPlayAnimationLooped()

◆ ScriptPlayAnimationOnce()

◆ ScriptScrollSync()

◆ ScriptScrollToPlayer()

◆ ScriptScrollToPosition()

◆ SetImage()

◆ SetRange() [1/2]

◆ SetRange() [2/2]

◆ SetScreenScroll()

◆ SetScroll()

◆ SetScrollCurrentSeconds()

◆ Show()

◆ UnsetScroll()

◆ Update()

◆ UpdateDebug()

◆ UpdateTileUV()

◆ virtualScreenToWorldSpace()

Member Data Documentation

◆ add_material

◆ add_max_vertex_count_

◆ add_render_op_

◆ add_vertex_buffer_

◆ alpha_material_

◆ alpha_max_vertex_count_

◆ alpha_render_op_

◆ alpha_vertex_buffer_

◆ animation_played_

◆ animations_

◆ offset_

◆ position_

◆ position_real_

◆ range_

◆ render_system_

◆ scene_manager_
