#include <FieldDataInstaller.h>

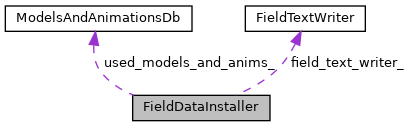

Collaboration diagram for FieldDataInstaller:

Public Member Functions
	FieldDataInstaller (const std::string input_dir, const std::string output_dir)
	Installer constructor. More...

	~FieldDataInstaller ()
	Installer destructor. More...

int	CollectSpawnAndScaleFactorsInit (Ogre::ResourceGroupManager *res_mgr)
	Initializer for {. More...

void	CollectSpawnAndScaleFactors (int field_index)
	Reads spawn points and scale factors from flevel files. More...

void	Convert (int field_index)
	Converts FFVII PC fields to V-Gears format. More...

int	WriteInit ()
	Initializer for {. More...

void	Write (int field_index)
	Saves the game maps to XML files. More...

void	WriteEnd ()
	Cleans up after {. More...

std::vector< std::string >	ConvertModelsInit ()
	Initializer for {. More...

void	ConvertModels (std::string model_name)
	Converts the field models to V-Gears format. More...

Private Member Functions
void	ExportMesh (const std::string outdir, const Ogre::MeshPtr &mesh)
	Exports a mesh to a file. More...

std::vector< int >	ExtractMusicTrackIds (VGears::FLevelFilePtr &field)
	Reads the music track IDs from a specific field. More...

void	PcFieldToVGearsField (VGears::FLevelFilePtr &field)
	Converts a FFVII PC field to a V-Gears field. More...

float	GetFieldScaleFactor (size_t field_id)
	Retrieves a field scale factor. More...

void	CreateDir (const std::string &dir)
	Creates a directory in the outputh path. More...

Static Private Member Functions
static std::string	CreateGateWayScript (const std::string &gateway_entity_name, const std::string &target_map_name, const std::string &source_spawn_point_name)
	Creates a gateway script. More...

static size_t	GetFieldId (const std::string &name, const std::vector< std::string > &field_id_to_name_lookup)
	Retrieves a field ID from a name. More...

static bool	IsAFieldFile (const Ogre::String &resource_name)
	Checks if a file is a field file. More...

static bool	WillCrash (const Ogre::String &resource_name)
	Checks if a map cause fatal crash bugs. More...

static bool	IsTestField (const Ogre::String &resource_name)
	Checks if a map is a test field. More...

static void	CollectFieldScaleFactors (VGears::FLevelFilePtr &field, FieldScaleFactorMap &scale_factors, const std::vector< std::string > &field_id_to_name_lookup)
	Collects the scale factor from a map. More...

static void	CollectSpawnPoints (VGears::FLevelFilePtr &field, const std::vector< std::string > &field_id_to_name_lookup, FieldSpawnPointsMap &spawn_points)
	Collects the spawn point from a field. More...

Private Attributes
std::string	input_dir_
	The path to the directory from which to read the PC game data. More...

std::string	output_dir_
	The path to the directory where to save the V-Gears data. More...

size_t	conversion_step_
	Helper variable to indicate internal progress of installation steps. More...

size_t	progress_step_num_elements_
	Helper variable to indicate internal progress of installation steps. More...

size_t	iterator_counter_
	Iterator counter. More...

std::unique_ptr< ScopedLgp >	fields_lgp_
	LGP archive with field data. More...

std::unique_ptr< ScopedLgp >	textures_lgp_
	LGP archive with texture data. More...

std::unique_ptr< ScopedLgp >	field_models_lgp_
	LGP archive with field model data. More...

Ogre::StringVectorPtr	flevel_file_list_
	List of flevel files. More...

std::vector< std::string >	map_list_
	The list of maps. More...

FieldSpawnPointsMap	spawn_points_
	Map of the collected spawn points. More...

FieldScaleFactorMap	scale_factors_
	Map of th collected scale factors. More...

ModelsAndAnimationsDb	used_models_and_anims_
	ModelsAndAnimationsUsedByConvertedFields. More...

MapList	converted_map_list_
	List of converted maps. More...

MapList::iterator	converted_map_list_iterator_
	Iterator for {. More...

VGears::FLevelFilePtr	field_
	Field currently being processed. More...

Ogre::StringVectorPtr	field_model_file_list_
	List of model files. More...

std::unique_ptr< TiXmlDocument >	doc_
	An XML document. More...

std::unique_ptr< TiXmlElement >	element_
	An XML element. More...

ModelAnimationMap::iterator	model_animation_map_iterator_
	Iterator for {. More...

std::function< void(std::string)>	write_output_line_
	Function used to print text to the log output, line by line. More...

std::function< void(std::string)>	set_progress_label_
	Function used to print set the current installation progress text. More...

FieldTextWriter	field_text_writer_
	Field text writer. More...

std::vector< std::string >	materials_
	Written materials. More...

Static Private Attributes
static float	LINE_SCALE_FACTOR
	The scale factor for line point coordinates. More...

static std::string	FIELD_MODELS_DIR
	Path to the field models directory. More...

static std::string	FIELD_MAPS_DIR
	Path to the field maps directory. More...

static int	INACTIVE_GATEWAY_ID
	Gateways to this map ID are considered to be inactive. More...

Constructor & Destructor Documentation

◆ FieldDataInstaller()

FieldDataInstaller::FieldDataInstaller	(	const std::string	input_dir,
		const std::string	output_dir
	)

Installer constructor.

Parameters

[in]	input_dir	Path to the directory containing the original data to parse.
[in]	output_dir	Path to the directory to write generated data to.

◆ ~FieldDataInstaller()

FieldDataInstaller::~FieldDataInstaller ( )

Installer destructor.

Member Function Documentation

◆ CollectFieldScaleFactors()

void FieldDataInstaller::CollectFieldScaleFactors	(	VGears::FLevelFilePtr &	field,
		FieldScaleFactorMap &	scale_factors,
		const std::vector< std::string > &	field_id_to_name_lookup
	)

staticprivate

Collects the scale factor from a map.

Parameters

[in]	field	The field to collect from.
[out]	scale_factors	The scale factor for the map will be set here, in the appropiate map entry.
[in]	field_id_to_name_lookup	Lookup table to relate field IDs and names.

◆ CollectSpawnAndScaleFactors()

void FieldDataInstaller::CollectSpawnAndScaleFactors ( int field_index )

Reads spawn points and scale factors from flevel files.

Installation step 2.

Parameters

[in] field_index Index of the field to collect from. Must be less than the value returned by {

See also: CollectSpawnAndScaleFactorsInit}.

◆ CollectSpawnAndScaleFactorsInit()

int FieldDataInstaller::CollectSpawnAndScaleFactorsInit ( Ogre::ResourceGroupManager * res_mgr )

Initializer for {.

See also: CollectionFieldSpawnAndScaleFactors}.

Installation step 1.

Parameters

[in] res_mgr The application resource manager.

Returns: The total number of level files to process.

◆ CollectSpawnPoints()

void FieldDataInstaller::CollectSpawnPoints	(	VGears::FLevelFilePtr &	field,
		const std::vector< std::string > &	field_id_to_name_lookup,
		FieldSpawnPointsMap &	spawn_points
	)

staticprivate

Collects the spawn point from a field.

If a spawn is new, a new record will be added to the spawn point database. If it was already there, update the record to add the origin.

Parameters

[in]	field	The field to collect from.
[in]	field_id_to_name_lookup	Lookup table to relate field IDs and names.
[out]	spawn_points	Spawn points will be added sequentially to the end of this map.

◆ Convert()

void FieldDataInstaller::Convert ( int field_index )

Converts FFVII PC fields to V-Gears format.

Parameters

[in] field_index Index of the field to collect from. Must be less than the value returned by {

See also: CollectSpawnAndScaleFactorsInit}.

◆ ConvertModels()

void FieldDataInstaller::ConvertModels ( std::string model_name )

Converts the field models to V-Gears format.

Installation step 7 and final.

Parameters

[in] model_name Name of the model to convert.

◆ ConvertModelsInit()

std::vector< std::string > FieldDataInstaller::ConvertModelsInit ( )

Initializer for {.

See also: ConvertFieldModelsIteration}.

Installation step 6.

Returns: List of names of models to convert.

◆ CreateDir()

void FieldDataInstaller::CreateDir ( const std::string & dir )

private

Creates a directory in the outputh path.

Parameters

[in] dir Path of the directory to create, relative to the output path..

Exceptions

std::runtime_error If the directory can't be created.

◆ CreateGateWayScript()

std::string FieldDataInstaller::CreateGateWayScript	(	const std::string &	gateway_entity_name,
		const std::string &	target_map_name,
		const std::string &	source_spawn_point_name
	)

staticprivate

Creates a gateway script.

Parameters

[in]	gateway_entity_name	Name of the gateway entity.
[in]	target_map_name	Name of the target map.
[in]	source_spawn_point_name	The spawn point name.

Returns: Gateway LUA script.

◆ ExportMesh()

void FieldDataInstaller::ExportMesh	(	const std::string	outdir,
		const Ogre::MeshPtr &	mesh
	)

private

Exports a mesh to a file.

The file will have the mesh name.

Parameters

[in]	outdir	Path to the directory where the file will be saved.
[in]	mesh	The mesh to export.

◆ ExtractMusicTrackIds()

std::vector< int > FieldDataInstaller::ExtractMusicTrackIds ( VGears::FLevelFilePtr & field )

private

Reads the music track IDs from a specific field.

Parameters

[in] field The field to extract tracks from.

Returns: The list of tracks. It can be empty.

◆ GetFieldId()

size_t FieldDataInstaller::GetFieldId	(	const std::string &	name,
		const std::vector< std::string > &	field_id_to_name_lookup
	)

staticprivate

Retrieves a field ID from a name.

Parameters

[in]	name	The name of the field.
[in]	field_id_to_name_lookup	Lookup table to use.

Returns: The field ID for the specified name.

Exceptions

std::runtime_error If there is no ID for the field name.

◆ GetFieldScaleFactor()

float FieldDataInstaller::GetFieldScaleFactor ( size_t field_id )

private

Retrieves a field scale factor.

Parameters

[in] field_id The id (name) of the field.

Returns: The scale factor for the map.

Exceptions

std::runtime_error If there is no ID for the field name.

◆ IsAFieldFile()

bool FieldDataInstaller::IsAFieldFile ( const Ogre::String & resource_name )

staticprivate

Checks if a file is a field file.

To verify it, it just checks that the extension is not '.tex', '.tut' or '.siz' and that the name is not 'maplist'.

Parameters

[in] resource_name The name of the file to test.

Returns: False if the file is surely not a field file, true otherwise.

◆ IsTestField()

bool FieldDataInstaller::IsTestField ( const Ogre::String & resource_name )

staticprivate

Checks if a map is a test field.

It uses a hardcoded list of maps that are known to be test maps. Unused maps are considered to be test maps.

Parameters

[in] resource_name The name of the map file to test.

Returns: True if the map is a test map, false otherwise.

◆ PcFieldToVGearsField()

void FieldDataInstaller::PcFieldToVGearsField ( VGears::FLevelFilePtr & field )

private

Converts a FFVII PC field to a V-Gears field.

Parameters

[in] field The field map to convert.

◆ WillCrash()

bool FieldDataInstaller::WillCrash ( const Ogre::String & resource_name )

staticprivate

Checks if a map cause fatal crash bugs.

It uses a hardcoded list of maps that are known to cause errors. This can be removed when whatever is causing the crash(s) is fixed.

NOTE: Even so, conversion of all models will fail with a bone index out of bounds.

Parameters

[in] resource_name The name of the map file to test.

Returns: True if the map will crash, false otherwise.

◆ Write()

void FieldDataInstaller::Write ( int field_index )

Saves the game maps to XML files.

Installation step 4.

Parameters

[in] field_index Index of the field to collect from. Must be less than the value returned by {

See also: WriteInit}.

◆ WriteEnd()

void FieldDataInstaller::WriteEnd ( )

Cleans up after {.

See also: WriteMapsXmlIteration}.

Installation step 5.

◆ WriteInit()

int FieldDataInstaller::WriteInit ( )

Initializer for {.

See also: WriteMapsXmlIteration}.

Installation step 3.

Returns: The number of converted maps that need to be written.

Member Data Documentation

◆ conversion_step_

size_t FieldDataInstaller::conversion_step_

private

Helper variable to indicate internal progress of installation steps.

◆ converted_map_list_

MapList FieldDataInstaller::converted_map_list_

private

List of converted maps.

◆ converted_map_list_iterator_

MapList::iterator FieldDataInstaller::converted_map_list_iterator_

private

Iterator for {.

See also: converted_map_list}.

◆ doc_

std::unique_ptr<TiXmlDocument> FieldDataInstaller::doc_

private

An XML document.

Internally used during some installation steps.

◆ element_

std::unique_ptr<TiXmlElement> FieldDataInstaller::element_

private

An XML element.

Internally used during some installation steps.

◆ field_

VGears::FLevelFilePtr FieldDataInstaller::field_

private

Field currently being processed.

◆ FIELD_MAPS_DIR

std::string FieldDataInstaller::FIELD_MAPS_DIR

staticprivate

Path to the field maps directory.

◆ field_model_file_list_

Ogre::StringVectorPtr FieldDataInstaller::field_model_file_list_

private

List of model files.

◆ FIELD_MODELS_DIR

std::string FieldDataInstaller::FIELD_MODELS_DIR

staticprivate

Path to the field models directory.

◆ field_models_lgp_

std::unique_ptr<ScopedLgp> FieldDataInstaller::field_models_lgp_

private

LGP archive with field model data.

◆ field_text_writer_

FieldTextWriter FieldDataInstaller::field_text_writer_

private

Field text writer.

◆ fields_lgp_

std::unique_ptr<ScopedLgp> FieldDataInstaller::fields_lgp_

private

LGP archive with field data.

◆ flevel_file_list_

Ogre::StringVectorPtr FieldDataInstaller::flevel_file_list_

private

List of flevel files.

◆ INACTIVE_GATEWAY_ID

int FieldDataInstaller::INACTIVE_GATEWAY_ID

staticprivate

Gateways to this map ID are considered to be inactive.

◆ input_dir_

std::string FieldDataInstaller::input_dir_

private

The path to the directory from which to read the PC game data.

◆ iterator_counter_

size_t FieldDataInstaller::iterator_counter_

private

Iterator counter.

◆ LINE_SCALE_FACTOR

float FieldDataInstaller::LINE_SCALE_FACTOR

staticprivate

The scale factor for line point coordinates.

When a LINE opcode is found in the game scripts, the line points X and Y coordinates must be scaled down by this factor.

◆ map_list_

std::vector<std::string> FieldDataInstaller::map_list_

private

The list of maps.

◆ materials_

std::vector<std::string> FieldDataInstaller::materials_

private

Written materials.

◆ model_animation_map_iterator_

ModelAnimationMap::iterator FieldDataInstaller::model_animation_map_iterator_

private

Iterator for {.

See also: used_models_and_anims_}.

◆ output_dir_

std::string FieldDataInstaller::output_dir_

private

The path to the directory where to save the V-Gears data.

◆ progress_step_num_elements_

size_t FieldDataInstaller::progress_step_num_elements_

private

Helper variable to indicate internal progress of installation steps.

◆ scale_factors_

FieldScaleFactorMap FieldDataInstaller::scale_factors_

private

Map of th collected scale factors.

◆ set_progress_label_

std::function<void(std::string)> FieldDataInstaller::set_progress_label_

private

Function used to print set the current installation progress text.

◆ spawn_points_

FieldSpawnPointsMap FieldDataInstaller::spawn_points_

private

Map of the collected spawn points.

◆ textures_lgp_

std::unique_ptr<ScopedLgp> FieldDataInstaller::textures_lgp_

private

LGP archive with texture data.

◆ used_models_and_anims_

ModelsAndAnimationsDb FieldDataInstaller::used_models_and_anims_

private

ModelsAndAnimationsUsedByConvertedFields.

◆ write_output_line_

std::function<void(std::string)> FieldDataInstaller::write_output_line_

private

Function used to print text to the log output, line by line.

The documentation for this class was generated from the following files:

src/installer/FieldDataInstaller.h
src/installer/FieldDataInstaller.cpp

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Constructor & Destructor Documentation

◆ FieldDataInstaller()

◆ ~FieldDataInstaller()

Member Function Documentation

◆ CollectFieldScaleFactors()

◆ CollectSpawnAndScaleFactors()

◆ CollectSpawnAndScaleFactorsInit()

◆ CollectSpawnPoints()

◆ Convert()

◆ ConvertModels()

◆ ConvertModelsInit()

◆ CreateDir()

◆ CreateGateWayScript()

◆ ExportMesh()

◆ ExtractMusicTrackIds()

◆ GetFieldId()

◆ GetFieldScaleFactor()

◆ IsAFieldFile()

◆ IsTestField()

◆ PcFieldToVGearsField()

◆ WillCrash()

◆ Write()

◆ WriteEnd()

◆ WriteInit()

Member Data Documentation

◆ conversion_step_

◆ converted_map_list_

◆ converted_map_list_iterator_

◆ doc_

◆ element_

◆ field_

◆ FIELD_MAPS_DIR

◆ field_model_file_list_

◆ FIELD_MODELS_DIR

◆ field_models_lgp_

◆ field_text_writer_

◆ fields_lgp_

◆ flevel_file_list_

◆ INACTIVE_GATEWAY_ID

◆ input_dir_

◆ iterator_counter_

◆ LINE_SCALE_FACTOR

◆ map_list_

◆ materials_

◆ model_animation_map_iterator_

◆ output_dir_

◆ progress_step_num_elements_

◆ scale_factors_

◆ set_progress_label_

◆ spawn_points_

◆ textures_lgp_

◆ used_models_and_anims_

◆ write_output_line_
