DebugDraw Class Reference

#include <DebugDraw.h>

Inheritance diagram for DebugDraw:

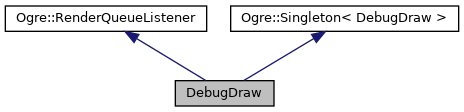

Collaboration diagram for DebugDraw:

Public Types
enum	TextAlignment { LEFT , RIGHT , CENTER }
	Text alignment modes. More...

Public Member Functions
	DebugDraw ()
	Constructor. More...
virtual	~DebugDraw ()
	Destructor. More...
void	SetColour (const Ogre::ColourValue &colour)
	Sets the colour of the element to draw. More...
void	SetScreenSpace (const bool screen_space)
	Sets the screen space. More...
void	SetZ (const float z)
	Set the Z coordinate. More...
void	SetFadeDistance (const float fade_s, const float fade_e)
	Sets the fade distance for text. More...
void	SetTextAlignment (TextAlignment alignment)
void	Line (const float x1, const float y1, const float x2, const float y2)
	Draws a line in 2D space. More...
void	Line3d (const Ogre::Vector3 &point1, const Ogre::Vector3 &point2)
	Draws a line in 3D space. More...
void	Triangle3d (const Ogre::Vector3 &point1, const Ogre::Vector3 &point2, const Ogre::Vector3 &point3)
	Draws a triangle in 3D space. More...
void	Quad (const float x1, const float y1, const float x2, const float y2, const float x3, const float y3, const float x4, const float y4)
	Draws a quad in 2D space. More...
void	Text (const float x, const float y, const Ogre::String &text)
	Writes debug text on the game screen. More...
void	Text (const Ogre::Vector3 &point, const float x, const float y, const Ogre::String &text)
	Writes debug text on the game screen. More...
void	renderQueueEnded (Ogre::uint8 queueGroupId, const Ogre::String &invocation, bool &repeatThisInvocation)
	Ends the render queue. More...

Private Member Functions
void	CreateLineVertexBuffer ()
	Creates a 2D line vertex buffer (2 vertices). More...
void	DestroyLineVertexBuffer ()
	Destroys a 2D line vertex buffer (2 vertices). More...
void	CreateLine3dVertexBuffer ()
	Creates a 3D line vertex buffer (2 vertices). More...
void	DestroyLine3dVertexBuffer ()
	Destroys a 3D line vertex buffer (2 vertices). More...
void	CreateTriangle3dVertexBuffer ()
	Creates a 3D triangle vertex buffer (3 vertices). More...
void	DestroyTriangle3dVertexBuffer ()
	Destroys a 3D triangle vertex buffer (3 vertices). More...
void	CreateQuadVertexBuffer ()
	Creates a quad vertex buffer (4 vertices). More...
void	DestroyQuadVertexBuffer ()
	Destroys a quad vertex buffer (4 vertices). More...
void	CreateTextVertexBuffer ()
	Creates a text vertex buffer. More...
void	DestroyTextVertexBuffer ()
	Destroys a text vertex buffer. More...

Private Attributes
Ogre::SceneManager *	scene_manager_
	The scene manager. More...
Ogre::RenderSystem *	render_system_
	The render system. More...
Ogre::RenderOperation	line_render_operation_
	A 2D line render operation. More...
Ogre::HardwareVertexBufferSharedPtr	line_vertex_buffer_
	A 2D line vertex buffer (2 vertices). More...
unsigned int	line_max_vertex_
	Maximum number of vertices for debug 2D lines. More...
Ogre::RenderOperation	line_3d_render_operation_
	A 3D line render operation. More...
Ogre::HardwareVertexBufferSharedPtr	line_3d_vertex_buffer_
	A 3D line vertex buffer (2 vertices). More...
unsigned int	line_3d_max_vertex_
	Maximum number of vertices for debug 3D lines. More...
Ogre::RenderOperation	triangle_3d_render_operation_
	A 3D triangle render operation. More...
Ogre::HardwareVertexBufferSharedPtr	triangle_3d_vertex_buffer_
	A 3D triangle vertex buffer (3 vertices). More...
unsigned int	triangle_3d_max_vertex_
	Maximum number of vertices for debug 3D triangles. More...
Ogre::RenderOperation	quad_render_operation_
	A quad render operation. More...
Ogre::HardwareVertexBufferSharedPtr	quad_vertex_buffer_
	A quad vertex buffer (4 vertices). More...
unsigned int	quad_max_vertex_
	Maximum number of vertices for debug quads. More...
Ogre::RenderOperation	text_render_operation_
	A text render operation. More...
Ogre::HardwareVertexBufferSharedPtr	text_vertex_buffer_
	A text vertex buffer. More...
unsigned int	text_max_vertex_
	Maximum number of vertices for debug text. More...
Ogre::FontPtr	font_
	Font to use for debug text. More...
int	font_height_
	Font height for the debug text. More...
TextAlignment	text_alignment_
	Alignment for debug text. More...
Ogre::MaterialPtr	material_
	Material for a 2D object. More...
Ogre::MaterialPtr	material_3d_
	Material for a 3D object. More...
Ogre::ColourValue	colour_
	Color for the debug object or text. More...
bool	screen_space_
	The screen space. More...
float	z_coordinate_
	Z coordinate for the debug object. More...
float	fade_start_square_
	For text fading. More...
float	fade_end_square_
	For text fading. More...

Member Enumeration Documentation

TextAlignment

enum DebugDraw::TextAlignment

Text alignment modes.

Enumerator
LEFT	Left aligned text.
RIGHT	Right aligned text.
CENTER	Center aligned text.

Constructor & Destructor Documentation

DebugDraw()

DebugDraw::DebugDraw

(

)

Constructor.

~DebugDraw()

DebugDraw::~DebugDraw ( )

virtual

Destructor.

Member Function Documentation

CreateLine3dVertexBuffer()

void DebugDraw::CreateLine3dVertexBuffer ( )

private

Creates a 3D line vertex buffer (2 vertices).

CreateLineVertexBuffer()

void DebugDraw::CreateLineVertexBuffer ( )

private

Creates a 2D line vertex buffer (2 vertices).

CreateQuadVertexBuffer()

void DebugDraw::CreateQuadVertexBuffer ( )

private

Creates a quad vertex buffer (4 vertices).

CreateTextVertexBuffer()

void DebugDraw::CreateTextVertexBuffer ( )

private

Creates a text vertex buffer.

CreateTriangle3dVertexBuffer()

void DebugDraw::CreateTriangle3dVertexBuffer ( )

private

Creates a 3D triangle vertex buffer (3 vertices).

DestroyLine3dVertexBuffer()

void DebugDraw::DestroyLine3dVertexBuffer ( )

private

Destroys a 3D line vertex buffer (2 vertices).

DestroyLineVertexBuffer()

void DebugDraw::DestroyLineVertexBuffer ( )

private

Destroys a 2D line vertex buffer (2 vertices).

DestroyQuadVertexBuffer()

void DebugDraw::DestroyQuadVertexBuffer ( )

private

Destroys a quad vertex buffer (4 vertices).

DestroyTextVertexBuffer()

void DebugDraw::DestroyTextVertexBuffer ( )

private

Destroys a text vertex buffer.

DestroyTriangle3dVertexBuffer()

void DebugDraw::DestroyTriangle3dVertexBuffer ( )

private

Destroys a 3D triangle vertex buffer (3 vertices).

Line()

void DebugDraw::Line	(	const float	x1,
		const float	y1,
		const float	x2,
		const float	y2
	)

Draws a line in 2D space.

If the debug vertex limit has been reached or if it would be exceeded by drawing the line, a warning message will be printed and nothing will be done.

Parameters

[in]	x1	X coordinate of the starting point.
[in]	y1	Y coordinate of the starting point.
[in]	x2	X coordinate of the ending point.
[in]	y2	Y coordinate of the ending point.

Line3d()

void DebugDraw::Line3d	(	const Ogre::Vector3 &	point1,
		const Ogre::Vector3 &	point2
	)

Draws a line in 3D space.

If the debug vertex limit has been reached or if it would be exceeded by drawing the line, a warning message will be printed and nothing will be done.

Parameters

[in]	point1	Starting point.
[in]	point2	Ending point.

Quad()

void DebugDraw::Quad	(	const float	x1,
		const float	y1,
		const float	x2,
		const float	y2,
		const float	x3,
		const float	y3,
		const float	x4,
		const float	y4
	)

Draws a quad in 2D space.

If the debug vertex limit has been reached or if it would be exceeded by drawing the quad, a warning message will be printed and nothing will be done.

Parameters

[in]	x1	X coordinate of the first point.
[in]	y1	Y coordinate of the first point.
[in]	x2	X coordinate of the second point.
[in]	y2	Y coordinate of the second point.
[in]	x3	X coordinate of the third point.
[in]	y3	Y coordinate of the third point.
[in]	x4	X coordinate of the fourth point.
[in]	y4	Y coordinate of the fourth point.

renderQueueEnded()

void DebugDraw::renderQueueEnded	(	Ogre::uint8	queueGroupId,
		const Ogre::String &	invocation,
		bool &	repeatThisInvocation
	)

Ends the render queue.

Parameters

[in]	queueGroupId	The group id of the queue to end.
[in]	invocation
[in]	repeatThisInvocation

Todo:

Understand and document.

SetColour()

void DebugDraw::SetColour

(

const Ogre::ColourValue &

colour

)

Sets the colour of the element to draw.

Parameters

[in]

colour

The color to apply.

SetFadeDistance()

void DebugDraw::SetFadeDistance	(	const float	fade_s,
		const float	fade_e
	)

Sets the fade distance for text.

Parameters

[in]	fade_s	The text starts fading at this distance.
[in]	fade_e	The text has faded completely at this distance.

SetScreenSpace()

void DebugDraw::SetScreenSpace

(

const bool

screen_space

)

Sets the screen space.

Parameters

[in]

screen_space

The screen space.

Todo:

Understand and document properly.

SetTextAlignment()

void DebugDraw::SetTextAlignment

(

TextAlignment

alignment

)

SetZ()

void DebugDraw::SetZ

(

const float

z

)

Set the Z coordinate.

Parameters

[in]

z

The Z coordinate.

Text() [1/2]

void DebugDraw::Text	(	const float	x,
		const float	y,
		const Ogre::String &	text
	)

Writes debug text on the game screen.

The text won't be warped automatically. If the maximum number of debug letters has been written, or if it would be exceeded by writing, a warning message will be printed to console and nothing will be done.

Parameters

[in]	x	Left position of the text in the screen.
[in]	y	Left position of the text in the screen.
[in]	text	The text to write.

Text() [2/2]

void DebugDraw::Text	(	const Ogre::Vector3 &	point,
		const float	x,
		const float	y,
		const Ogre::String &	text
	)

Writes debug text on the game screen.

The text will be warped automatically. If the maximum number of debug letters has been written, or if it would be exceeded by writing, a warning message will be printed to console and nothing will be done.

Parameters

[in]	point	Top left point of the screen where the text will be written.
[in]	x	Text width.
[in]	y	Text height.
[in]	text	The text to write.

Triangle3d()

void DebugDraw::Triangle3d	(	const Ogre::Vector3 &	point1,
		const Ogre::Vector3 &	point2,
		const Ogre::Vector3 &	point3
	)

Draws a triangle in 3D space.

If the debug vertex limit has been reached or if it would be exceeded by drawing the triangle, a warning message will be printed and nothing will be done.

Parameters

[in]	point1	A triangle vertex point.
[in]	point2	A triangle vertex point.
[in]	point3	A triangle vertex point.

Member Data Documentation

colour_

Ogre::ColourValue DebugDraw::colour_

private

Color for the debug object or text.

fade_end_square_

float DebugDraw::fade_end_square_

private

For text fading.

The text fully fades at this distance.

fade_start_square_

float DebugDraw::fade_start_square_

private

For text fading.

The text start fading from this distance.

font_

Ogre::FontPtr DebugDraw::font_

private

Font to use for debug text.

font_height_

int DebugDraw::font_height_

private

Font height for the debug text.

line_3d_max_vertex_

unsigned int DebugDraw::line_3d_max_vertex_

private

Maximum number of vertices for debug 3D lines.

line_3d_render_operation_

Ogre::RenderOperation DebugDraw::line_3d_render_operation_

private

A 3D line render operation.

line_3d_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr DebugDraw::line_3d_vertex_buffer_

private

A 3D line vertex buffer (2 vertices).

line_max_vertex_

unsigned int DebugDraw::line_max_vertex_

private

Maximum number of vertices for debug 2D lines.

line_render_operation_

Ogre::RenderOperation DebugDraw::line_render_operation_

private

A 2D line render operation.

line_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr DebugDraw::line_vertex_buffer_

private

A 2D line vertex buffer (2 vertices).

material_

Ogre::MaterialPtr DebugDraw::material_

private

Material for a 2D object.

material_3d_

Ogre::MaterialPtr DebugDraw::material_3d_

private

Material for a 3D object.

quad_max_vertex_

unsigned int DebugDraw::quad_max_vertex_

private

Maximum number of vertices for debug quads.

quad_render_operation_

Ogre::RenderOperation DebugDraw::quad_render_operation_

private

A quad render operation.

quad_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr DebugDraw::quad_vertex_buffer_

private

A quad vertex buffer (4 vertices).

render_system_

Ogre::RenderSystem* DebugDraw::render_system_

private

The render system.

scene_manager_

Ogre::SceneManager* DebugDraw::scene_manager_

private

The scene manager.

screen_space_

bool DebugDraw::screen_space_

private

The screen space.

text_alignment_

TextAlignment DebugDraw::text_alignment_

private

Alignment for debug text.

text_max_vertex_

unsigned int DebugDraw::text_max_vertex_

private

Maximum number of vertices for debug text.

Todo:

Confirm if it's 6 vertices per letter.

text_render_operation_

Ogre::RenderOperation DebugDraw::text_render_operation_

private

A text render operation.

text_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr DebugDraw::text_vertex_buffer_

private

A text vertex buffer.

Todo:

Confirm if it's 6 vertices per letter.

triangle_3d_max_vertex_

unsigned int DebugDraw::triangle_3d_max_vertex_

private

Maximum number of vertices for debug 3D triangles.

triangle_3d_render_operation_

Ogre::RenderOperation DebugDraw::triangle_3d_render_operation_

private

A 3D triangle render operation.

triangle_3d_vertex_buffer_

Ogre::HardwareVertexBufferSharedPtr DebugDraw::triangle_3d_vertex_buffer_

private

A 3D triangle vertex buffer (3 vertices).

z_coordinate_

float DebugDraw::z_coordinate_

private

Z coordinate for the debug object.

---

The documentation for this class was generated from the following files:

• src/core/DebugDraw.h
• src/core/DebugDraw.cpp
