Represents a compiled animations file. More...

#include <DaFile.h>

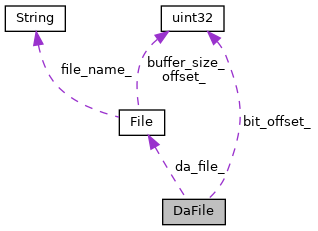

Collaboration diagram for DaFile:

[legend]

Classes
struct	Animation

struct	Frame
	Information for a frame. More...

struct	TriValue
	A three-coordinate value. More...

Public Member Functions
	DaFile (File file)
	Constructor. More...

std::vector< std::string >	GenerateAFiles (std::string model_id, std::string path)
	Generates .a files from the da file. More...

Private Member Functions
void	Read ()
	Reads the Da file and extracts all the data. More...

Animation	ReadAnimation ()
	Reads an animation from the *da file. More...

Frame	ReadFirstFrame (u32 bones, u8 key)
	Reads the first, uncompressed frame. More...

Frame	ReadFrame (u32 bones, u8 key, Frame prev)
	Reads a compressed frame. More...

int	GetDynamicOffsetFromStream ()
	Retrieves a positional offset value of dynamic size from the file. More...

int	GetBitsU (int bits)
	Read an arbitrary number of bits from the da contents as unsigned. More...

int	GetBitsS (int bits)
	Read an arbitrary number of bits from the da contents as signed. More...

int	GetCompressedDeltaFromStream (int lowered_precision_bits)
	Decodes a delta rotation read from the stream. More...

Static Private Member Functions
static int	ExtendSignInteger (int val, int len)
	Extends the sign for an integer value for a specified bit length. More...

static int	GetSignExtendedShort (int val, int len)
	Extends the sign for a short value for a specified bit length. More...

Private Attributes
File	da_file_
	The da file. More...

u8 *	da_bytes_
	Contents of the da file as a byte array. More...

std::vector< Animation >	animations_
	List of animations. More...

u32	bit_offset_
	Number of bits already read from the da file. More...

Static Private Attributes
static const float	OFFSET_SCALE = 0.0070312473867f
	Scale for bone offsets. More...

Detailed Description

Represents a compiled animations file.

Da files are bundled into battle.lgp. They contain information about a skeleton animation. They are heavily compressed, and involve a lot of bit reading to decompile.

Constructor & Destructor Documentation

◆ DaFile()

DaFile::DaFile ( File file )

Constructor.

Reads the file.

Parameters

[in,out] file The file to read from. The file contents will not be altered, but it's offset will be changed while reading it.

Member Function Documentation

◆ ExtendSignInteger()

int DaFile::ExtendSignInteger	(	int	val,
		int	len
	)

staticprivate

Extends the sign for an integer value for a specified bit length.

Parameters

[in]	val	The value to extend.
[in]	len	Number of bytes to extend the value to.

Returns: The signed integer.

◆ GenerateAFiles()

std::vector< std::string > DaFile::GenerateAFiles	(	std::string	model_id,
		std::string	path
	)

Generates .a files from the da file.

A file will be generated for each animation in the da file. See {

See also: VGearsAFile.h} for more info about .a files. Files will be created in the specified path, and will be named like the model id, followed by an underscore, followed a two-digit animation index (starting from 0) followed by the ".a extension". For example, if path is "/home/user/.v-gears", the model id is "ac", and the da file contains three animations, the following files will be generated: "/home/user/.v-gears/ac_00.a", "/home/user/.v-gears/ac_01.a" and "/home/user/.v-gears/ac_02.a".

Parameters

[in]	model_id	ID of the model the animation belongs to, usually a two letter code. Used to generate the file name.
[in]	path	Path to the directory where the files will be saved.

Returns: A list of the generated files. They include the path and the extension.

◆ GetBitsS()

int DaFile::GetBitsS ( int bits )

private

Read an arbitrary number of bits from the da contents as signed.

Bits will be read from {

See also: bit_offset_}.

Parameters

[in] bits Number of bits.

Returns: Signed value.

◆ GetBitsU()

int DaFile::GetBitsU ( int bits )

private

Read an arbitrary number of bits from the da contents as unsigned.

Bits will be read from {

See also: bit_offset_}.

Parameters

[in] bits Number of bits.

Returns: Unsigned value.

◆ GetCompressedDeltaFromStream()

int DaFile::GetCompressedDeltaFromStream ( int lowered_precision_bits )

private

Decodes a delta rotation read from the stream.

Requires {

See also: bit_offset_} to indicate the bit at which the delta begins

Parameters

lowered_precision_bits How many bits to sift the read value. The animation key.

Returns: The decoded value.

◆ GetDynamicOffsetFromStream()

int DaFile::GetDynamicOffsetFromStream ( )

private

Retrieves a positional offset value of dynamic size from the file.

Requires {

See also: bit_offset_} to indicate the bit at which the frame begins. The first read bit will determine the length of the read data. If it's 1, 7 more bits of data will be read and returned. It it isn't, 16 more bits of data will be read and returned. In total, either 17 or 8 bits of data will be read.

Returns: The read value.

◆ GetSignExtendedShort()

int DaFile::GetSignExtendedShort	(	int	val,
		int	len
	)

staticprivate

Extends the sign for a short value for a specified bit length.

Parameters

[in]	val	The value to extend.
[in]	len	Number of bytes to extend the value to.

Returns: The signed integer.

◆ Read()

void DaFile::Read ( )

private

Reads the Da file and extracts all the data.

◆ ReadAnimation()

DaFile::Animation DaFile::ReadAnimation ( )

private

Reads an animation from the *da file.

Requires {

See also: bit_offset_} to indicate the bit at which the animation begins.

If the read animation is invalid (i.e. with a size less than 11 bytes), the {

See also: Animation.frame_count} will be 0 and the rest of the data in the animation is not to be trusted, and the animation should not be used.

Returns: The animation read.

◆ ReadFirstFrame()

DaFile::Frame DaFile::ReadFirstFrame	(	u32	bones,
		u8	key
	)

private

Reads the first, uncompressed frame.

Requires {

See also: bit_offset_} to indicate the bit at which the frame begins.

Parameters

[in]	bones	The number of bones involved in the animation.
[in]	key	Key for decoding the animation (fifth byte in the animation second header).

Returns: The first frame.

◆ ReadFrame()

DaFile::Frame DaFile::ReadFrame	(	u32	bones,
		u8	key,
		Frame	prev
	)

private

Reads a compressed frame.

Requires {

See also: bit_offset_} to indicate the bit at which the frame begins.

Parameters

[in]	bones	The number of bones involved in the animation.
[in]	key	Key for decoding the animation (fifth byte in the animation second header).
[in]	prev	Previous frame.

Returns: The first frame.

Member Data Documentation

◆ animations_

std::vector<Animation> DaFile::animations_

private

List of animations.

◆ bit_offset_

u32 DaFile::bit_offset_

private

Number of bits already read from the da file.

◆ da_bytes_

u8* DaFile::da_bytes_

private

Contents of the da file as a byte array.

◆ da_file_

File DaFile::da_file_

private

The da file.

◆ OFFSET_SCALE

const float DaFile::OFFSET_SCALE = 0.0070312473867f

staticprivate

Scale for bone offsets.

The documentation for this class was generated from the following files:

src/installer/data/DaFile.h
src/installer/data/DaFile.cpp
