The battle manager. More...

#include <BattleManager.h>

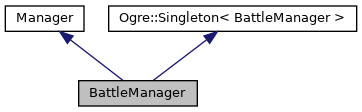

Inheritance diagram for BattleManager:

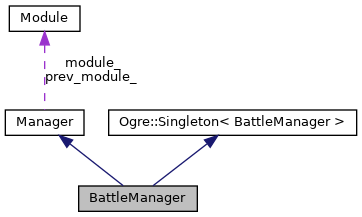

Collaboration diagram for BattleManager:

[legend]

Classes
struct	BattleCamera
	A battle camera settings. More...

struct	Spoil
	Item earned during the battle. More...

Public Types
enum	LAYOUT { NORMAL = 0 , PREEMPTIVE = 1 , BACK_ATTACK = 2 , SIDE_ATTACK = 3 , PINCER_ATTACK = 4 , SOLO = 5 , UNKNOWN_0 = 6 , UNKNOWN_1 = 7 , LOCKED = 8 }
	Possible battle layouts. More...

Public Types inherited from Manager
enum	Module { FIELD = 0 , BATTLE = 1 , WORLD = 2 }
	The modules the entity manager can handle. More...

Public Member Functions
	BattleManager ()
	Constructor. More...

virtual	~BattleManager ()
	Destructor. More...

void	Input (const VGears::Event &event) override
	Handles an input event. More...

void	UpdateDebug () override
	Updates the battle in the manager with debug information. More...

void	OnResize () override
	Handles resizing events. More...

void	ClearField () override
	Clears all field information in the battle manager. More...

void	ClearBattle () override
	Clears all battle information in the battle manager. More...

void	ClearWorld () override
	Clears all world map information in the battle manager. More...

void	StartBattle (const unsigned int id)
	Starts a battle. More...

void	EndBattle ()
	Ends the current battle. More...

std::vector< Enemy >	GetEnemies () const
	Retrieves the list of enemies. More...

void	AddEnemy (const unsigned int id, const Ogre::Vector3 pos, const bool front, const bool visible, const bool targeteable, const bool active, const std::string cover)
	Adds an enemy to the manager for the next battle. More...

unsigned int	ScriptGetEnemyCount () const
	Retrieves the number of enemies in the battle. More...

Enemy *	ScriptGetEnemy (const unsigned int index)
	Retrieves an enemy. More...

void	Load ()
	Loads enemy info from the enemy XML enemy file. More...

void	SetLayout (const LAYOUT layout)
	Sets the battle layout. More...

void	SetFormationId (const int id)
	Sets the battle formation ID. More...

void	SetNextFormationId (const int id)
	Sets the battle formation ID for the next battle, if any. More...

void	SetEscapeability (const float difficulty)
	Sets escaping data for the battle. More...

void	SetSkipVictoryPose (const bool skip)
	Sets the battle to show or skip the victory pose. More...

void	SetSkipSpoils (const bool skip)
	Sets the battle to show or skip the spoils screens. More...

void	SetLocation (const int id, const Ogre::String name)
	Sets the battle location. More...

void	SetArenaBattle (const bool arena)
	Indicates if the battle is an arena battle. More...

void	SetInitialCamera (const unsigned int id)
	Sets the initial camera. More...

void	AddCamera (const unsigned int id, const Ogre::Vector3 pos, const Ogre::Vector3 dir)
	Adds a camera for the next battle. More...

Public Member Functions inherited from Manager
	Manager ()
	Constructor. More...

virtual	~Manager ()
	Destructor. More...

Module	GetModule () const
	Retrieves the currently selected module. More...

bool	IsModule (const Module module) const
	Checks the currently selected module. More...

bool	IsFieldModule () const
	Checks if the currently selected module is the field module. More...

bool	IsBattleModule () const
	Checks if the currently selected module is the battle module. More...

bool	IsWorldModule () const
	Checks if the currently selected module is the world module. More...

void	SetModule (const Module module)
	Sets the current module for the entity manager. More...

void	SetFieldModule ()
	Sets the current module to the field mode. More...

void	SetBattleModule ()
	Sets the current module to the battle mode. More...

void	SetWorldModule ()
	Sets the current module to the world map mode. More...

void	SetPreviousModule ()
	Sets the module that was loaded before a battle. More...

virtual void	Input (const VGears::Event &event)=0
	Handles an input event. More...

void	Update ()
	Called every frame, performs an update on the things controlled by the manager. More...

virtual void	UpdateDebug ()=0
	Called every frame, performs an update on the things controlled by the manager. More...

virtual void	OnResize ()=0
	Handles resizing events. More...

void	Clear ()
	Clears the manager. More...

void	Clear (const Module module)
	Clears the manager. More...

virtual void	ClearField ()=0
	Clear all field information in the manager. More...

virtual void	ClearBattle ()=0
	Clear all battle information in the manager. More...

virtual void	ClearWorld ()=0
	Clear all world map information in the manager. More...

void	ClearAll ()
	Clears the manager. More...

void	ScriptSetPaused (const bool paused)
	Handles game pausing. More...

Private Member Functions
void	LoadParty ()
	Loads the party members into the battle. More...

void	UpdateField () override
	Updates the manager while in the field. More...

void	UpdateBattle () override
	Updates the manager during a battle. More...

void	UpdateWorld () override
	Updates manager while in the world map. More...

Private Attributes
Ogre::SceneNode *	scene_node_
	The scene node. More...

int	formation_id_
	The current battle formation ID. More...

int	next_formation_id_
	The battle formation ID for the next battle, if any. More...

std::vector< BattleCamera >	camera_

unsigned int	initial_camera_
	Default camera ID. More...

LAYOUT	layout_
	Battle layout. More...

float	escape_difficulty_
	Difficulty to escape the battle. More...

bool	arena_battle_
	Indicates if the current battle is an arena one. More...

bool	show_victory_pose_
	Indicates if the victory pose must be shown at the battle end. More...

bool	show_spoils_
	Indicates if the spoils screens must be shown at the battle end. More...

bool	preemptive_
	Indicates if the battle can be preemptive (not if it will definitely be). More...

unsigned int	money_
	Money earned during the current battle. More...

std::vector< Spoil >	spoil_
	List of items earned during the battle. More...

std::vector< Enemy >	enemies_
	List of enemies for the battle. More...

std::vector< XmlBattleCharactersFile::BattleCharacter >	character_model_map_
	Map of playable character models. More...

std::vector< XmlBattleScenesFile::BattleScene >	scene_model_map_
	Map of battle scene models. More...

Static Private Attributes
static const float	ENEMY_SCALE = 0.0032f
	Scale factor for battle enemy models. More...

static const float	PARTY_SCALE = 0.0039f
	Scale factor for battle character models. More...

static const float	SCENE_SCALE = 0.0012f
	Scale factor for battle background models. More...

Additional Inherited Members
Protected Member Functions inherited from Manager
virtual void	UpdateField ()=0
	Updates the field entities in the manager. More...

virtual void	UpdateBattle ()=0
	Updates the battle entities in the manager. More...

virtual void	UpdateWorld ()=0
	Updates the world map entities in the manager. More...

void	Update (Module module)
	Updates the entities of one module in the manager. More...

Protected Attributes inherited from Manager
Module	module_
	The currently selected module. More...

Module	prev_module_
	The previous module. More...

bool	paused_
	Indicates if the game is paused. More...

Detailed Description

The battle manager.

Member Enumeration Documentation

◆ LAYOUT

enum BattleManager::LAYOUT

Possible battle layouts.

Enumerator
NORMAL	Normal battle. Party facing enemies, all ATBs filled at random, they start filling at the battle start.
PREEMPTIVE	Preemptive attack. Enemies are facing backwards, their ATBs start empty and only start to fill after an attack or after a set amount of time. PArty starts with full ATBs.
BACK_ATTACK	Party attacked from the back. Party members are facing backwards, with their rows reversed. Their ATBs are empty and only start to fill after an attack or after a set amount of time. Enemies start with full ATBs.
SIDE_ATTACK	Party surrounds the enemy. Party members alternated on both sides of the battle. They are considered front row for offense and back row for defense. Their ATBs start full. Party-targeted commands only target one side. Enemies in the middle, facing in a random direction. Their ATBs start with a random amount. When attacked, an enemy turns to the attacker.
PINCER_ATTACK	Enemies surrounds the party. Enemies alternated on both sides of the battle. They are considered front row for offense and back row for defense. Their ATBs start full. Multiple-targeted commands only target one side. Party members in the middle, facing in a random direction. Their ATBs start with a random amount. When attacked, they turn to the attacker.
SOLO	Reserved for scripted battles with only one character. Works the same as { See also NORMAL}. In the original game, it's used for the Yuffie pagoda battles and Cloud's last battle against sephiroth
UNKNOWN_0	Unknown. Never used in the original game.
UNKNOWN_1	Unknown. Never used in the original game.
LOCKED	Locked formation. Same as { See also NORMAL}, but every party member and enemy is forced in the front row, and the "Change" command is disabled.

Constructor & Destructor Documentation

◆ BattleManager()

BattleManager::BattleManager ( )

Constructor.

◆ ~BattleManager()

BattleManager::~BattleManager ( )

virtual

Destructor.

Member Function Documentation

◆ AddCamera()

void BattleManager::AddCamera	(	const unsigned int	id,
		const Ogre::Vector3	pos,
		const Ogre::Vector3	dir
	)

Adds a camera for the next battle.

Parameters

[in]	id	Camera ID.
[in]	pos	Camera position (x, y, z).
[in]	dir	Camera orientation (a point the camera will point to).

◆ AddEnemy()

void BattleManager::AddEnemy	(	const unsigned int	id,
		const Ogre::Vector3	pos,
		const bool	front,
		const bool	visible,
		const bool	targeteable,
		const bool	active,
		const std::string	cover
	)

Adds an enemy to the manager for the next battle.

Parameters

[in]	id	Enemy ID.
[in]	pos	Enemy position (x, y, z).
[in]	front	True to set the enemy in the front row, false for back row.
[in]	visible	Indicates enemy visibility.
[in]	targeteable	Indicates if the enemy can be targeted.
[in]	active	Indicates whether the enemy main script is active or not.
[in]	cover	Cover binary flags string.

◆ ClearBattle()

void BattleManager::ClearBattle ( )

overridevirtual

Clears all battle information in the battle manager.

Implements Manager.

◆ ClearField()

void BattleManager::ClearField ( )

overridevirtual

Clears all field information in the battle manager.

Does nothing.

Implements Manager.

◆ ClearWorld()

void BattleManager::ClearWorld ( )

overridevirtual

Clears all world map information in the battle manager.

Implements Manager.

◆ EndBattle()

void BattleManager::EndBattle ( )

Ends the current battle.

◆ GetEnemies()

std::vector< Enemy > BattleManager::GetEnemies ( ) const

Retrieves the list of enemies.

Returns: The list of enemies.

◆ Input()

void BattleManager::Input ( const VGears::Event & event )

overridevirtual

Handles an input event.

Parameters

[in] event Event to handle.

Implements Manager.

◆ Load()

void BattleManager::Load ( )

Loads enemy info from the enemy XML enemy file.

◆ LoadParty()

void BattleManager::LoadParty ( )

private

Loads the party members into the battle.

◆ OnResize()

void BattleManager::OnResize ( )

overridevirtual

Handles resizing events.

Implements Manager.

◆ ScriptGetEnemy()

Enemy * BattleManager::ScriptGetEnemy ( const unsigned int index )

Retrieves an enemy.

To be called from Lua scripts.

Parameters

[in] index The enemy index, 0 based. must be lower than reported by {

See also: ScriptGetEnemyCount}.

Returns: The enemy at the selected indes, nullptr if it doesn't exists.

◆ ScriptGetEnemyCount()

unsigned int BattleManager::ScriptGetEnemyCount ( ) const

Retrieves the number of enemies in the battle.

To be called from Lua scripts.

Returns: The number of enemies in the battle formation.

◆ SetArenaBattle()

void BattleManager::SetArenaBattle ( const bool arena )

Indicates if the battle is an arena battle.

Parameters

[in] arena True for arena battles, false for every other battles.

◆ SetEscapeability()

void BattleManager::SetEscapeability ( const float difficulty )

Sets escaping data for the battle.

Parameters

[in] difficulty Values between 0 and 1 (exclusive) set the escaping difficulty from easy to hard. 0 Means the battle can be escaped instantly. Any other value means the battle can't be escaped from.

◆ SetFormationId()

void BattleManager::SetFormationId ( const int id )

Sets the battle formation ID.

Parameters

[in] id Battle formation ID. Negative values to clean the manager.

◆ SetInitialCamera()

void BattleManager::SetInitialCamera ( const unsigned int id )

Sets the initial camera.

Can be set before configuring the camera, but if the battle starts and this index is invalid, it's undefined behavior.

Parameters

[in] id ID of the initial camera.

◆ SetLayout()

void BattleManager::SetLayout ( const LAYOUT layout )

Sets the battle layout.

Parameters

[in] layout The battle layout. {

See also: LAYOUT}. When one of the unknowns is specified, the normal will be applied.

◆ SetLocation()

void BattleManager::SetLocation	(	const int	id,
		const Ogre::String	name
	)

Sets the battle location.

Parameters

[in]	id	Location ID.
[in]	name	Location name, for debug purposes only. Can be empty or null.

◆ SetNextFormationId()

void BattleManager::SetNextFormationId ( const int id )

Sets the battle formation ID for the next battle, if any.

If set, a new battle will happen when this one is over, instead of returning to the field.

Parameters

[in] id Next battle formation ID. Negative values if none.

◆ SetSkipSpoils()

void BattleManager::SetSkipSpoils ( const bool skip )

Sets the battle to show or skip the spoils screens.

◆ SetSkipVictoryPose()

void BattleManager::SetSkipVictoryPose ( const bool skip )

Sets the battle to show or skip the victory pose.

◆ StartBattle()

void BattleManager::StartBattle ( const unsigned int id )

Starts a battle.

Parameters

id	Battle ID.

◆ UpdateBattle()

void BattleManager::UpdateBattle ( )

overrideprivatevirtual

Updates the manager during a battle.

Implements Manager.

◆ UpdateDebug()

void BattleManager::UpdateDebug ( )

overridevirtual

Updates the battle in the manager with debug information.

It's automatically called from {

See also: Update}.

Implements Manager.

◆ UpdateField()

void BattleManager::UpdateField ( )

overrideprivatevirtual

Updates the manager while in the field.

It does nothing

Implements Manager.

◆ UpdateWorld()

void BattleManager::UpdateWorld ( )

overrideprivatevirtual

Updates manager while in the world map.

It does nothing

Implements Manager.

Member Data Documentation

◆ arena_battle_

bool BattleManager::arena_battle_

private

Indicates if the current battle is an arena one.

◆ camera_

std::vector<BattleCamera> BattleManager::camera_

private

◆ character_model_map_

std::vector<XmlBattleCharactersFile::BattleCharacter> BattleManager::character_model_map_

private

Map of playable character models.

◆ enemies_

std::vector<Enemy> BattleManager::enemies_

private

List of enemies for the battle.

◆ ENEMY_SCALE

const float BattleManager::ENEMY_SCALE = 0.0032f

staticprivate

Scale factor for battle enemy models.

◆ escape_difficulty_

float BattleManager::escape_difficulty_

private

Difficulty to escape the battle.

◆ formation_id_

int BattleManager::formation_id_

private

The current battle formation ID.

◆ initial_camera_

unsigned int BattleManager::initial_camera_

private

Default camera ID.

◆ layout_

LAYOUT BattleManager::layout_

private

Battle layout.

◆ money_

unsigned int BattleManager::money_

private

Money earned during the current battle.

◆ next_formation_id_

int BattleManager::next_formation_id_

private

The battle formation ID for the next battle, if any.

◆ PARTY_SCALE

const float BattleManager::PARTY_SCALE = 0.0039f

staticprivate

Scale factor for battle character models.

◆ preemptive_

bool BattleManager::preemptive_

private

Indicates if the battle can be preemptive (not if it will definitely be).

◆ scene_model_map_

std::vector<XmlBattleScenesFile::BattleScene> BattleManager::scene_model_map_

private

Map of battle scene models.

◆ scene_node_

Ogre::SceneNode* BattleManager::scene_node_

private

The scene node.

◆ SCENE_SCALE

const float BattleManager::SCENE_SCALE = 0.0012f

staticprivate

Scale factor for battle background models.

◆ show_spoils_

bool BattleManager::show_spoils_

private

Indicates if the spoils screens must be shown at the battle end.

◆ show_victory_pose_

bool BattleManager::show_victory_pose_

private

Indicates if the victory pose must be shown at the battle end.

◆ spoil_

std::vector<Spoil> BattleManager::spoil_

private

List of items earned during the battle.

The documentation for this class was generated from the following files:

src/core/BattleManager.h
src/core/BattleManager.cpp

Classes

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LAYOUT

Constructor & Destructor Documentation

◆ BattleManager()

◆ ~BattleManager()

Member Function Documentation

◆ AddCamera()

◆ AddEnemy()

◆ ClearBattle()

◆ ClearField()

◆ ClearWorld()

◆ EndBattle()

◆ GetEnemies()

◆ Input()

◆ Load()

◆ LoadParty()

◆ OnResize()

◆ ScriptGetEnemy()

◆ ScriptGetEnemyCount()

◆ SetArenaBattle()

◆ SetEscapeability()

◆ SetFormationId()

◆ SetInitialCamera()

◆ SetLayout()

◆ SetLocation()

◆ SetNextFormationId()

◆ SetSkipSpoils()

◆ SetSkipVictoryPose()

◆ StartBattle()

◆ UpdateBattle()

◆ UpdateDebug()

◆ UpdateField()

◆ UpdateWorld()

Member Data Documentation

◆ arena_battle_

◆ camera_

◆ character_model_map_

◆ enemies_

◆ ENEMY_SCALE

◆ escape_difficulty_

◆ formation_id_

◆ initial_camera_

◆ layout_

◆ money_

◆ next_formation_id_

◆ PARTY_SCALE

◆ preemptive_

◆ scene_model_map_

◆ scene_node_

◆ SCENE_SCALE

◆ show_spoils_

◆ show_victory_pose_

◆ spoil_
