Any entity in a field. More...

#include <Entity.h>

Inheritance diagram for Entity:

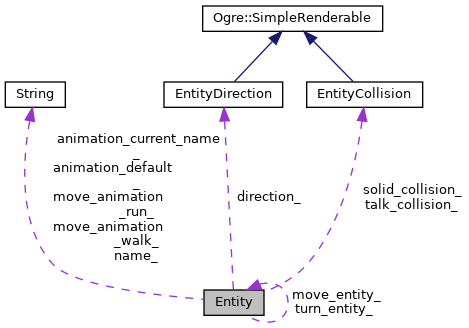

Collaboration diagram for Entity:

[legend]

Public Types
enum	AnimationState { REQUESTED_ANIMATION , AUTO_ANIMATION }
	Entity animation states. More...

enum	AnimationPlayType { PLAY_DEFAULT , PLAY_ONCE , PLAY_LOOPED }
	Types of animations. More...

enum	State { NONE , WALKMESH , LINEAR , JUMP , NEEDS_TO_REATTACH }
	Entity state. More...

Public Member Functions
	Entity (const Ogre::String &name, Ogre::SceneNode *node)
	Constructor. More...

virtual	~Entity ()
	Destructor. More...

virtual void	Update ()
	Updates the entity status. More...

virtual void	UpdateDebug ()
	Updates the entity status with debug information. More...

const Ogre::String &	GetName () const
	Retrieves the entity name. More...

void	SetPosition (const Ogre::Vector3 &position)
	Sets the entity position. More...

void	ScriptSetPosition (const float x, const float y, const float z)
	Sets the entity position. More...

const Ogre::Vector3	GetPosition () const
	Retrieves the entity position. More...

void	ScriptGetPosition () const
	Retrieves the entity position. More...

void	SetOffset (const Ogre::Vector3 &position)
	Sets the entity position. More...

const Ogre::Vector3	GetOffset () const
	Retrieves the entity position. More...

void	SetRotation (const Ogre::Degree &rotation)
	Sets the entity rotation. More...

void	ScriptSetRotation (const float rotation)
	Sets the entity rotation. More...

Ogre::Degree	GetRotation () const
	Retrieves the entity rotation. More...

float	ScriptGetRotation () const
	Retrieves the entity rotation. More...

virtual void	setScale (const Ogre::Vector3 &scale)
	Sets the entity scale. More...

void	SetIndex (const int index)
	Sets the entity index in the field. More...

int	GetIndex ()
	Retrieves the entity index in the field. More...

virtual void	setRootOrientation (const Ogre::Quaternion &root_orientation)
	Sets the entity's absolute orientation. More...

float	GetHeight () const
	Retrieves the entity's height. More...

void	SetSolidRadius (const float radius)
	Sets the entity's solid radius. More...

float	GetSolidRadius () const
	Retrieves the entity's solid radius. More...

void	SetSolid (const bool solid)
	Makes the entity solid or non-solid. More...

bool	IsSolid () const
	Checks if the entity is solid. More...

void	SetTalkRadius (const float radius)
	Sets the entity talk radius. More...

float	GetTalkRadius () const
	Retrieves the entity talk radius. More...

void	SetTalkable (const bool talkable)
	Sets an entity as talkable or non-talkable. More...

bool	IsTalkable () const
	Checks if an entity is talkable or non-talkable. More...

virtual void	SetVisible (const bool visible)=0
	Makes the entity visible or invisible. More...

virtual bool	IsVisible () const =0
	Checks if the entity is visible or invisible. More...

void	SetState (const State state)
	Sets the entity's state. More...

State	GetState () const
	Retrieves the entity's state. More...

void	SetMoveAutoSpeed (const float speed)
	Sets the entity's automatic movement speed. More...

float	GetMoveAutoSpeed () const
	Retrieves the entity's automatic movement speed. More...

void	SetMoveWalkSpeed (const float speed)
	Sets the entity's walking movement speed. More...

float	GetMoveWalkSpeed () const
	Retrieves the entity's walking speed. More...

void	SetMoveRunSpeed (const float speed)
	Sets the entity's running movement speed. More...

float	GetMoveRunSpeed () const
	Retrieves the entity's running speed. More...

void	SetMovePosition (const Ogre::Vector3 &target)
	Sets the entity's movement destination position. More...

const Ogre::Vector3 &	GetMovePosition () const
	Retrieves the entity's movement destination position. More...

float	GetMoveStopDistance () const
	Retrieves the distance to destination. More...

void	SetMoveTriangleId (const int triangle)
	Sets the destination triangle in the walkmesh. More...

int	GetMoveTriangleId () const
	Sets the destination triangle in the walkmesh. More...

void	SetMoveAutoRotation (const bool rotate)
	Enables or disables autorotation while the entity is moving. More...

bool	GetMoveAutoRotation () const
	Checks if the unit can autorotate while it's moving. More...

void	SetMoveAutoAnimation (const bool animate)
	Enables or disables autoanimation while the entity is moving. More...

bool	GetMoveAutoAnimation () const
	Checks if the unit can autoanimate while it's moving. More...

const Ogre::String &	GetMoveAnimationWalkName () const
	Retrieves the entity's walk animation name. More...

const Ogre::String &	GetMoveAnimationRunName () const
	Retrieves the entity's run animation name. More...

void	ScriptMoveToPosition (const float x, const float y)
	Makes the entity move to a point in the map. More...

void	ScriptMoveToEntity (Entity *entity)
	Makes the unit move towards another in the map. More...

int	ScriptMoveSync ()
	Waits for entity's movement to end. More...

int	ScriptJumpSync ()
	Waits for the jump to finish. More...

void	UnsetMove ()
	Cancels the entity's current movement. More...

void	ScriptLinearToPosition (const float x, const float y, const float z, const LinearMovement movement, const char *animation, const float orientation, const int dest_triangle)
	Linearly moves the entity. More...

int	ScriptLinearSync ()
	Adds the unit linear movement to the sync queue. More...

void	SetLinear (const Ogre::Vector3 &end, const LinearMovement movement, const Ogre::String &animation, const float orientation, const int dest_triangle)
	Linearly moves the entity. More...

void	UnsetLinear ()
	Cancels the entity's current linear movement. More...

LinearMovement	GetLinearMovement () const
	Retrieves the entity's current linear movement. More...

const Ogre::Vector3 &	GetLinearStart () const
	Retrieves the starting point of the current linear movement. More...

const Ogre::Vector3 &	GetLinearEnd () const
	Retrieves the ending point of the current linear movement. More...

const int	GetLinearDestTriangle () const
	Retrieves the ending triangle of the current linear movement. More...

void	ScriptJumpToPosition (const float x, const float y, const float z, const float seconds, const int dest_triangle)
	Makes the unit jump to a point in the field. More...

void	SetJump (const Ogre::Vector3 &jump_to, const float seconds, const int dest_triangle)
	Makes the unit jump to a point in the field. More...

void	UnsetJump ()
	Cancels the entity's current jump. More...

const Ogre::Vector3 &	GetJumpStart () const
	Retrieves the starting point of the current jump. More...

const Ogre::Vector3 &	GetJumpEnd () const
	Retrieves the ending point of the current jump. More...

float	GetJumpSeconds () const
	Gets the total duration of the jump. More...

void	SetJumpCurrentSeconds (const float seconds)
	Sets the current duration of the jump. More...

float	GetJumpCurrentSeconds () const
	Gets the current duration of the jump. More...

const int	GetJumpDestTriangle () const
	Retrieves the ending triangle of the current jump. More...

void	ScriptOffsetToPosition (const float x, const float y, const float z, const ActionType type, const float seconds)

int	ScriptOffsetSync ()

void	UnsetOffset ()

const Ogre::Vector3 &	GetOffsetPositionStart () const

const Ogre::Vector3 &	GetOffsetPositionEnd () const

ActionType	GetOffsetType () const

float	GetOffsetSeconds () const

void	SetOffsetCurrentSeconds (const float seconds)

float	GetOffsetCurrentSeconds () const

void	ScriptTurnToDirection (const float direction, const TurnDirection turn_direction, const ActionType turn_type, const float seconds)
	Makes the entity turn to a fixed direction. More...

void	ScriptTurnToEntity (Entity *entity, const TurnDirection turn_direction, const float seconds)
	Makes the entity turn towards another entity. More...

int	ScriptTurnSync ()
	Adds the entity's turn to the sync queue. More...

void	SetTurn (const Ogre::Degree &direction_to, Entity *entity, const TurnDirection turn_direction, const ActionType turn_type, const float seconds)
	Makes the entity turn towards a point or another entity. More...

void	UnsetTurn ()
	Cancels the entity's current jump. More...

Ogre::Degree	CalculateTurnAngle (const Ogre::Degree &start, const Ogre::Degree &end) const
	Calculates the turn angle. More...

Ogre::Degree	GetTurnDirectionStart () const
	Retrieves the turn staring orientation. More...

Ogre::Degree	GetTurnDirectionEnd () const
	Retrieves the turn ending orientation. More...

ActionType	GetTurnType () const
	Retrieves the turn type. More...

float	GetTurnSeconds () const
	Retrieves the turn total duration. More...

void	SetTurnCurrentSeconds (const float seconds)
	Sets the turn current duration. More...

float	GetTurnCurrentSeconds () const
	Retrieves the turn current duration. More...

void	ScriptSetAnimationSpeed (const float speed)
	Sets the animation speed. More...

const Ogre::String &	GetDefaultAnimationName () const
	Retrieves the entity's default animation name. More...

const Ogre::String &	GetCurrentAnimationName () const
	Retrieves the entity's current animation name. More...

AnimationState	GetAnimationState () const
	Retrieves the entity's current animation state. More...

virtual void	PlayAnimation (const Ogre::String &animation, AnimationState state, AnimationPlayType play_type, const float start, const float end)=0
	Plays one of the entity's animations. More...

virtual void	PlayAnimationContinue (const Ogre::String &animation)=0
	Resumes an animation. More...

virtual void	UpdateAnimation (const float delta)=0
	Updates the animation state. More...

void	ScriptPlayAnimation (const char *name)
	Plays one of the entity's animations. More...

void	ScriptPlayAnimationStop (const char *name)
	Stops one of the entity's animations. More...

void	ScriptPlayAnimation (const char *name, const float start, const float end)
	Plays one of the entity's animations. More...

void	ScriptPlayAnimationStop (const char *name, const float start, const float end)
	Stops one of the entity's animations. More...

void	ScriptSetDefaultAnimation (const char *animation)
	Sets the default animation of the entity. More...

int	ScriptAnimationSync ()
	Adds the entity's animation to the sync queue. More...

void	SetCharacter (int char_id)
	Assigns the entity as a character. More...

bool	IsCharacter ()
	Checks if the entity is a character. More...

int	GetCharacterId ()
	Retrieves the entity's character ID. More...

bool	IsLine ()
	Checks if the entity is a line. More...

Protected Attributes
Ogre::String	name_
	The name of the entity. More...

Ogre::SceneNode *	scene_node_
	The scene node the entity is attached to. More...

Ogre::SceneNode *	model_node_
	The entity's model. More...

Ogre::SceneNode *	model_root_node_
	The entity's root node. More...

float	height_
	The entity's height. More...

Ogre::SceneNode *	direction_node_
	The entity's direction node. More...

EntityDirection *	direction_
	The entity's direction. More...

Ogre::SceneNode *	solid_collision_node_
	The entity's collision node. More...

EntityCollision *	solid_collision_
	The entity's collision. More...

float	solid_radius_
	The entity's solid radius. More...

bool	solid_
	Indicates it the entity is solid and can handle collisions. More...

Ogre::SceneNode *	talk_collision_node_
	The entity's talk collision node. More...

EntityCollision *	talk_collision_
	The entity's talk collision. More...

float	talk_radius_
	The radius at which the entity can be interacted with. More...

bool	talkable_
	Indicates if the entity can be interacted with. More...

State	state_
	Entity's movement status. More...

std::vector< ScriptId >	sync_
	Entity's movement sync queue. More...

float	move_auto_speed_
	The entity's automatic movement speed. More...

float	move_walk_speed_
	The entity's walking speed. More...

float	move_run_speed_
	The entity's running speed. More...

Ogre::Vector3	move_position_
	The entity's movement destination point. More...

Entity *	move_entity_
	The entity's movement destination entity. More...

float	move_stop_distance_
	Distance between the entity and it's movement destination point. More...

int	move_triangle_id_
	Entity's movement destination triangle ID. More...

bool	move_auto_rotation_
	Indicates if the entity can rotate while moving. More...

bool	move_auto_animation_
	Indicates if the entity can animate while moving. More...

Ogre::String	move_animation_walk_
	The name of the entity's walk animation. More...

Ogre::String	move_animation_run_
	The name of the entity's run animation. More...

LinearMovement	linear_movement_
	The entity's linear movement direction. More...

Ogre::Vector3	linear_start_
	The linear movement starting point. More...

Ogre::Vector3	linear_end_
	The linear movement ending point. More...

int	linear_dest_triangle_
	Triangle to set the entity on after a linear movement. More...

Ogre::Vector3	jump_start_
	The jump starting point. More...

Ogre::Vector3	jump_end_
	The jump ending point. More...

float	jump_seconds_
	Total jump duration. More...

float	jump_current_seconds_
	Current jump duration. More...

bool	jump_was_solid_
	Used to store solidity status before a jump. More...

int	jump_dest_triangle_
	Triangle to set the entity on after a jump. More...

Ogre::Vector3	offset_position_start_

Ogre::Vector3	offset_position_end_

ActionType	offset_type_

float	offset_seconds_

float	offset_current_seconds_

std::vector< ScriptId >	offset_sync_

TurnDirection	turn_direction_
	Turn movement direction. More...

Ogre::Degree	turn_direction_start_
	Turn initial orientation. More...

Ogre::Degree	turn_direction_end_
	Turn final orientation. More...

Entity *	turn_entity_
	The turn destination entity. More...

ActionType	turn_type_
	The turn type. More...

float	turn_seconds_
	Total turn duration. More...

float	turn_current_seconds_
	Current turn duration. More...

std::vector< ScriptId >	turn_sync_
	Entity's turning sync queue. More...

float	animation_speed_
	The animation speed. More...

Ogre::String	animation_current_name_
	The entity's current animation name. More...

std::vector< ScriptId >	animation_sync_
	Entity's animation sync queue. More...

AnimationState	animation_state_
	The entity's current animation state. More...

AnimationPlayType	animation_play_type_
	The entity's current animation type. More...

Ogre::String	animation_default_
	The name of the entity's default name. More...

float	animation_end_time_

bool	animation_auto_play_
	Indicates if an automation must be played automatically. More...

Private Member Functions
	Entity ()
	Constructor. More...

Ogre::Degree	GetDirectionToEntity (Entity *entity) const
	Calculates the angular distance to an entity. More...

Private Attributes
bool	is_character_
	Indicates if the entity is a playable character. More...

int	character_id_
	The ID of the playable character the entity is, if any. More...

int	index_
	Index of the entity on the field. More...

bool	is_line_
	Indicates if the entity is a line. More...

Detailed Description

Any entity in a field.

Member Enumeration Documentation

◆ AnimationPlayType

enum Entity::AnimationPlayType

Types of animations.

Enumerator

PLAY_DEFAULT

Default animation mode.

Todo:: Same as PLAY_ONCE?

PLAY_ONCE

Play the animation once, then stop.

PLAY_LOOPED

Play an animation in a continous loop.

◆ AnimationState

enum Entity::AnimationState

Entity animation states.

Enumerator
REQUESTED_ANIMATION	An animation has been requested.
AUTO_ANIMATION	An animation is set to play automatically.

◆ State

enum Entity::State

Entity state.

Enumerator
NONE	No state. The entity has not been placed or it has been removed.
WALKMESH	The entity is attached to the walkmesh.
LINEAR	The entity is in the middle of a linear movement.
JUMP	The entity is in the middle of a jump.
NEEDS_TO_REATTACH	The entity has completed an action and needs to be reattached to the walkmesh before continuing execution.

Constructor & Destructor Documentation

◆ Entity() [1/2]

Entity::Entity	(	const Ogre::String &	name,
		Ogre::SceneNode *	node
	)

Constructor.

Parameters

[in]	name	Entity name.
[in]	node	Scene node to which the entity should be attached.

◆ ~Entity()

Entity::~Entity ( )

virtual

Destructor.

◆ Entity() [2/2]

Entity::Entity ( )

private

Constructor.

Member Function Documentation

◆ CalculateTurnAngle()

Ogre::Degree Entity::CalculateTurnAngle	(	const Ogre::Degree &	start,
		const Ogre::Degree &	end
	)		const

Calculates the turn angle.

If the turn direction is {

See also: TD_CLOSEST}, the result is the smallest angle between the two orientations. Otherwise, is the angle in the specified turn direction.

Parameters

[in]	start	Starting angle.
[in]	end	Ending angle.

Returns: [in] Calculated turn angle.

◆ GetAnimationState()

Entity::AnimationState Entity::GetAnimationState ( ) const

Retrieves the entity's current animation state.

Returns: The current animation state.

◆ GetCharacterId()

int Entity::GetCharacterId ( )

Retrieves the entity's character ID.

Returns: The character ID, or a negative value if the entity is not a character.

◆ GetCurrentAnimationName()

const Ogre::String & Entity::GetCurrentAnimationName ( ) const

Retrieves the entity's current animation name.

Returns: The current animation name.

◆ GetDefaultAnimationName()

const Ogre::String & Entity::GetDefaultAnimationName ( ) const

Retrieves the entity's default animation name.

Returns: The default animation name.

◆ GetDirectionToEntity()

Ogre::Degree Entity::GetDirectionToEntity ( Entity * entity ) const

private

Calculates the angular distance to an entity.

Parameters

[in] entity Entity to calculate the angular distance to.

Returns: Angular distance to the specified entity.

◆ GetHeight()

float Entity::GetHeight ( ) const

Retrieves the entity's height.

Returns: The entity's height.

◆ GetIndex()

int Entity::GetIndex ( )

Retrieves the entity index in the field.

Returns: Index of the entity.

◆ GetJumpCurrentSeconds()

float Entity::GetJumpCurrentSeconds ( ) const

Gets the current duration of the jump.

Returns: Jump current duration, in seconds.

◆ GetJumpDestTriangle()

const int Entity::GetJumpDestTriangle ( ) const

Retrieves the ending triangle of the current jump.

Returns: Ending triangle.

◆ GetJumpEnd()

const Ogre::Vector3 & Entity::GetJumpEnd ( ) const

Retrieves the ending point of the current jump.

Returns: Ending point.

◆ GetJumpSeconds()

float Entity::GetJumpSeconds ( ) const

Gets the total duration of the jump.

Returns: Jump total duration, in seconds.

◆ GetJumpStart()

const Ogre::Vector3 & Entity::GetJumpStart ( ) const

Retrieves the starting point of the current jump.

Returns: Starting point.

◆ GetLinearDestTriangle()

const int Entity::GetLinearDestTriangle ( ) const

Retrieves the ending triangle of the current linear movement.

Returns: Ending triangle.

◆ GetLinearEnd()

const Ogre::Vector3 & Entity::GetLinearEnd ( ) const

Retrieves the ending point of the current linear movement.

Returns: Ending point.

◆ GetLinearMovement()

LinearMovement Entity::GetLinearMovement ( ) const

Retrieves the entity's current linear movement.

Returns: Current linear movement.

◆ GetLinearStart()

const Ogre::Vector3 & Entity::GetLinearStart ( ) const

Retrieves the starting point of the current linear movement.

Returns: Starting point.

◆ GetMoveAnimationRunName()

const Ogre::String & Entity::GetMoveAnimationRunName ( ) const

Retrieves the entity's run animation name.

Returns: The run animation name.

◆ GetMoveAnimationWalkName()

const Ogre::String & Entity::GetMoveAnimationWalkName ( ) const

Retrieves the entity's walk animation name.

Returns: The walk animation name.

◆ GetMoveAutoAnimation()

bool Entity::GetMoveAutoAnimation ( ) const

Checks if the unit can autoanimate while it's moving.

Returns: If true, the entity will animate automatically while moving. If false, the entity will not animate.

◆ GetMoveAutoRotation()

bool Entity::GetMoveAutoRotation ( ) const

Checks if the unit can autorotate while it's moving.

Returns: If true, the entity will rotate automatically while moving. If false, the entity will not rotate.

◆ GetMoveAutoSpeed()

float Entity::GetMoveAutoSpeed ( ) const

Retrieves the entity's automatic movement speed.

Returns: Automatic movement speed.

Todo:: Describe where this speed is used, and max and mins or references.

◆ GetMovePosition()

const Ogre::Vector3 & Entity::GetMovePosition ( ) const

Retrieves the entity's movement destination position.

Returns: The destination position.

◆ GetMoveRunSpeed()

float Entity::GetMoveRunSpeed ( ) const

Retrieves the entity's running speed.

Returns: Running speed.

Todo:: Describe where this speed is used, and max and mins or references.

◆ GetMoveStopDistance()

float Entity::GetMoveStopDistance ( ) const

Retrieves the distance to destination.

It's the distance between the entity's current position and it's current movement destination point.

Returns: The distance to destination.

Todo:: Verify this description. Also, indicate units (pixels?).

◆ GetMoveTriangleId()

int Entity::GetMoveTriangleId ( ) const

Sets the destination triangle in the walkmesh.

Returns: Destination triangle in the walkmesh.

◆ GetMoveWalkSpeed()

float Entity::GetMoveWalkSpeed ( ) const

Retrieves the entity's walking speed.

Returns: Walking speed.

Todo:: Describe where this speed is used, and max and mins or references.

◆ GetName()

const Ogre::String & Entity::GetName ( ) const

Retrieves the entity name.

Returns: The entity name.

◆ GetOffset()

const Ogre::Vector3 Entity::GetOffset ( ) const

Retrieves the entity position.

Returns: The entity position.

Todo:: Offset to what?

◆ GetOffsetCurrentSeconds()

float Entity::GetOffsetCurrentSeconds ( ) const

Todo:: Understand and document.

Returns: Action current duration in seconds.

◆ GetOffsetPositionEnd()

const Ogre::Vector3 & Entity::GetOffsetPositionEnd ( ) const

Todo:: Understand and document.

Returns: Ending position.

◆ GetOffsetPositionStart()

const Ogre::Vector3 & Entity::GetOffsetPositionStart ( ) const

Todo:: Understand and document.

Returns: Starting position.

◆ GetOffsetSeconds()

float Entity::GetOffsetSeconds ( ) const

Todo:: Understand and document.

Returns: Action total duration in seconds.

◆ GetOffsetType()

ActionType Entity::GetOffsetType ( ) const

Todo:: Understand and document.

Returns: The action type.

◆ GetPosition()

const Ogre::Vector3 Entity::GetPosition ( ) const

Retrieves the entity position.

Returns: The entity position.

◆ GetRotation()

Ogre::Degree Entity::GetRotation ( ) const

Retrieves the entity rotation.

Returns: The entity rotation, in degrees.

◆ GetSolidRadius()

float Entity::GetSolidRadius ( ) const

Retrieves the entity's solid radius.

The solid radius is used to detect collisions.

Returns: The solid radius.

Todo:: Is it in pixels?

◆ GetState()

Entity::State Entity::GetState ( ) const

Retrieves the entity's state.

Returns: The entity's state.

◆ GetTalkRadius()

float Entity::GetTalkRadius ( ) const

Retrieves the entity talk radius.

The talk radius is the maximum distance at which an entity can be talked to or interacted with.

Returns: The talk radius.

Todo:: Is it in pixels?

◆ GetTurnCurrentSeconds()

float Entity::GetTurnCurrentSeconds ( ) const

Retrieves the turn current duration.

Returns: The turn current duration, in seconds.

◆ GetTurnDirectionEnd()

Ogre::Degree Entity::GetTurnDirectionEnd ( ) const

Retrieves the turn ending orientation.

Returns: The turn ending orientation.

◆ GetTurnDirectionStart()

Ogre::Degree Entity::GetTurnDirectionStart ( ) const

Retrieves the turn staring orientation.

Returns: The turn starting orientation.

◆ GetTurnSeconds()

float Entity::GetTurnSeconds ( ) const

Retrieves the turn total duration.

Returns: The turn total duration, in seconds.

◆ GetTurnType()

ActionType Entity::GetTurnType ( ) const

Retrieves the turn type.

Returns: The turn type.

◆ IsCharacter()

bool Entity::IsCharacter ( )

Checks if the entity is a character.

An entity is not a character until {

See also: SetCharacter} has been called.

Returns: True if the entity is a character, false otherwise.

◆ IsLine()

bool Entity::IsLine ( )

Checks if the entity is a line.

Returns: True if the entity is a line, false otherwise.

◆ IsSolid()

bool Entity::IsSolid ( ) const

Checks if the entity is solid.

Solid entities can produce collisions.

Returns: True if the entity is solid, false otherwise.

◆ IsTalkable()

bool Entity::IsTalkable ( ) const

Checks if an entity is talkable or non-talkable.

Talkable units can be talked to or interacted with.

Returns: True if the entity is talkable, false if it's not.

◆ IsVisible()

virtual bool Entity::IsVisible ( ) const

pure virtual

Checks if the entity is visible or invisible.

Invisible entities can't be interacted with.

Returns: True if the unit is visible, false if it's invisible.

Implemented in EntityModel.

◆ PlayAnimation()

virtual void Entity::PlayAnimation	(	const Ogre::String &	animation,
		AnimationState	state,
		AnimationPlayType	play_type,
		const float	start,
		const float	end
	)

pure virtual

Plays one of the entity's animations.

Parameters

[in]	animation	Name of the animation to play.
[in]	state	The animation initial state.
[in]	play_type	The animation play type, to play it once or in a loop.
[in]	start	Animation starting point in time, in seconds.
[in]	end	Animation ending point in time, in seconds.

Implemented in EntityModel.

◆ PlayAnimationContinue()

virtual void Entity::PlayAnimationContinue ( const Ogre::String & animation )

pure virtual

Resumes an animation.

Parameters

[in] animation Name of the animation to resume.

Implemented in EntityModel.

◆ ScriptAnimationSync()

int Entity::ScriptAnimationSync ( )

Adds the entity's animation to the sync queue.

Returns: Always -1.

Todo:: Properly describe this.

◆ ScriptGetPosition()

void Entity::ScriptGetPosition ( ) const

Retrieves the entity position.

To be used from Lua scripts only. It doesn't return anything, but adds three values to the stack for the X, Y and Z coordinates.

◆ ScriptGetRotation()

float Entity::ScriptGetRotation ( ) const

Retrieves the entity rotation.

Returns: The entity rotation (0-360).

◆ ScriptJumpSync()

int Entity::ScriptJumpSync ( )

Waits for the jump to finish.

Returns: Always -1.

◆ ScriptJumpToPosition()

void Entity::ScriptJumpToPosition	(	const float	x,
		const float	y,
		const float	z,
		const float	seconds,
		const int	dest_triangle
	)

Makes the unit jump to a point in the field.

Parameters

[in]	x	X coordinate of the jump destination point.
[in]	y	Y coordinate of the jump destination point.
[in]	z	Maximum height of the jump.
[in]	seconds	Jump duration.
[in]	dest_triangle	Triangle to place the entity after the jump.

◆ ScriptLinearSync()

int Entity::ScriptLinearSync ( )

Adds the unit linear movement to the sync queue.

Returns: Always -1.

Todo:: Properly describe this.

◆ ScriptLinearToPosition()

void Entity::ScriptLinearToPosition	(	const float	x,
		const float	y,
		const float	z,
		const LinearMovement	movement,
		const char *	animation,
		const float	orientation,
		const int	dest_triangle
	)

Linearly moves the entity.

Parameters

[in]	x	X coordinate of the destination point.
[in]	y	Y coordinate of the destination point.
[in]	z	Z coordinate of the destination point.
[in]	movement	Movement direction.
[in]	animation	Movement animation.
[in]	orientation	Orientation during the animation.
[in]	dest_triangle	Triangle to place the entity after the linear movement.

◆ ScriptMoveSync()

int Entity::ScriptMoveSync ( )

Waits for entity's movement to end.

Returns: Always -1.

◆ ScriptMoveToEntity()

void Entity::ScriptMoveToEntity ( Entity * entity )

Makes the unit move towards another in the map.

Parameters

[in] entity entity to move towards.

◆ ScriptMoveToPosition()

void Entity::ScriptMoveToPosition	(	const float	x,
		const float	y
	)

Makes the entity move to a point in the map.

Parameters

[in]	x	X coordinate of the destination point.
[in]	y	Y coordinate of the destination point.

◆ ScriptOffsetSync()

int Entity::ScriptOffsetSync ( )

Todo:: Understand and document.

Returns: Always -1.

◆ ScriptOffsetToPosition()

void Entity::ScriptOffsetToPosition	(	const float	x,
		const float	y,
		const float	z,
		const ActionType	type,
		const float	seconds
	)

Todo:: Understand and document.

Parameters

[in]	x	X coordinate of the destination point.
[in]	y	Y coordinate of the destination point.
[in]	z	Z coordinate of the destination point.
[in]	type	Type of action.
[in]	seconds	Duration of the action, in seconds.

◆ ScriptPlayAnimation() [1/2]

void Entity::ScriptPlayAnimation ( const char * name )

Plays one of the entity's animations.

Parameters

[in] name Name of the animation to play.

◆ ScriptPlayAnimation() [2/2]

void Entity::ScriptPlayAnimation	(	const char *	name,
		const float	start,
		const float	end
	)

Plays one of the entity's animations.

Parameters

[in]	name	Name of the animation to play.
[in]	start	Animation starting point in time, in seconds.
[in]	end	Animation ending point in time, in seconds.

◆ ScriptPlayAnimationStop() [1/2]

void Entity::ScriptPlayAnimationStop ( const char * name )

Stops one of the entity's animations.

Parameters

[in] name Name of the animation to stop.

◆ ScriptPlayAnimationStop() [2/2]

void Entity::ScriptPlayAnimationStop	(	const char *	name,
		const float	start,
		const float	end
	)

Stops one of the entity's animations.

Parameters

[in]	name	Name of the animation to stop.
[in]	start	Animation starting point in time, in seconds.
[in]	end	Animation ending point in time, in seconds.

◆ ScriptSetAnimationSpeed()

void Entity::ScriptSetAnimationSpeed ( const float speed )

Sets the animation speed.

Parameters

[in] speed The animation speed.

Todo:: Indicate units, max and mins, or references.

◆ ScriptSetDefaultAnimation()

void Entity::ScriptSetDefaultAnimation ( const char * animation )

Sets the default animation of the entity.

Parameters

[in] animation Name of the default animation.

◆ ScriptSetPosition()

void Entity::ScriptSetPosition	(	const float	x,
		const float	y,
		const float	z
	)

Sets the entity position.

It also resets the walkmesh triangle to reattach entity to walkmesh again if needed.

Parameters

[in]	x	Entity's new position X coordinate.
[in]	y	Entity's new position Y coordinate.
[in]	z	Entity's new position Z coordinate.

◆ ScriptSetRotation()

void Entity::ScriptSetRotation ( const float rotation )

Sets the entity rotation.

Parameters

[in] rotation The entity rotation (0-360).

◆ ScriptTurnSync()

int Entity::ScriptTurnSync ( )

Adds the entity's turn to the sync queue.

Returns: Always -1.

Todo:: Properly describe this.

◆ ScriptTurnToDirection()

void Entity::ScriptTurnToDirection	(	const float	direction,
		const TurnDirection	turn_direction,
		const ActionType	turn_type,
		const float	seconds
	)

Makes the entity turn to a fixed direction.

Parameters

[in]	direction	Final direction to turn the entity's to.
[in]	turn_direction	Direction of the turn.
[in]	turn_type	Turn mode.
[in]	seconds	Total turn duration, in seconds.

◆ ScriptTurnToEntity()

void Entity::ScriptTurnToEntity	(	Entity *	entity,
		const TurnDirection	turn_direction,
		const float	seconds
	)

Makes the entity turn towards another entity.

Parameters

[in]	entity	Entity to turn to.
[in]	turn_direction	Direction of the turn.
[in]	seconds	Total turn duration, in seconds.

◆ SetCharacter()

void Entity::SetCharacter ( int char_id )

Assigns the entity as a character.

Marks the entity as a character, and assigns a character name and ID. If the ID is passed as a negative number, the entity will no longer be considered a character.

Parameters

[in] char_id The character name.

◆ SetIndex()

void Entity::SetIndex ( const int index )

Sets the entity index in the field.

Parameters

[in] index Index of the entity.

◆ SetJump()

void Entity::SetJump	(	const Ogre::Vector3 &	jump_to,
		const float	seconds,
		const int	dest_triangle
	)

Makes the unit jump to a point in the field.

Parameters

[in]	jump_to	The jump destination point.
[in]	seconds	Jump duration.
[in]	dest_triangle	Triangle to place the entity after the jump.

◆ SetJumpCurrentSeconds()

void Entity::SetJumpCurrentSeconds ( const float seconds )

Sets the current duration of the jump.

Parameters

[in] seconds Jump current duration, in seconds.

◆ SetLinear()

void Entity::SetLinear	(	const Ogre::Vector3 &	end,
		const LinearMovement	movement,
		const Ogre::String &	animation,
		const float	orientation,
		const int	dest_triangle
	)

Linearly moves the entity.

Parameters

[in]	end	Destination point.
[in]	movement	Movement direction.
[in]	animation	Movement animation.
[in]	orientation	Orientation during the animation.
[in]	dest_triangle	Triangle to place the entity after the linear movement.

◆ SetMoveAutoAnimation()

void Entity::SetMoveAutoAnimation ( const bool animate )

Enables or disables autoanimation while the entity is moving.

Parameters

[in] animate If true, the entity will animate automatically while moving. If false, the entity will not animate.

◆ SetMoveAutoRotation()

void Entity::SetMoveAutoRotation ( const bool rotate )

Enables or disables autorotation while the entity is moving.

Parameters

[in] rotate If true, the entity will rotate automatically while moving. If false, the entity will not rotate.

◆ SetMoveAutoSpeed()

void Entity::SetMoveAutoSpeed ( const float speed )

Sets the entity's automatic movement speed.

Parameters

[in] speed Automatic movement speed.

Todo:: Describe where this speed is used, and max and mins or references.

◆ SetMovePosition()

void Entity::SetMovePosition ( const Ogre::Vector3 & target )

Sets the entity's movement destination position.

Parameters

[in] target The destination position.

◆ SetMoveRunSpeed()

void Entity::SetMoveRunSpeed ( const float speed )

Sets the entity's running movement speed.

Parameters

[in] speed Running speed.

Todo:: Describe where this speed is used, and max and mins or references.

◆ SetMoveTriangleId()

void Entity::SetMoveTriangleId ( const int triangle )

Sets the destination triangle in the walkmesh.

Sets the units destination to one of the walkmesh triangles. The movement will stop once the unit enters the triangle.

Parameters

[in] triangle Destination triangle in the walkmesh.

◆ SetMoveWalkSpeed()

void Entity::SetMoveWalkSpeed ( const float speed )

Sets the entity's walking movement speed.

Parameters

[in] speed Walking speed.

Todo:: Describe where this speed is used, and max and mins or references.

◆ SetOffset()

void Entity::SetOffset ( const Ogre::Vector3 & position )

Sets the entity position.

Parameters

[in] position The entity new position.

Todo:: Offset to what?

◆ SetOffsetCurrentSeconds()

void Entity::SetOffsetCurrentSeconds ( const float seconds )

Todo:: Understand and document.

Parameters

[in] seconds Action current duration in seconds.

◆ SetPosition()

void Entity::SetPosition ( const Ogre::Vector3 & position )

Sets the entity position.

Parameters

[in] position Entity's new position.

◆ setRootOrientation()

void Entity::setRootOrientation ( const Ogre::Quaternion & root_orientation )

virtual

Sets the entity's absolute orientation.

Parameters

[in] root_orientation The entity's new orientation.

◆ SetRotation()

void Entity::SetRotation ( const Ogre::Degree & rotation )

Sets the entity rotation.

Parameters

[in] rotation The entity rotation, in degrees.

◆ setScale()

void Entity::setScale ( const Ogre::Vector3 & scale )

virtual

Sets the entity scale.

Parameters

[in] scale Three dimensional scale.

◆ SetSolid()

void Entity::SetSolid ( const bool solid )

Makes the entity solid or non-solid.

Solid entities can produce collisions.

Parameters

[in] solid True to make the entity solid, false otherwise.

◆ SetSolidRadius()

void Entity::SetSolidRadius ( const float radius )

Sets the entity's solid radius.

The solid radius is used to detect collisions.

Parameters

[in] radius The solid radius.

Todo:: Is it in pixels?

◆ SetState()

void Entity::SetState ( const State state )

Sets the entity's state.

Parameters

[in] state The entity's state.

◆ SetTalkable()

void Entity::SetTalkable ( const bool talkable )

Sets an entity as talkable or non-talkable.

Talkable units can be talked to or interacted with.

Parameters

[in] talkable True to make the entity talkable, false to make it non-talkable.

◆ SetTalkRadius()

void Entity::SetTalkRadius ( const float radius )

Sets the entity talk radius.

The talk radius is the maximum distance at which an entity can be talked to or interacted with.

Parameters

[in] radius The talk radius.

Todo:: Is it in pixels?

◆ SetTurn()

void Entity::SetTurn	(	const Ogre::Degree &	direction_to,
		Entity *	entity,
		const TurnDirection	turn_direction,
		const ActionType	turn_type,
		const float	seconds
	)

Makes the entity turn towards a point or another entity.

Parameters

[in]	direction_to	Final direction to turn the entity's to.
[in]	entity	Entity to turn to.
[in]	turn_direction	Direction of the turn.
[in]	turn_type	Turn mode.
[in]	seconds	Total turn duration, in seconds.

Todo:: What if the point

◆ SetTurnCurrentSeconds()

void Entity::SetTurnCurrentSeconds ( const float seconds )

Sets the turn current duration.

Parameters

[in] seconds The turn current duration, in seconds.

◆ SetVisible()

virtual void Entity::SetVisible ( const bool visible )

pure virtual

Makes the entity visible or invisible.

Invisible entities can't be interacted with.

Parameters

[in] visible True to make the unit visible, false to make it invisible.

Implemented in EntityModel.

◆ UnsetJump()

void Entity::UnsetJump ( )

Cancels the entity's current jump.

It also clears the movement sync queue.

◆ UnsetLinear()

void Entity::UnsetLinear ( )

Cancels the entity's current linear movement.

It also clears the movement sync queue.

◆ UnsetMove()

void Entity::UnsetMove ( )

Cancels the entity's current movement.

It also clears the movement sync queue.

◆ UnsetOffset()

void Entity::UnsetOffset ( )

Todo:: Understand and document.

◆ UnsetTurn()

void Entity::UnsetTurn ( )

Cancels the entity's current jump.

It also clears the movement sync queue.

◆ Update()

void Entity::Update ( )

virtual

Updates the entity status.

Reimplemented in EntityModel.

◆ UpdateAnimation()

virtual void Entity::UpdateAnimation ( const float delta )

pure virtual

Updates the animation state.

Parameters

[in] delta The animation delta.

Implemented in EntityModel.

◆ UpdateDebug()

void Entity::UpdateDebug ( )

virtual

Updates the entity status with debug information.

Member Data Documentation

◆ animation_auto_play_

bool Entity::animation_auto_play_

protected

Indicates if an automation must be played automatically.

◆ animation_current_name_

Ogre::String Entity::animation_current_name_

protected

The entity's current animation name.

◆ animation_default_

Ogre::String Entity::animation_default_

protected

The name of the entity's default name.

◆ animation_end_time_

float Entity::animation_end_time_

protected

Todo:: Understand and document.

◆ animation_play_type_

AnimationPlayType Entity::animation_play_type_

protected

The entity's current animation type.

◆ animation_speed_

float Entity::animation_speed_

protected

The animation speed.

◆ animation_state_

AnimationState Entity::animation_state_

protected

The entity's current animation state.

◆ animation_sync_

std::vector<ScriptId> Entity::animation_sync_

protected

Entity's animation sync queue.

◆ character_id_

int Entity::character_id_

private

The ID of the playable character the entity is, if any.

◆ direction_

EntityDirection* Entity::direction_

protected

The entity's direction.

◆ direction_node_

Ogre::SceneNode* Entity::direction_node_

protected

The entity's direction node.

◆ height_

float Entity::height_

protected

The entity's height.

◆ index_

int Entity::index_

private

Index of the entity on the field.

◆ is_character_

bool Entity::is_character_

private

Indicates if the entity is a playable character.

◆ is_line_

bool Entity::is_line_

private

Indicates if the entity is a line.

◆ jump_current_seconds_

float Entity::jump_current_seconds_

protected

Current jump duration.

◆ jump_dest_triangle_

int Entity::jump_dest_triangle_

protected

Triangle to set the entity on after a jump.

◆ jump_end_

Ogre::Vector3 Entity::jump_end_

protected

The jump ending point.

◆ jump_seconds_

float Entity::jump_seconds_

protected

Total jump duration.

◆ jump_start_

Ogre::Vector3 Entity::jump_start_

protected

The jump starting point.

◆ jump_was_solid_

bool Entity::jump_was_solid_

protected

Used to store solidity status before a jump.

◆ linear_dest_triangle_

int Entity::linear_dest_triangle_

protected

Triangle to set the entity on after a linear movement.

◆ linear_end_

Ogre::Vector3 Entity::linear_end_

protected

The linear movement ending point.

◆ linear_movement_

LinearMovement Entity::linear_movement_

protected

The entity's linear movement direction.

◆ linear_start_

Ogre::Vector3 Entity::linear_start_

protected

The linear movement starting point.

◆ model_node_

Ogre::SceneNode* Entity::model_node_

protected

The entity's model.

◆ model_root_node_

Ogre::SceneNode* Entity::model_root_node_

protected

The entity's root node.

◆ move_animation_run_

Ogre::String Entity::move_animation_run_

protected

The name of the entity's run animation.

◆ move_animation_walk_

Ogre::String Entity::move_animation_walk_

protected

The name of the entity's walk animation.

◆ move_auto_animation_

bool Entity::move_auto_animation_

protected

Indicates if the entity can animate while moving.

◆ move_auto_rotation_

bool Entity::move_auto_rotation_

protected

Indicates if the entity can rotate while moving.

◆ move_auto_speed_

float Entity::move_auto_speed_

protected

The entity's automatic movement speed.

◆ move_entity_

Entity* Entity::move_entity_

protected

The entity's movement destination entity.

◆ move_position_

Ogre::Vector3 Entity::move_position_

protected

The entity's movement destination point.

◆ move_run_speed_

float Entity::move_run_speed_

protected

The entity's running speed.

◆ move_stop_distance_

float Entity::move_stop_distance_

protected

Distance between the entity and it's movement destination point.

◆ move_triangle_id_

int Entity::move_triangle_id_

protected

Entity's movement destination triangle ID.

◆ move_walk_speed_

float Entity::move_walk_speed_

protected

The entity's walking speed.

◆ name_

Ogre::String Entity::name_

protected

The name of the entity.

◆ offset_current_seconds_

float Entity::offset_current_seconds_

protected

Todo:: Understand and document.

◆ offset_position_end_

Ogre::Vector3 Entity::offset_position_end_

protected

Todo:: Understand and document.

◆ offset_position_start_

Ogre::Vector3 Entity::offset_position_start_

protected

Todo:: Understand and document.

◆ offset_seconds_

float Entity::offset_seconds_

protected

Todo:: Understand and document.

◆ offset_sync_

std::vector<ScriptId> Entity::offset_sync_

protected

Todo:: Understand and document.

◆ offset_type_

ActionType Entity::offset_type_

protected

Todo:: Understand and document.

◆ scene_node_

Ogre::SceneNode* Entity::scene_node_

protected

The scene node the entity is attached to.

◆ solid_

bool Entity::solid_

protected

Indicates it the entity is solid and can handle collisions.

◆ solid_collision_

EntityCollision* Entity::solid_collision_

protected

The entity's collision.

◆ solid_collision_node_

Ogre::SceneNode* Entity::solid_collision_node_

protected

The entity's collision node.

◆ solid_radius_

float Entity::solid_radius_

protected

The entity's solid radius.

◆ state_

State Entity::state_

protected

Entity's movement status.

◆ sync_

std::vector<ScriptId> Entity::sync_

protected

Entity's movement sync queue.

◆ talk_collision_

EntityCollision* Entity::talk_collision_

protected

The entity's talk collision.

◆ talk_collision_node_

Ogre::SceneNode* Entity::talk_collision_node_

protected

The entity's talk collision node.

◆ talk_radius_

float Entity::talk_radius_

protected

The radius at which the entity can be interacted with.

◆ talkable_

bool Entity::talkable_

protected

Indicates if the entity can be interacted with.

◆ turn_current_seconds_

float Entity::turn_current_seconds_

protected

Current turn duration.

◆ turn_direction_

TurnDirection Entity::turn_direction_

protected

Turn movement direction.

◆ turn_direction_end_

Ogre::Degree Entity::turn_direction_end_

protected

Turn final orientation.

◆ turn_direction_start_

Ogre::Degree Entity::turn_direction_start_

protected

Turn initial orientation.

◆ turn_entity_

Entity* Entity::turn_entity_

protected

The turn destination entity.

◆ turn_seconds_

float Entity::turn_seconds_

protected

Total turn duration.

◆ turn_sync_

std::vector<ScriptId> Entity::turn_sync_

protected

Entity's turning sync queue.

◆ turn_type_

ActionType Entity::turn_type_

protected

The turn type.

The documentation for this class was generated from the following files:

src/core/Entity.h
src/core/Entity.cpp

Public Types

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ AnimationPlayType

◆ AnimationState

◆ State

Constructor & Destructor Documentation

◆ Entity() [1/2]

◆ ~Entity()

◆ Entity() [2/2]

Member Function Documentation

◆ CalculateTurnAngle()

◆ GetAnimationState()

◆ GetCharacterId()

◆ GetCurrentAnimationName()

◆ GetDefaultAnimationName()

◆ GetDirectionToEntity()

◆ GetHeight()

◆ GetIndex()

◆ GetJumpCurrentSeconds()

◆ GetJumpDestTriangle()

◆ GetJumpEnd()

◆ GetJumpSeconds()

◆ GetJumpStart()

◆ GetLinearDestTriangle()

◆ GetLinearEnd()

◆ GetLinearMovement()

◆ GetLinearStart()

◆ GetMoveAnimationRunName()

◆ GetMoveAnimationWalkName()

◆ GetMoveAutoAnimation()

◆ GetMoveAutoRotation()

◆ GetMoveAutoSpeed()

◆ GetMovePosition()

◆ GetMoveRunSpeed()

◆ GetMoveStopDistance()

◆ GetMoveTriangleId()

◆ GetMoveWalkSpeed()

◆ GetName()

◆ GetOffset()

◆ GetOffsetCurrentSeconds()

◆ GetOffsetPositionEnd()

◆ GetOffsetPositionStart()

◆ GetOffsetSeconds()

◆ GetOffsetType()

◆ GetPosition()

◆ GetRotation()

◆ GetSolidRadius()

◆ GetState()

◆ GetTalkRadius()

◆ GetTurnCurrentSeconds()

◆ GetTurnDirectionEnd()

◆ GetTurnDirectionStart()

◆ GetTurnSeconds()

◆ GetTurnType()

◆ IsCharacter()

◆ IsLine()

◆ IsSolid()

◆ IsTalkable()

◆ IsVisible()

◆ PlayAnimation()

◆ PlayAnimationContinue()

◆ ScriptAnimationSync()

◆ ScriptGetPosition()

◆ ScriptGetRotation()

◆ ScriptJumpSync()

◆ ScriptJumpToPosition()

◆ ScriptLinearSync()

◆ ScriptLinearToPosition()

◆ ScriptMoveSync()

◆ ScriptMoveToEntity()

◆ ScriptMoveToPosition()

◆ ScriptOffsetSync()

◆ ScriptOffsetToPosition()

◆ ScriptPlayAnimation() [1/2]

◆ ScriptPlayAnimation() [2/2]
