#include <TxzFileSerializer.h>

Inheritance diagram for VGears::TxzFileSerializer:

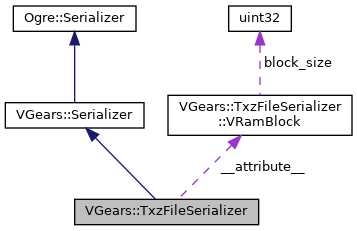

Collaboration diagram for VGears::TxzFileSerializer:

[legend]

Classes
struct	PsxPixel
	A play station pixel representation. More...

struct	PsxPixel4Bit
	Play station pixel representation (4 bits). More...

struct	Rgba
	RGBA colour representation. More...

struct	VRamBlock
	A video RAM block representation. More...

struct	WorldMapTexture

Public Member Functions
struct VGears::TxzFileSerializer::WorldMapTexture	__attribute__ ((packed))

struct VGears::TxzFileSerializer::PsxPixel	__attribute__ ((packed))

struct VGears::TxzFileSerializer::PsxPixel4Bit	__attribute__ ((packed))

struct VGears::TxzFileSerializer::Rgba	__attribute__ ((packed))

	TxzFileSerializer ()
	Constructor. More...

virtual	~TxzFileSerializer ()
	Destructor. More...

void	Import (Ogre::DataStreamPtr &stream, TxzFile &dest)
	Imports a TXZ file. More...

std::vector< std::vector< Rgba > >	GetWorldMapTexture (uint32 id)
	Retrieves a texture color pixels from a texture ID. More...

Public Member Functions inherited from VGears::Serializer
	Serializer ()
	Constructor. More...

virtual	~Serializer ()
	Destructor. More...

Public Attributes
struct VGears::TxzFileSerializer::VRamBlock	__attribute__

Private Member Functions
void	ImportDecompressed (Ogre::DataStream &stream, TxzFile &dest)
	Imports a texture from decompressed file contents. More...

void	ImportTextureSection (Ogre::DataStream &stream, TxzFile &dest, size_t section_end)
	Partially imports a texture from decompressed file contents. More...

void	ExtractTexture (const std::array< WorldMapTexture, 512 > &pallete_table)

Private Attributes
std::vector< VRamBlock >	v_ram_blocks_
	The list of video RAM blocks. More...

std::map< uint32, std::vector< std::vector< Rgba > > >	textures_
	The list of textures. More...

Additional Inherited Members
Protected Member Functions inherited from VGears::Serializer
void	readObject (Ogre::DataStreamPtr &stream, Ogre::Vector2 &dest)
	Reads an object as a 2 dimensional vector. More...

void	readObject (Ogre::DataStreamPtr &stream, Ogre::Vector3 &dest)
	Reads an object as a 3 dimensional vector. More...

void	readObject (Ogre::DataStreamPtr &stream, Ogre::AxisAlignedBox &dest)
	Reads an object as an axis aligned box. More...

void	readObject (Ogre::DataStreamPtr &stream, Pixel &dest)
	Reads an object as a pixel. More...

void	ReadChars (Ogre::DataStreamPtr &stream, char *dest, size_t count)
	Reads a stream as text. More...

void	Read1ByteBool (Ogre::DataStreamPtr &stream, bool &dest)
	Reads one byte from a stream and evaluates it as a boolean. More...

void	Read2ByteBool (Ogre::DataStreamPtr &stream, bool &dest)
	Reads two bytes from a stream and evaluates them as a boolean. More...

void	ReadShort (Ogre::DataStreamPtr &stream, uint16 &dest)
	Reads 16 bytes from a stream and evaluates as an unsigned short. More...

void	ReadInt16 (Ogre::DataStream &stream, sint16 &dest)
	Reads 16 bytes from a stream and evaluates as a signed integer. More...

void	ReadUInt16 (Ogre::DataStream &stream, uint16 &dest)
	Reads 16 bytes from a stream and evaluates as an unsigned int. More...

void	ReadInt16 (Ogre::DataStreamPtr &stream, sint16 &dest)
	Reads 16 bytes from a stream and evaluates as a signed integer. More...

void	ReadUInt16 (Ogre::DataStreamPtr &stream, uint16 &dest)
	Reads 16 bytes from a stream and evaluates as an unsigned int. More...

void	ReadUInt32 (Ogre::DataStreamPtr &stream, uint32 &dest)
	Reads 32 bytes from a stream and evaluates as an unsigned int. More...

void	ReadSInt32 (Ogre::DataStreamPtr &stream, sint32 &dest)
	Reads 32 bytes from a stream and evaluates as a signed int. More...

void	ReadUInt32 (Ogre::DataStream &stream, uint32 &dest)
	Reads 32 bytes from a stream and evaluates as an unsigned int. More...

void	ReadUInt8 (Ogre::DataStream &stream, uint8 &dest)
	Reads 8 bytes from a stream and evaluates as an unsigned int. More...

void	ReadUInt8 (Ogre::DataStreamPtr &stream, uint8 &dest)
	Reads 8 bytes from a stream and evaluates as an unsigned int. More...

void	ReadFloat (Ogre::DataStreamPtr &stream, float &dest)
	Reads bytes from a stream and evaluates them as a float. More...

void	ReadEndString (Ogre::DataStreamPtr &stream, const String &end_text)

String	GetLine (Ogre::DataStreamPtr &stream) const

Static Protected Attributes inherited from VGears::Serializer
static const String	TAG_COMMENT
	A comment tag. More...

Constructor & Destructor Documentation

◆ TxzFileSerializer()

VGears::TxzFileSerializer::TxzFileSerializer ( )

Constructor.

◆ ~TxzFileSerializer()

VGears::TxzFileSerializer::~TxzFileSerializer ( )

virtual

Destructor.

Member Function Documentation

◆ attribute() [1/4]

struct VGears::TxzFileSerializer::WorldMapTexture VGears::TxzFileSerializer::__attribute__ ( (packed) )

◆ attribute() [2/4]

struct VGears::TxzFileSerializer::PsxPixel VGears::TxzFileSerializer::__attribute__ ( (packed) )

◆ attribute() [3/4]

struct VGears::TxzFileSerializer::PsxPixel4Bit VGears::TxzFileSerializer::__attribute__ ( (packed) )

◆ attribute() [4/4]

struct VGears::TxzFileSerializer::Rgba VGears::TxzFileSerializer::__attribute__ ( (packed) )

◆ ExtractTexture()

void VGears::TxzFileSerializer::ExtractTexture ( const std::array< WorldMapTexture, 512 > & pallete_table )

private

Todo:: Understand and document. Where is this implemented?

Parameters

[in] pallete_table

Todo:: .

◆ GetWorldMapTexture()

std::vector< std::vector< TxzFileSerializer::Rgba > > VGears::TxzFileSerializer::GetWorldMapTexture ( uint32 id )

Retrieves a texture color pixels from a texture ID.

Parameters

[in] id ID of the texture.

Returns: List of color pixels conforming the texture, or an empty vector if the texture doesn't exist.

◆ Import()

void VGears::TxzFileSerializer::Import	(	Ogre::DataStreamPtr &	stream,
		TxzFile &	dest
	)

Imports a TXZ file.

◆ ImportDecompressed()

void VGears::TxzFileSerializer::ImportDecompressed	(	Ogre::DataStream &	stream,
		TxzFile &	dest
	)

private

Imports a texture from decompressed file contents.

Parameters

[in]	stream	Contents of the decompressed file.
[out]	dest	The texture data will be loaded here.

◆ ImportTextureSection()

void VGears::TxzFileSerializer::ImportTextureSection	(	Ogre::DataStream &	stream,
		TxzFile &	dest,
		size_t	section_end
	)

private

Partially imports a texture from decompressed file contents.

Parameters

[in]	stream	Contents of the decompressed file.
[out]	dest	The texture data will be loaded here.
[in]	section_end	Bytes to import.

Todo:: Sure it is decompressed?

Member Data Documentation

◆ attribute

struct VGears::TxzFileSerializer::VRamBlock VGears::TxzFileSerializer::__attribute__

◆ textures_

std::map<uint32, std::vector<std::vector<Rgba> > > VGears::TxzFileSerializer::textures_

private

The list of textures.

◆ v_ram_blocks_

std::vector<VRamBlock> VGears::TxzFileSerializer::v_ram_blocks_

private

The list of video RAM blocks.

The documentation for this class was generated from the following files:

src/data/worldmap/TxzFileSerializer.h
src/data/worldmap/TxzFileSerializer.cpp
