The data installer. More...

#include <DataInstaller.h>

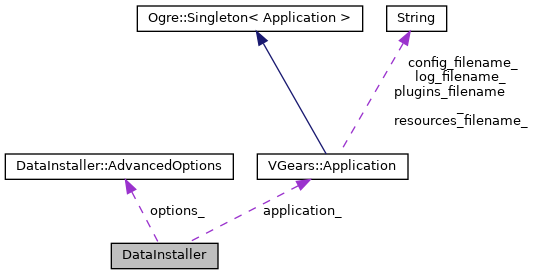

Collaboration diagram for DataInstaller:

[legend]

Classes
struct	AdvancedOptions
	Advanced options available in the installer. More...

Public Member Functions
	DataInstaller (const std::string input_dir, const std::string output_dir, AdvancedOptions options, std::function< void(std::string, int, bool)> write_output_line)
	Installer constructor. More...

	~DataInstaller ()
	Installer destructor. More...

float	Progress ()
	Handle the installation progress. More...

Static Public Attributes
static float	LINE_SCALE_FACTOR = 0.0078124970964f
	The scale factor for line point coordinates. More...

Private Types
enum	InstallationSteps { IDLE = 0 , CREATE_DIRECTORIES , INITIALIZE , BATTLE_SCENES_INIT , BATTLE_SCENES_PROCESS , BATTLE_SCENES_WRITE_ATTACKS , BATTLE_SCENES_WRITE_ENEMIES , BATTLE_SCENES_WRITE_FORMATIONS , BATTLE_MODELS_INIT , BATTLE_MODELS_PROCESS , BATTLE_MODELS_CONVERT_INIT , BATTLE_MODELS_CONVERT , BATTLE_MODELS_WRITE_CHARACTERS , BATTLE_MODELS_WRITE_SCENES , KERNEL_PRICES , KERNEL_COMMANDS , KERNEL_ATTACKS , KERNEL_CHARACTERS , KERNEL_ITEMS , KERNEL_GROWTH , KERNEL_WEAPONS , KERNEL_ARMORS , KERNEL_ACCESSORIES , KERNEL_MATERIA , KERNEL_KEY_ITEMS , KERNEL_SUMMON_NAMES , KERNEL_SAVEMAP , MEDIA_IMAGES , MEDIA_SOUNDS_INIT , MEDIA_SOUNDS , MEDIA_SOUNDS_INDEX , MEDIA_MUSICS_INIT , MEDIA_MUSICS , MEDIA_MUSICS_HQ , MEDIA_MUSICS_INDEX , FIELD_SPAWN_POINTS_AND_SCALE_FACTORS_INIT , FIELD_SPAWN_POINTS_AND_SCALE_FACTORS , FIELD_CONVERT , FIELD_WRITE_INIT , FIELD_WRITE , FIELD_WRITE_END , FIELD_CONVERT_MODELS_INIT , FIELD_CONVERT_MODELS , CLEAN , STATE_COUNT , DONE = 100 }
	Installation steps. More...

Private Member Functions
const float	CalcProgress ()
	Calculates the installation progress. More...

void	CreateDir (const std::string &dir)
	Creates a directory in the outputh path. More...

void	CreateDirectories ()
	Creates all directories required for the installation. More...

void	CleanInstall ()
	Cleans up after the installation is complete. More...

Private Attributes
InstallationSteps	installation_state_ = IDLE
	Current installation status. More...

int	substeps_
	Substeps in the current installation step. More...

int	cur_substep_
	Current substep in the current installation step. More...

int	step_weight_ [STATE_COUNT]
	Weight of each installation step. More...

std::vector< std::string >	field_model_names_
	List of field model names. More...

std::string	input_dir_
	The path to the directory from which to read the PC game data. More...

std::string	output_dir_
	The path to the directory where to save the V-Gears data. More...

AdvancedOptions	options_
	Advanced options. More...

VGears::Application	application_
	The installer application. More...

std::unique_ptr< ScopedLgp >	fields_lgp_
	LGP archive with field data. More...

std::unique_ptr< FieldDataInstaller >	field_installer_
	The installer for fiel maps data. More...

std::unique_ptr< KernelDataInstaller >	kernel_installer_
	The installer for kernel data. More...

std::unique_ptr< MediaDataInstaller >	media_installer_
	The installer for media files. More...

std::unique_ptr< BattleDataInstaller >	battle_installer_
	The installer for battle data. More...

std::function< void(std::string msg, int level, bool progress)>	write_output_line_
	Function used to print text to the log output, line by line. More...

Detailed Description

The data installer.

Member Enumeration Documentation

◆ InstallationSteps

enum DataInstaller::InstallationSteps

private

Installation steps.

Enumerator
IDLE	Installation not started.
CREATE_DIRECTORIES	Create all directories required for the installation.
INITIALIZE	Initialize data for installation.
BATTLE_SCENES_INIT	Initializes the battle installer for scene processing.
BATTLE_SCENES_PROCESS	Extracts battle scenes.
BATTLE_SCENES_WRITE_ATTACKS	Writes attack data.
BATTLE_SCENES_WRITE_ENEMIES	Writes enemy data.
BATTLE_SCENES_WRITE_FORMATIONS	Writes enemy formation data.
BATTLE_MODELS_INIT	Initializes the battle installer for 3D model processing.
BATTLE_MODELS_PROCESS	Extracts 3D battle models.
BATTLE_MODELS_CONVERT_INIT	Prepares for 3D battle model conversion.
BATTLE_MODELS_CONVERT	Converts 3D battle models.
BATTLE_MODELS_WRITE_CHARACTERS	Writes playable character model info.
BATTLE_MODELS_WRITE_SCENES	Writtes battle scene model info.
KERNEL_PRICES	Parses item and materia prices from ff7.exe.
KERNEL_COMMANDS	Parses command data from KERNEL.BIN.
KERNEL_ATTACKS	Parses attack data from KERNEL.BIN.
KERNEL_CHARACTERS	Parses characters data from KERNEL.BIN.
KERNEL_ITEMS	Parses item data from KERNEL.BIN.
KERNEL_GROWTH	Parses growth data from KERNEL.BIN.
KERNEL_WEAPONS	Parses weapon data from KERNEL.BIN.
KERNEL_ARMORS	Parses armor data from KERNEL.BIN.
KERNEL_ACCESSORIES	Parses accessory data from KERNEL.BIN.
KERNEL_MATERIA	Parses materia data from KERNEL.BIN.
KERNEL_KEY_ITEMS	Parses key item data data from KERNEL.BIN.
KERNEL_SUMMON_NAMES	Parses summon names data from KERNEL.BIN.
KERNEL_SAVEMAP	Parses the initial savemap from KERNEL.BIN.
MEDIA_IMAGES	Extract game images and icons from menu.lgp.
MEDIA_SOUNDS_INIT	Prepares the installer for sound extraction.
MEDIA_SOUNDS	Extract game sounds.
MEDIA_SOUNDS_INDEX	Build sounds index.
MEDIA_MUSICS_INIT	Prepares the installer for music extraction.
MEDIA_MUSICS	Extracts the game music.
MEDIA_MUSICS_HQ	Extracts the game high quality music.
MEDIA_MUSICS_INDEX	Build the music index.
FIELD_SPAWN_POINTS_AND_SCALE_FACTORS_INIT	Initializer for {. See also SPAWN_POINTS_AND_SCALE_FACTORS}.
FIELD_SPAWN_POINTS_AND_SCALE_FACTORS	Step that collects spawn points and sclae factors.
FIELD_CONVERT	Step that convets fields to V-Gears format.
FIELD_WRITE_INIT	Initializer for {. See also WRITE_MAPS}.
FIELD_WRITE	Step that writes XML maps.
FIELD_WRITE_END	Clean up after {. See also WRITE_MAPS}.
FIELD_CONVERT_MODELS_INIT	Initializer for {. See also CONVERT_FIELD_MODELS}.
FIELD_CONVERT_MODELS	Step that converts field models.
CLEAN	Cleans up after the installation.
STATE_COUNT	Number of installation steps.
DONE	Installation finished.

Constructor & Destructor Documentation

◆ DataInstaller()

DataInstaller::DataInstaller	(	const std::string	input_dir,
		const std::string	output_dir,
		AdvancedOptions	options,
		std::function< void(std::string, int, bool)>	write_output_line
	)

Installer constructor.

Parameters

[in]	input_dir	Path to the directory containing the original data to parse.
[in]	output_dir	Path to the directory to write generated data to.
[in]	options	Adavanced options for the installer.
[in]	write_output_line	Pointer to function to write output.

◆ ~DataInstaller()

DataInstaller::~DataInstaller ( )

Installer destructor.

Member Function Documentation

◆ CalcProgress()

const float DataInstaller::CalcProgress ( )

private

Calculates the installation progress.

Returns: Installation progress [0-100]

◆ CleanInstall()

void DataInstaller::CleanInstall ( )

private

Cleans up after the installation is complete.

◆ CreateDir()

void DataInstaller::CreateDir ( const std::string & dir )

private

Creates a directory in the outputh path.

Parameters

[in] dir Path of the directory to create, relative to the output path.

Exceptions

std::runtime_error If the directory can't be created.

◆ CreateDirectories()

void DataInstaller::CreateDirectories ( )

private

Creates all directories required for the installation.

It also adds certain location to the resource group manager.

◆ Progress()

float DataInstaller::Progress ( )

Handle the installation progress.

Returns: Installation progress [0-100].

Member Data Documentation

◆ application_

VGears::Application DataInstaller::application_

private

The installer application.

It's a singleton so it can't be recreated. It will crash the second time round.

◆ battle_installer_

std::unique_ptr<BattleDataInstaller> DataInstaller::battle_installer_

private

The installer for battle data.

◆ cur_substep_

int DataInstaller::cur_substep_

private

Current substep in the current installation step.

◆ field_installer_

std::unique_ptr<FieldDataInstaller> DataInstaller::field_installer_

private

The installer for fiel maps data.

◆ field_model_names_

std::vector<std::string> DataInstaller::field_model_names_

private

List of field model names.

◆ fields_lgp_

std::unique_ptr<ScopedLgp> DataInstaller::fields_lgp_

private

LGP archive with field data.

◆ input_dir_

std::string DataInstaller::input_dir_

private

The path to the directory from which to read the PC game data.

◆ installation_state_

InstallationSteps DataInstaller::installation_state_ = IDLE

private

Current installation status.

◆ kernel_installer_

std::unique_ptr<KernelDataInstaller> DataInstaller::kernel_installer_

private

The installer for kernel data.

◆ LINE_SCALE_FACTOR

float DataInstaller::LINE_SCALE_FACTOR = 0.0078124970964f

static

The scale factor for line point coordinates.

When a LINE opcode is found in the game scripts, the line points X and Y coordinates must be scaled down by this factor.

◆ media_installer_

std::unique_ptr<MediaDataInstaller> DataInstaller::media_installer_

private

The installer for media files.

◆ options_

AdvancedOptions DataInstaller::options_

private

Advanced options.

◆ output_dir_

std::string DataInstaller::output_dir_

private

The path to the directory where to save the V-Gears data.

◆ step_weight_

int DataInstaller::step_weight_[STATE_COUNT]

private

Weight of each installation step.

Used to calculate current progress.

◆ substeps_

int DataInstaller::substeps_

private

Substeps in the current installation step.

◆ write_output_line_

std::function<void(std::string msg, int level, bool progress)> DataInstaller::write_output_line_

private

Function used to print text to the log output, line by line.

Parameters

[in]	msg	the message to write.
[in]	level	Log level for the message.
[in]	as_progress	If true, the text will also be set as the current text behind the progress bar.

The documentation for this class was generated from the following files:

src/installer/DataInstaller.h
src/installer/DataInstaller.cpp
