Structure for representing an instruction. More...

#include <Instruction.h>

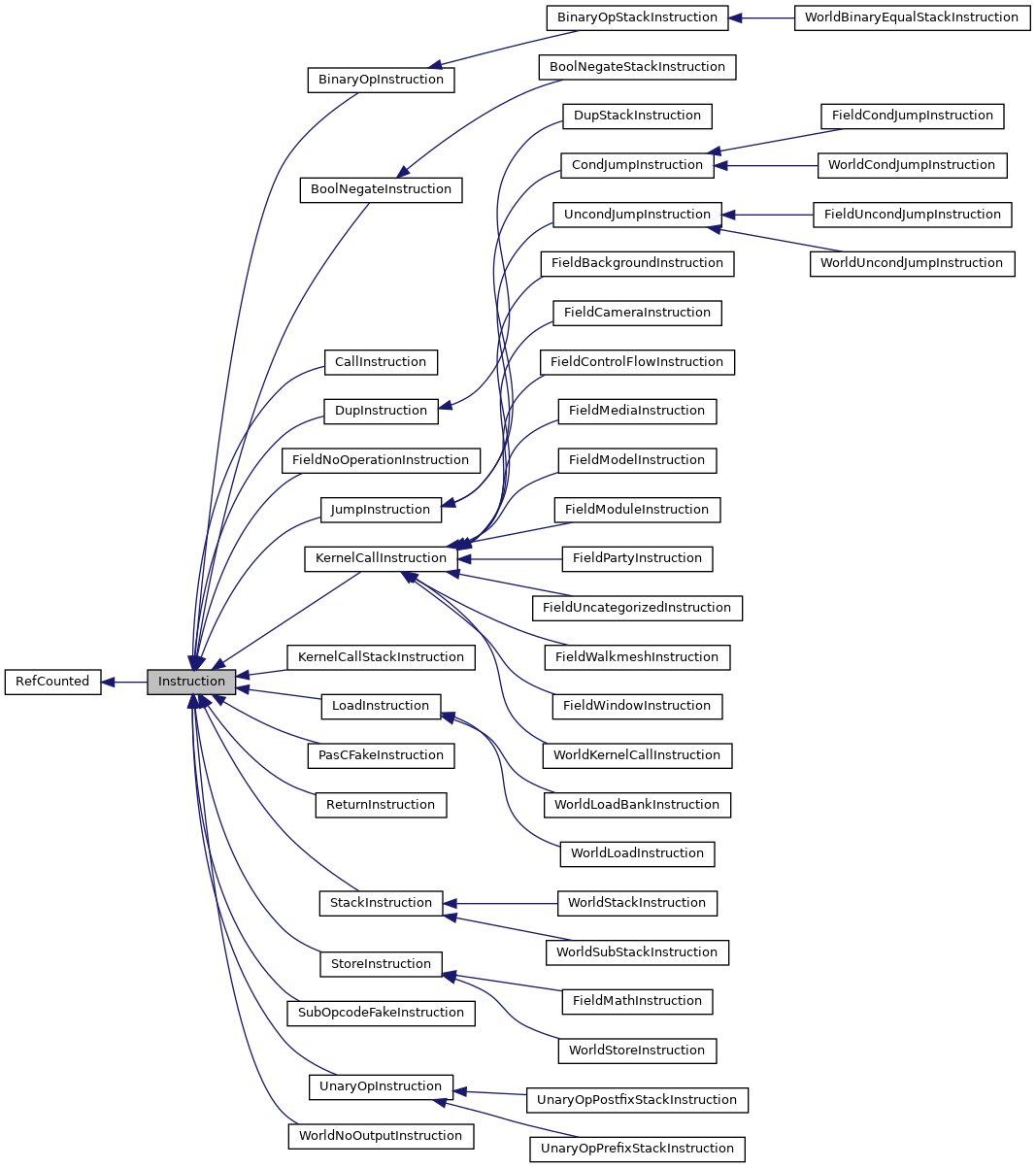

Inheritance diagram for Instruction:

[legend]

Collaboration diagram for Instruction:

Public Member Functions
virtual std::ostream &	Print (std::ostream &output) const
	Print the instruction to a stream. More...

virtual bool	IsJump () const
	Checks if the instruction is a jump of some sort. More...

virtual bool	IsCondJump () const
	Checks if the instruction is a conditional jump. More...

virtual bool	IsUncondJump () const
	Checks if the instruction is an unconditional jump. More...

virtual bool	IsStackOp () const
	Checks if the instruction is a stack operation. More...

virtual bool	IsFuncCall () const
	Checks if the instruction is a call to a script function. More...

virtual bool	IsReturn () const
	Checks if the instruction is a return statement. More...

virtual bool	IsKernelCall () const
	Checks if the instruction is a call to a kernel function. More...

virtual bool	IsLoad () const
	Checks if the instruction is a load operation. More...

virtual bool	IsStore () const
	Checks if the instruction is a store operation. More...

virtual uint32	GetDestAddress () const
	Returns the destination address of a jump instruction. More...

virtual void	ProcessInst (Function &function, ValueStack &stack, Engine engine, CodeGenerator code_gen)=0
	Process an instruction for code generation. More...

uint32	GetOpcode () const
	Retrieves the instruction opcode. More...

void	SetOpcode (uint32 opcode)
	Sets the instruction opcode. More...

uint32	GetAddress () const
	Retrieves the instruction address. More...

void	SetAddress (uint32 address)
	Sets the instruction address. More...

std::string	GetName () const
	Retrieves the instruction name (the opcode name). More...

void	SetName (std::string name)

int16	GetStackChange () const
	Checks how much the instruction changes the stack pointer. More...

void	SetStackChange (int16 stack_change)
	Defines how much the instruction changes the stack pointer. More...

std::vector< ValuePtr >	GetParams () const
	Retrieves the list of instruction parameters. More...

ValuePtr	GetParam (uint32 index) const
	Retrieves a instruction parameter. More...

void	SetParams (std::vector< ValuePtr > params)
	Sets the instructions parameters. More...

void	AddParam (ValuePtr value)
	Adds a parameter to the instructions. More...

std::string	GetCodeGenData () const
	Retrieves metadata for code generation. More...

void	SetCodeGenData (std::string code_gen_data)
	Sets metadata for code generation. More...

bool	LabelRequired () const
	Checks if the instruction requires a label. More...

void	SetLabelRequired (bool required)
	Indicates if the instruction needs a label. More...

Static Public Attributes
static int	INST_TYPE_BINARY_OP
	Binary operation (e.g. More...

static int	INST_TYPE_BOOL_NEGATE
	Boolean negation. More...

static int	INST_TYPE_CALL
	Regular function call. More...

static int	INST_TYPE_COND_JUMP
	Conditional jump. More...

static int	INST_TYPE_DUP
	Instruction duplicates the most recent stack entry. More...

static int	INST_TYPE_JUMP
	Unconditional jump. More...

static int	INST_TYPE_KERNEL_CALL
	Kernel functions. More...

static int	INST_TYPE_LOAD
	Load value from memory. More...

static int	INST_TYPE_RETURN
	Return from regular function call. More...

static int	INST_TYPE_STACK
	Stack allocation or deallocation (altering stack pointer). More...

static int	INST_TYPE_STORE
	Store value in memory. More...

static int	INST_TYPE_UNARY_OP_PRE
	Unary operation (e.g. More...

static int	INST_TYPE_UNARY_OP_POST
	Unary operation with operator placed after the operator. More...

Protected Attributes
uint32	opcode_
	The instruction opcode. More...

uint32	address_
	The instruction address. More...

std::string	name_
	The instruction name (opcode name). More...

int16	stack_change_
	How much this instruction changes the stack pointer by. More...

std::vector< ValuePtr >	params_
	Array of parameters used for the instruction. More...

std::string	code_gen_data_
	String containing metadata for code generation. More...

bool	label_required_ = false
	Indicates if a label is required. More...

Friends
std::ostream &	operator<< (std::ostream &output, const Instruction *inst)
	Operator overload to output an Instruction to a stream. More...

Additional Inherited Members
Protected Member Functions inherited from RefCounted
	RefCounted ()

virtual	~RefCounted ()

Detailed Description

Structure for representing an instruction.

Member Function Documentation

◆ AddParam()

void Instruction::AddParam ( ValuePtr value )

Adds a parameter to the instructions.

Parameters

[in] value The parameter to add.

◆ GetAddress()

uint32 Instruction::GetAddress ( ) const

Retrieves the instruction address.

Returns: The address.

◆ GetCodeGenData()

std::string Instruction::GetCodeGenData ( ) const

Retrieves metadata for code generation.

See the extended documentation for details.

Returns: Code generator metadata.

◆ GetDestAddress()

uint32 Instruction::GetDestAddress ( ) const

virtual

Returns the destination address of a jump instruction.

Returns: Destination address of a jump instruction.

Exceptions

WrongTypeException if instruction is not a jump.

Reimplemented in FieldUncondJumpInstruction, WorldCondJumpInstruction, WorldUncondJumpInstruction, and FieldCondJumpInstruction.

◆ GetName()

std::string Instruction::GetName ( ) const

Retrieves the instruction name (the opcode name).

Returns: The name.

◆ GetOpcode()

uint32 Instruction::GetOpcode ( ) const

Retrieves the instruction opcode.

Returns: The opcode.

◆ GetParam()

ValuePtr Instruction::GetParam ( uint32 index ) const

Retrieves a instruction parameter.

Parameters

[in] index Index of the parameter to retrieve.

Returns: The parameter at the specified index, or nullptr if there is not that many parameters.

◆ GetParams()

std::vector< ValuePtr > Instruction::GetParams ( ) const

Retrieves the list of instruction parameters.

Returns: The list of parameters.

◆ GetStackChange()

int16 Instruction::GetStackChange ( ) const

Checks how much the instruction changes the stack pointer.

Returns: The stack pointer change, in bytes.

◆ IsCondJump()

bool Instruction::IsCondJump ( ) const

virtual

Checks if the instruction is a conditional jump.

Returns: True if the instruction is a conditional jump, false otherwise.

Reimplemented in CondJumpInstruction.

◆ IsFuncCall()

bool Instruction::IsFuncCall ( ) const

virtual

Checks if the instruction is a call to a script function.

Returns: True if the instruction is a script function call, false otherwise.

Reimplemented in FieldUncondJumpInstruction, CallInstruction, and WorldUncondJumpInstruction.

◆ IsJump()

bool Instruction::IsJump ( ) const

virtual

Checks if the instruction is a jump of some sort.

Returns: True if the instruction is a jump, otherwise false.

◆ IsKernelCall()

bool Instruction::IsKernelCall ( ) const

virtual

Checks if the instruction is a call to a kernel function.

Returns: True if the instruction is a kernel function call, false otherwise.

Reimplemented in KernelCallInstruction.

◆ IsLoad()

bool Instruction::IsLoad ( ) const

virtual

Checks if the instruction is a load operation.

Returns: True if the instruction is a load operation, false otherwise.

Reimplemented in LoadInstruction.

◆ IsReturn()

bool Instruction::IsReturn ( ) const

virtual

Checks if the instruction is a return statement.

Returns: True if the instruction is a return statement, false otherwise.

Reimplemented in ReturnInstruction.

◆ IsStackOp()

bool Instruction::IsStackOp ( ) const

virtual

Checks if the instruction is a stack operation.

Returns: True if the instruction is a stack operation, false otherwise.

Reimplemented in StackInstruction.

◆ IsStore()

bool Instruction::IsStore ( ) const

virtual

Checks if the instruction is a store operation.

Returns: True if the instruction is a store operation, false otherwise.

Reimplemented in StoreInstruction.

◆ IsUncondJump()

bool Instruction::IsUncondJump ( ) const

virtual

Checks if the instruction is an unconditional jump.

Returns: True if the instruction is an unconditional jump, false otherwise.

Reimplemented in FieldUncondJumpInstruction, WorldUncondJumpInstruction, and UncondJumpInstruction.

◆ LabelRequired()

bool Instruction::LabelRequired ( ) const

Checks if the instruction requires a label.

◆ Print()

std::ostream & Instruction::Print ( std::ostream & output ) const

virtual

Print the instruction to a stream.

Parameters

[out] output The stream to write to.

Returns: The stream used for output.

Reimplemented in FieldCondJumpInstruction, FieldUncondJumpInstruction, WorldCondJumpInstruction, and WorldUncondJumpInstruction.

◆ ProcessInst()

virtual void Instruction::ProcessInst	(	Function &	function,
		ValueStack &	stack,
		Engine *	engine,
		CodeGenerator *	code_gen
	)

pure virtual

Process an instruction for code generation.

Parameters

[in]	function	The function the instruction is in.
[in]	stack	The current stack.
[in]	engine	The Engine used for code generation.
[in]	code_gen	The CodeGenerator used for code generation.

Implemented in PasCFakeInstruction, SubOpcodeFakeInstruction, FieldBackgroundInstruction, FieldCameraInstruction, FieldControlFlowInstruction, FieldMathInstruction, FieldMediaInstruction, FieldModelInstruction, FieldModuleInstruction, FieldNoOperationInstruction, FieldPartyInstruction, FieldUncategorizedInstruction, FieldUncondJumpInstruction, FieldWalkmeshInstruction, FieldWindowInstruction, FieldCondJumpInstruction, BinaryOpStackInstruction, BoolNegateStackInstruction, DupStackInstruction, KernelCallStackInstruction, ReturnInstruction, UnaryOpPostfixStackInstruction, UnaryOpPrefixStackInstruction, UncondJumpInstruction, WorldBinaryEqualStackInstruction, WorldCondJumpInstruction, WorldKernelCallInstruction, WorldLoadBankInstruction, WorldLoadInstruction, WorldNoOutputInstruction, WorldStackInstruction, WorldStoreInstruction, WorldSubStackInstruction, and WorldUncondJumpInstruction.

◆ SetAddress()

void Instruction::SetAddress ( uint32 address )

Sets the instruction address.

Parameters

[in] address The address.

◆ SetCodeGenData()

void Instruction::SetCodeGenData ( std::string code_gen_data )

Sets metadata for code generation.

See the extended documentation for details.

Parameters

[in] code_gen_data Code generator metadata.

◆ SetLabelRequired()

void Instruction::SetLabelRequired ( bool required )

Indicates if the instruction needs a label.

◆ SetName()

void Instruction::SetName ( std::string name )

◆ SetOpcode()

void Instruction::SetOpcode ( uint32 opcode )

Sets the instruction opcode.

Parameters

[in] opcode The opcode.

◆ SetParams()

void Instruction::SetParams ( std::vector< ValuePtr > params )

Sets the instructions parameters.

Parameters

[in] params The list of instruction parameters.

◆ SetStackChange()

void Instruction::SetStackChange ( int16 stack_change )

Defines how much the instruction changes the stack pointer.

Parameters

[in] stack_change Bytes the instruction changes the stack pointer by.

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	output,
		const Instruction *	inst
	)

friend

Operator overload to output an Instruction to a stream.

Parameters

[out]	output	The stream to output to.
[in]	inst	The Instruction to output.

Returns: The stream used for output.

Member Data Documentation

◆ address_

uint32 Instruction::address_

protected

The instruction address.

◆ code_gen_data_

std::string Instruction::code_gen_data_

protected

String containing metadata for code generation.

See the extended documentation for details.

◆ INST_TYPE_BINARY_OP

int Instruction::INST_TYPE_BINARY_OP

static

Binary operation (e.g.

+, &&, etc.), including comparisons.

◆ INST_TYPE_BOOL_NEGATE

int Instruction::INST_TYPE_BOOL_NEGATE

static

Boolean negation.

◆ INST_TYPE_CALL

int Instruction::INST_TYPE_CALL

static

Regular function call.

◆ INST_TYPE_COND_JUMP

int Instruction::INST_TYPE_COND_JUMP

static

Conditional jump.

◆ INST_TYPE_DUP

int Instruction::INST_TYPE_DUP

static

Instruction duplicates the most recent stack entry.

◆ INST_TYPE_JUMP

int Instruction::INST_TYPE_JUMP

static

Unconditional jump.

◆ INST_TYPE_KERNEL_CALL

int Instruction::INST_TYPE_KERNEL_CALL

static

Kernel functions.

◆ INST_TYPE_LOAD

int Instruction::INST_TYPE_LOAD

static

Load value from memory.

◆ INST_TYPE_RETURN

int Instruction::INST_TYPE_RETURN

static

Return from regular function call.

◆ INST_TYPE_STACK

int Instruction::INST_TYPE_STACK

static

Stack allocation or deallocation (altering stack pointer).

◆ INST_TYPE_STORE

int Instruction::INST_TYPE_STORE

static

Store value in memory.

◆ INST_TYPE_UNARY_OP_POST

int Instruction::INST_TYPE_UNARY_OP_POST

static

Unary operation with operator placed after the operator.

◆ INST_TYPE_UNARY_OP_PRE

int Instruction::INST_TYPE_UNARY_OP_PRE

static

Unary operation (e.g.

!) with operator placed before the operator.

◆ label_required_

bool Instruction::label_required_ = false

protected

Indicates if a label is required.

◆ name_

std::string Instruction::name_

protected

The instruction name (opcode name).

◆ opcode_

uint32 Instruction::opcode_

protected

The instruction opcode.

◆ params_

std::vector<ValuePtr> Instruction::params_

protected

Array of parameters used for the instruction.

◆ stack_change_

int16 Instruction::stack_change_

protected

How much this instruction changes the stack pointer by.

The documentation for this class was generated from the following files:

src/installer/decompiler/instruction/Instruction.h
src/installer/decompiler/instruction/Instruction.cpp

Public Member Functions

Static Public Attributes

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ AddParam()

◆ GetAddress()

◆ GetCodeGenData()

◆ GetDestAddress()

◆ GetName()

◆ GetOpcode()

◆ GetParam()

◆ GetParams()

◆ GetStackChange()

◆ IsCondJump()

◆ IsFuncCall()

◆ IsJump()

◆ IsKernelCall()

◆ IsLoad()

◆ IsReturn()

◆ IsStackOp()

◆ IsStore()

◆ IsUncondJump()

◆ LabelRequired()

◆ Print()

◆ ProcessInst()

◆ SetAddress()

◆ SetCodeGenData()

◆ SetLabelRequired()

◆ SetName()

◆ SetOpcode()

◆ SetParams()

◆ SetStackChange()

Friends And Related Function Documentation

◆ operator<<

Member Data Documentation

◆ address_

◆ code_gen_data_

◆ INST_TYPE_BINARY_OP

◆ INST_TYPE_BOOL_NEGATE

◆ INST_TYPE_CALL

◆ INST_TYPE_COND_JUMP

◆ INST_TYPE_DUP

◆ INST_TYPE_JUMP

◆ INST_TYPE_KERNEL_CALL

◆ INST_TYPE_LOAD

◆ INST_TYPE_RETURN

◆ INST_TYPE_STACK

◆ INST_TYPE_STORE

◆ INST_TYPE_UNARY_OP_POST

◆ INST_TYPE_UNARY_OP_PRE

◆ label_required_

◆ name_

◆ opcode_

◆ params_

◆ stack_change_
