Base class for code generators. More...

#include <CodeGenerator.h>

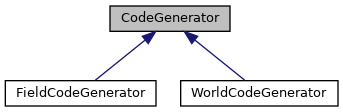

Inheritance diagram for CodeGenerator:

Collaboration diagram for CodeGenerator:

Public Member Functions
	CodeGenerator (Engine *engine, std::ostream &output, ARGUMENT_ORDER bin_order, ARGUMENT_ORDER call_order)
	Constructor. More...

virtual	~CodeGenerator ()
	Destructor. More...

LuaLanguage &	GetLanguage ()
	Retrieves the target language. More...

void	WriteFunctionCall (std::string function_name, std::string param_format, const std::vector< ValuePtr > &params)
	Writes a function call. More...

virtual void	Generate (InstVec &insts, const Graph &graph)
	Generates code from the provided graph and outputs it to stdout. More...

virtual void	AddOutputLine (std::string line, bool unindent_before=false, bool indent_after=false)
	Adds a line of code to the current group. More...

void	WriteTodo (std::string class_name, std::string instruction)
	Writes a comment line indicating an unimplemented opcode. More...

void	WriteAssignment (ValuePtr dst, ValuePtr src)
	Generate an assignment statement. More...

void	AddArg (ValuePtr arg)
	Add an argument to the argument list. More...

virtual void	ProcessSpecialMetadata (const InstPtr inst, char c, int pos)
	Process a single character of metadata. More...

virtual ValueList	GetArgList ()
	Retrieves the argument list. More...

virtual ARGUMENT_ORDER	GetBinaryOrder ()
	Retrieves the order of operands for binary operations. More...

Protected Member Functions
void	ProcessInst (Function &function, InstVec &insts, const InstPtr inst)
	Processes an instruction. More...

void	ProcessUncondJumpInst (Function &function, InstVec &insts, const InstPtr inst)
	Processes an unconditional jump instruction. More...

void	ProcessCondJumpInst (const InstPtr inst)
	Processes a conditional jump instruction. More...

std::string	IndentString (std::string s)
	Indents a string according to the current indentation level. More...

virtual std::string	ConstructFuncSignature (const Function &function)
	Construct the signature for a function. More...

virtual void	OnBeforeStartFunction (const Function &function)
	Adds lines to the script before a function. More...

virtual void	OnEndFunction (const Function &function)
	Adds lines to the script at the end a function. More...

virtual void	OnStartFunction (const Function &function)
	Adds lines to the script before a function instructions. More...

virtual bool	OutputOnlyRequiredLabels () const
	Checks if only required labels are to be written. More...

void	GeneratePass (InstVec &insts, const Graph &graph)
	Generates a pass. More...

Protected Attributes
bool	is_label_pass_ = true
	Indicates if a label is being processed. More...

GroupPtr	cur_group_
	The group currently being processed. More...

Engine *	engine_
	The engine used for teh script. More...

std::ostream &	output_
	The stream to output the code to. More...

ValueStack	stack_
	The stack currently being processed. More...

uint	indent_level_
	Current indentation level. More...

GraphVertex	cur_vertex_
	Graph vertex currently being processed. More...

std::unique_ptr< LuaLanguage >	target_lang_
	The target language. More...

Private Member Functions
void	Process (Function &function, InstVec &insts, GraphVertex vertex)
	Processes a GraphVertex. More...

Private Attributes
Graph	graph_
	The annotated graph of the script. More...

const ARGUMENT_ORDER	bin_order_
	Order of operands for binary operations. More...

const ARGUMENT_ORDER	call_order_
	Order of operands for call arguments. More...

ValueList	arg_list_
	Lists of arguments to be built when processing function calls. More...

Detailed Description

Base class for code generators.

This is to be overriden by each engine.

Constructor & Destructor Documentation

◆ CodeGenerator()

CodeGenerator::CodeGenerator	(	Engine *	engine,
		std::ostream &	output,
		ARGUMENT_ORDER	bin_order,
		ARGUMENT_ORDER	call_order
	)

Constructor.

Parameters

[in]	engine	The engine used for the script.
[out]	output	The stream to output the code to.
[in]	bin_order	Order of arguments for binary operators.
[in]	call_order	Order of arguments for function calls.

◆ ~CodeGenerator()

CodeGenerator::~CodeGenerator ( )

virtual

Destructor.

Does nothing.

Member Function Documentation

◆ AddArg()

void CodeGenerator::AddArg ( ValuePtr arg )

Add an argument to the argument list.

Parameters

[in] arg The argument to add.

◆ AddOutputLine()

void CodeGenerator::AddOutputLine	(	std::string	line,
		bool	unindent_before = `false`,
		bool	indent_after = `false`
	)

virtual

Adds a line of code to the current group.

Parameters

[in]	line	The line to add.
[in]	unindent_before	Whether or not to remove an indentation level before the line. Defaults to false.
[in]	indent_after	Whether or not to add an indentation level after the line. Defaults to false.

Reimplemented in FieldCodeGenerator.

◆ ConstructFuncSignature()

std::string CodeGenerator::ConstructFuncSignature ( const Function & function )

protectedvirtual

Construct the signature for a function.

Parameters

[in] function Reference to the function to construct the signature for.

Returns: For this base class, an empty string.

Reimplemented in WorldCodeGenerator, and FieldCodeGenerator.

◆ Generate()

void CodeGenerator::Generate	(	InstVec &	insts,
		const Graph &	graph
	)

virtual

Generates code from the provided graph and outputs it to stdout.

Parameters

[in]	insts	The list of instructions.
[in]	graph	The annotated graph of the script.

Reimplemented in FieldCodeGenerator.

◆ GeneratePass()

void CodeGenerator::GeneratePass	(	InstVec &	insts,
		const Graph &	graph
	)

protected

Generates a pass.

Parameters

[in]	insts	The list of instructions.
[in]	graph	The code graph.

Todo:: Understand and explain.

◆ GetArgList()

ValueList CodeGenerator::GetArgList ( )

virtual

Retrieves the argument list.

Returns: The argument list.

◆ GetBinaryOrder()

ARGUMENT_ORDER CodeGenerator::GetBinaryOrder ( )

virtual

Retrieves the order of operands for binary operations.

Returns: The order of operands

◆ GetLanguage()

LuaLanguage & CodeGenerator::GetLanguage ( )

Retrieves the target language.

◆ IndentString()

std::string CodeGenerator::IndentString ( std::string s )

protected

Indents a string according to the current indentation level.

Parameters

[in] s The string to indent.

Returns: The indented string.

◆ OnBeforeStartFunction()

void CodeGenerator::OnBeforeStartFunction ( const Function & function )

protectedvirtual

Adds lines to the script before a function.

Called before writing a function start. For this base class, it does nothing.

Parameters

[in] function The function about to start.

Reimplemented in FieldCodeGenerator.

◆ OnEndFunction()

void CodeGenerator::OnEndFunction ( const Function & function )

protectedvirtual

Adds lines to the script at the end a function.

Called after writing a function. For this base class, it adds a closing bracer "}".

Parameters

[in] function The function about to end.

Reimplemented in FieldCodeGenerator.

◆ OnStartFunction()

void CodeGenerator::OnStartFunction ( const Function & function )

protectedvirtual

Adds lines to the script before a function instructions.

Called after writing a function start. For this base class, it does nothing.

Parameters

[in] function The function starting.

Reimplemented in FieldCodeGenerator.

◆ OutputOnlyRequiredLabels()

bool CodeGenerator::OutputOnlyRequiredLabels ( ) const

protectedvirtual

Checks if only required labels are to be written.

Returns: Always false.

Reimplemented in FieldCodeGenerator.

◆ Process()

void CodeGenerator::Process	(	Function &	function,
		InstVec &	insts,
		GraphVertex	vertex
	)

private

Processes a GraphVertex.

Parameters

[in]	function	The function to process.
[in]	insts	The list of instructions.
[in]	vertex	The vertex to process.

◆ ProcessCondJumpInst()

void CodeGenerator::ProcessCondJumpInst ( const InstPtr inst )

protected

Processes a conditional jump instruction.

Called by {

See also: ProcessInst()} for those instructions. Call the base class implementation for opcodes not handled by an implemented engine, or where the base class implementation is preferable.

Parameters

[in] inst The instruction to process.

◆ ProcessInst()

void CodeGenerator::ProcessInst	(	Function &	function,
		InstVec &	insts,
		const InstPtr	inst
	)

protected

Processes an instruction.

Called by {

See also: Process()} for each instruction. Call the base class implementation for opcodes not handled by an implemented engine, or where the base class implementation is preferable.

Parameters

[in]	function	The function the instruction is is.
[in]	inst	The instruction to process.
[in]	insts	Every instruction in the function.

◆ ProcessSpecialMetadata()

void CodeGenerator::ProcessSpecialMetadata	(	const InstPtr	inst,
		char	c,
		int	pos
	)

virtual

Process a single character of metadata.

Parameters

[in]	inst	The instruction being processed. Unused.
[in]	c	The character signifying the action to be taken. The only valid one is 'p'.
[in]	pos	The position at which c occurred in the metadata. Unused.

Reimplemented in WorldCodeGenerator.

◆ ProcessUncondJumpInst()

void CodeGenerator::ProcessUncondJumpInst	(	Function &	function,
		InstVec &	insts,
		const InstPtr	inst
	)

protected

Processes an unconditional jump instruction.

Called by {

See also: ProcessInst()} for those instructions. Call the base class implementation for opcodes not handled by an implemented engine, or where the base class implementation is preferable.

Parameters

[in]	function	The function the instruction is is.
[in]	inst	The instruction to process.
[in]	insts	Every instruction in the function.

◆ WriteAssignment()

void CodeGenerator::WriteAssignment	(	ValuePtr	dst,
		ValuePtr	src
	)

Generate an assignment statement.

Parameters

[in]	dst	The variable being assigned to.
[in]	src	The value being assigned.

◆ WriteFunctionCall()

void CodeGenerator::WriteFunctionCall	(	std::string	function_name,
		std::string	param_format,
		const std::vector< ValuePtr > &	params
	)

Writes a function call.

Parameters

[in]	function_name	The name of the function.
[in]	param_format	Characters indicating the parameter format. 'b' for boolean parameters, 'n' for integers (treated as unsigned) or 'f' for floats.
[in]	params	The list of parameters.

◆ WriteTodo()

void CodeGenerator::WriteTodo	(	std::string	class_name,
		std::string	instruction
	)

Writes a comment line indicating an unimplemented opcode.

Parameters

[in]	class_name	The class where the instruction is. Unused.
[in]	instruction	The unimplemented instruction.

Member Data Documentation

◆ arg_list_

ValueList CodeGenerator::arg_list_

private

Lists of arguments to be built when processing function calls.

◆ bin_order_

const ARGUMENT_ORDER CodeGenerator::bin_order_

private

Order of operands for binary operations.

◆ call_order_

const ARGUMENT_ORDER CodeGenerator::call_order_

private

Order of operands for call arguments.

◆ cur_group_

GroupPtr CodeGenerator::cur_group_

protected

The group currently being processed.

◆ cur_vertex_

GraphVertex CodeGenerator::cur_vertex_

protected

Graph vertex currently being processed.

◆ engine_

Engine* CodeGenerator::engine_

protected

The engine used for teh script.

◆ graph_

Graph CodeGenerator::graph_

private

The annotated graph of the script.

◆ indent_level_

uint CodeGenerator::indent_level_

protected

Current indentation level.

◆ is_label_pass_

bool CodeGenerator::is_label_pass_ = true

protected

Indicates if a label is being processed.

◆ output_

std::ostream& CodeGenerator::output_

protected

The stream to output the code to.

◆ stack_

ValueStack CodeGenerator::stack_

protected

The stack currently being processed.

◆ target_lang_

std::unique_ptr<LuaLanguage> CodeGenerator::target_lang_

protected

The target language.

The documentation for this class was generated from the following files:

src/installer/decompiler/CodeGenerator.h
src/installer/decompiler/CodeGenerator.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CodeGenerator()

◆ ~CodeGenerator()

Member Function Documentation

◆ AddArg()

◆ AddOutputLine()

◆ ConstructFuncSignature()

◆ Generate()

◆ GeneratePass()

◆ GetArgList()

◆ GetBinaryOrder()

◆ GetLanguage()

◆ IndentString()

◆ OnBeforeStartFunction()

◆ OnEndFunction()

◆ OnStartFunction()

◆ OutputOnlyRequiredLabels()

◆ Process()

◆ ProcessCondJumpInst()

◆ ProcessInst()

◆ ProcessSpecialMetadata()

◆ ProcessUncondJumpInst()

◆ WriteAssignment()

◆ WriteFunctionCall()

◆ WriteTodo()

Member Data Documentation

◆ arg_list_

◆ bin_order_

◆ call_order_

◆ cur_group_

◆ cur_vertex_

◆ engine_

◆ graph_

◆ indent_level_

◆ is_label_pass_

◆ output_

◆ stack_

◆ target_lang_
