The entity manager. More...

#include <EntityManager.h>

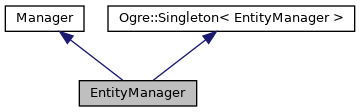

Inheritance diagram for EntityManager:

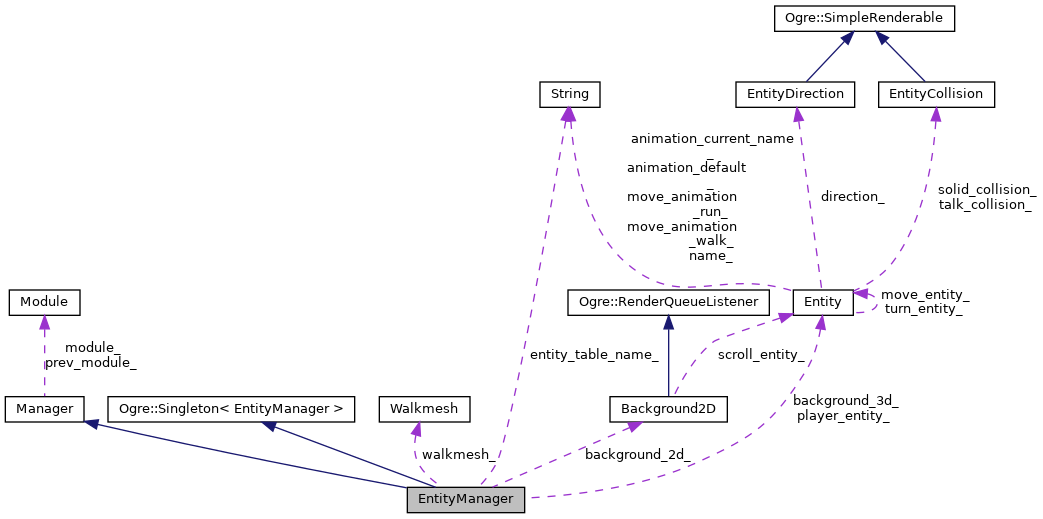

Collaboration diagram for EntityManager:

[legend]

Public Member Functions
	EntityManager ()
	Constructor. More...

virtual	~EntityManager ()
	Destructor. More...

void	Input (const VGears::Event &event) override
	Handles an input event. More...

void	UpdateDebug () override
	Updates the entities in the manager with debug information. More...

void	OnResize () override
	Handles resizing events. More...

void	ClearField () override
	Clears all field information in the entity manager. More...

void	ClearBattle () override
	Clears all battle information in the entity manager. More...

void	ClearWorld () override
	Clears all world map information in the entity manager. More...

Walkmesh *	GetWalkmesh ()
	Retrieves the walkmesh. More...

Background2D *	GetBackground2D ()
	Retrieves the 2D background. More...

void	AddEntity (const Ogre::String &name, const Ogre::String &file_name, const Ogre::Vector3 &position, const Ogre::Degree &direction, int index)
	Adds an entity to the manager. More...

void	AddEntity (const Ogre::String &name, const Ogre::String &file_name, const Ogre::Vector3 &position, const Ogre::Degree &rotation, const Ogre::Vector3 &scale, const Ogre::Quaternion &root_orientation, const int index)
	Adds a field entity to the manager. More...

void	ScriptAddEntity (const char name, const char file_name, const float x, const float y, const float z, const float direction, int index)
	Adds an entity to the manager. More...

void	AddEntityTrigger (const Ogre::String &name, const Ogre::Vector3 &point1, const Ogre::Vector3 &point2, const bool enabled)
	Adds an entity trigger to the manager. More...

void	AddEntityPoint (const Ogre::String &name, const Ogre::Vector3 &position, const float rotation)
	Adds an entity point to the manager. More...

void	AddEntityScript (const Ogre::String &name)
	Adds an entity script to the manager. More...

void	ScriptAddEntityScript (const char *name)
	Adds an entity script to the manager. More...

Entity *	GetEntity (const Ogre::String &name) const
	Retrieves an entity by name. More...

Entity *	GetEntityFromIndex (const int id) const
	Retrieves an entity by it's index in the field. More...

Entity *	GetEntityFromCharacterId (const int id) const
	Retrieves an entity by it's assigned character ID. More...

Entity *	ScriptGetEntity (const char *name) const
	Retrieves an entity by name. More...

EntityPoint *	ScriptGetEntityPoint (const char *name) const
	Retrieves an entity point by name. More...

void	ScriptSetPlayerEntity (const char *name)
	Sets the playable entity. More...

Entity *	ScriptGetPlayerEntity () const
	Retrieves the playable entity. More...

void	ScriptUnsetPlayerEntity ()
	Unsets any playable entities. More...

void	ScriptPlayerLock (const bool lock)
	Locks or unlocks player control of the playable entity. More...

void	SetPlayerMoveRotation (const Ogre::Radian rotation)
	Sets the baseline rotation for the player controlled entity. More...

bool	GetRandomEncounters ()
	Checks if random battle encounters are active in the field. More...

void	SetRandomEncounters (bool active)
	Enables or disables random encounters in the field. More...

float	GetEncounterRate ()
	Get the encounter rate for the field. More...

void	SetEncounterRate (float rate)
	Sets the battle encounter rate. More...

bool	IsKeyOn (unsigned int key_code)
	Checks if a key is being pressed. More...

bool	IsKeyOff (unsigned int key_code)
	Checks if a key is not being pressed. More...

void	SetEntityToCharacter (const char *entity_name, unsigned int char_id)
	Assigns a character to an entity. More...

Entity *	GetBackground3D () const
	Retrieves the entity associated to the 3D background. More...

void	SetBackground3D (const Ogre::String &name, const Ogre::String &file_name)
	Sets the 3D model for the background. More...

Public Member Functions inherited from Manager
	Manager ()
	Constructor. More...

virtual	~Manager ()
	Destructor. More...

Module	GetModule () const
	Retrieves the currently selected module. More...

bool	IsModule (const Module module) const
	Checks the currently selected module. More...

bool	IsFieldModule () const
	Checks if the currently selected module is the field module. More...

bool	IsBattleModule () const
	Checks if the currently selected module is the battle module. More...

bool	IsWorldModule () const
	Checks if the currently selected module is the world module. More...

void	SetModule (const Module module)
	Sets the current module for the entity manager. More...

void	SetFieldModule ()
	Sets the current module to the field mode. More...

void	SetBattleModule ()
	Sets the current module to the battle mode. More...

void	SetWorldModule ()
	Sets the current module to the world map mode. More...

void	SetPreviousModule ()
	Sets the module that was loaded before a battle. More...

virtual void	Input (const VGears::Event &event)=0
	Handles an input event. More...

void	Update ()
	Called every frame, performs an update on the things controlled by the manager. More...

virtual void	UpdateDebug ()=0
	Called every frame, performs an update on the things controlled by the manager. More...

virtual void	OnResize ()=0
	Handles resizing events. More...

void	Clear ()
	Clears the manager. More...

void	Clear (const Module module)
	Clears the manager. More...

virtual void	ClearField ()=0
	Clear all field information in the manager. More...

virtual void	ClearBattle ()=0
	Clear all battle information in the manager. More...

virtual void	ClearWorld ()=0
	Clear all world map information in the manager. More...

void	ClearAll ()
	Clears the manager. More...

void	ScriptSetPaused (const bool paused)
	Handles game pausing. More...

Private Member Functions
void	UpdateField () override
	Updates the field entities in the manager. More...

void	UpdateBattle () override
	Updates the battle entities in the manager. More...

void	UpdateWorld () override
	Updates the world map entities in the manager. More...

void	AddFieldOrWorldMapEntity (const Ogre::String &name, const Ogre::String &file_name, const Ogre::Vector3 &position, const Ogre::Degree &rotation, const Ogre::Vector3 &scale, const Ogre::Quaternion &root_orientation, const int index)
	Adds a field entity to the manager. More...

void	AddBattleEntity (const Ogre::String &name, const Ogre::String &file_name, const Ogre::Vector3 &position, const Ogre::Degree &orientation, const Ogre::Vector3 &scale, const Ogre::Quaternion &root_orientation, const int index)
	Adds a battle entity to the manager. More...

bool	SetEntityOnWalkmesh (Entity *entity)
	Attaches an entity to the walkmesh. More...

bool	PerformWalkmeshMove (Entity *entity, const float speed)
	Moves an entity in the walkmesh. More...

bool	WalkmeshBorderCross (Entity *entity, Ogre::Vector3 &position, const Ogre::Vector2 &move_vector)
	Checks if the entity is crossing a walkmesh triangle border. More...

bool	CheckSolidCollisions (Entity *entity, Ogre::Vector3 &position)
	Checks for collisions of the entity with other entities. More...

void	SetEntityDirectionByVector (Entity *entity, const Ogre::Vector2 &vector)
	Sets an entity direction. More...

void	CheckTriggers (Entity *entity, const Ogre::Vector3 &position)
	Checks for entity triggers near a entity. More...

void	CheckEntityInteract ()
	Checks if an entity can be interacted. More...

void	SetNextOffsetStep (Entity *entity)
	Calculates the next offset step for an entity. More...

void	SetNextTurnStep (Entity *entity)
	Calculates the next turn step for an entity. More...

void	SetNextLinearStep (Entity *entity)
	Calculates and sets the next position during a linear movement. More...

void	SetNextJumpStep (Entity *entity)
	Calculates and sets the next position during a jump. More...

void	SetNextScrollStep ()

Static Private Member Functions
static float	PointElevation (const Ogre::Vector2 &point, const Ogre::Vector3 &a, const Ogre::Vector3 &b, const Ogre::Vector3 &c)
	Calculates the point elevation over a plane. More...

static float	SideOfVector (const Ogre::Vector2 &point, const Ogre::Vector2 &p1, const Ogre::Vector2 &p2)
	Determines at which side of a line a point is. More...

static float	SquareDistanceToLine (const Ogre::Vector3 &point, const Ogre::Vector3 &point_a, const Ogre::Vector3 &point_b, Ogre::Vector3 &proj)
	Calculates the square distance between a point and a line. More...

static Ogre::Degree	GetDirectionToPoint (const Ogre::Vector3 &current_point, const Ogre::Vector3 &direction_point)
	Calculates the direction degree between to points. More...

Private Attributes
Walkmesh	walkmesh_
	The map walkmesh. More...

Background2D	background_2d_
	The map background. More...

Ogre::String	entity_table_name_
	The entity table name. More...

std::vector< Entity * >	entity_
	The list of field or world entities. More...

std::vector< Entity * >	battle_entity_
	The list of battle entities. More...

Entity *	background_3d_
	A 3D background. More...

Entity *	player_entity_
	The player controlled entity. More...

Ogre::Vector3	player_move_
	The playable entity current movement indicator. More...

Ogre::Radian	player_move_rotation_
	The playable entity current movement turn indicator. More...

bool	player_lock_
	Indicates if player control is locked. More...

bool	player_run_
	Indicates if the playable is being moved by running. More...

std::vector< EntityTrigger * >	entity_triggers_
	List of triggers. More...

std::vector< EntityPoint * >	entity_points_
	List of points. More...

std::vector< Ogre::String >	entity_scripts_
	List of scripts. More...

Ogre::SceneNode *	scene_node_
	The scene node. More...

Ogre::Entity *	grid_

Ogre::Entity *	axis_

bool	random_encounters_
	Indicates if random encounters happen in the map. More...

float	encounter_rate_
	The encounter rate of the map. More...

Static Private Attributes
static const float	SCENE_SCALE = 0.003f
	Scale factor for battle background models. More...

static const unsigned int	BATTLE_BACKGROUND_ID = 1000
	Entity ID for battle background entity. More...

static const unsigned int	WORLD_MAP_BACKGROUND_ID = 1001
	Entity ID for world map background entity. More...

Additional Inherited Members
Public Types inherited from Manager
enum	Module { FIELD = 0 , BATTLE = 1 , WORLD = 2 }
	The modules the entity manager can handle. More...

Protected Member Functions inherited from Manager
virtual void	UpdateField ()=0
	Updates the field entities in the manager. More...

virtual void	UpdateBattle ()=0
	Updates the battle entities in the manager. More...

virtual void	UpdateWorld ()=0
	Updates the world map entities in the manager. More...

void	Update (Module module)
	Updates the entities of one module in the manager. More...

Protected Attributes inherited from Manager
Module	module_
	The currently selected module. More...

Module	prev_module_
	The previous module. More...

bool	paused_
	Indicates if the game is paused. More...

Detailed Description

The entity manager.

Constructor & Destructor Documentation

◆ EntityManager()

EntityManager::EntityManager ( )

Constructor.

◆ ~EntityManager()

EntityManager::~EntityManager ( )

virtual

Destructor.

Member Function Documentation

◆ AddBattleEntity()

void EntityManager::AddBattleEntity	(	const Ogre::String &	name,
		const Ogre::String &	file_name,
		const Ogre::Vector3 &	position,
		const Ogre::Degree &	orientation,
		const Ogre::Vector3 &	scale,
		const Ogre::Quaternion &	root_orientation,
		const int	index
	)

private

Adds a battle entity to the manager.

If the manager is not in the battle module, it will do nothing.

Parameters

[in]	name	Entity name.
[in]	file_name	Path to the entity model file.
[in]	position	Entity position.
[in]	rotation	Entity face direction.
[in]	scale	Entity scale.
[in]	root_orientation	The node orientation.
[in]	index	Index of the entity.

◆ AddEntity() [1/2]

void EntityManager::AddEntity	(	const Ogre::String &	name,
		const Ogre::String &	file_name,
		const Ogre::Vector3 &	position,
		const Ogre::Degree &	direction,
		int	index
	)

Adds an entity to the manager.

The entity will be added to the EntityManager current module entity list.

Parameters

[in]	name	Entity name.
[in]	file_name	Path to the entity model file.
[in]	position	Entity position.
[in]	direction	Entity face direction.
[in]	index	Index of the entity on the manager.

◆ AddEntity() [2/2]

void EntityManager::AddEntity	(	const Ogre::String &	name,
		const Ogre::String &	file_name,
		const Ogre::Vector3 &	position,
		const Ogre::Degree &	rotation,
		const Ogre::Vector3 &	scale,
		const Ogre::Quaternion &	root_orientation,
		const int	index
	)

Adds a field entity to the manager.

The entity will be added to the EntityManager current module entity list.

Parameters

[in]	name	Entity name.
[in]	file_name	Path to the entity model file.
[in]	position	Entity position.
[in]	rotation	Entity face direction.
[in]	scale	Entity scale.
[in]	root_orientation	Entity orientation. Unused for battle and world map entities.
[in]	index	Index of the entity on the manager.

◆ AddEntityPoint()

void EntityManager::AddEntityPoint	(	const Ogre::String &	name,
		const Ogre::Vector3 &	position,
		const float	rotation
	)

Adds an entity point to the manager.

If the Battle manager is in battle mode, nothing will be done.

Parameters

[in]	name	Entity point name.
[in]	position	Entity point position.
[in]	rotation	The point orientation.

◆ AddEntityScript()

void EntityManager::AddEntityScript ( const Ogre::String & name )

Adds an entity script to the manager.

Parameters

[in] name Entity script name.

◆ AddEntityTrigger()

void EntityManager::AddEntityTrigger	(	const Ogre::String &	name,
		const Ogre::Vector3 &	point1,
		const Ogre::Vector3 &	point2,
		const bool	enabled
	)

Adds an entity trigger to the manager.

A trigger is a line that does something when approached or crossed. If the Battle manager is in battle mode, nothing will be done.

Parameters

[in]	name	Entity trigger name.
[in]	point1	One point of the trigger line.
[in]	point2	One point of the trigger line.
[in]	enabled	True to enable the trigger, false to leave it disabled.

◆ AddFieldOrWorldMapEntity()

void EntityManager::AddFieldOrWorldMapEntity	(	const Ogre::String &	name,
		const Ogre::String &	file_name,
		const Ogre::Vector3 &	position,
		const Ogre::Degree &	rotation,
		const Ogre::Vector3 &	scale,
		const Ogre::Quaternion &	root_orientation,
		const int	index
	)

private

Adds a field entity to the manager.

Parameters

[in]	name	Entity name.
[in]	file_name	Path to the entity model file.
[in]	position	Entity position in the map.
[in]	rotation	Entity face direction.
[in]	scale	Entity scale.
[in]	root_orientation	Map orientation. Unused for world map entities.
[in]	index	Index of the entity on the map.

◆ CheckEntityInteract()

void EntityManager::CheckEntityInteract ( )

private

Checks if an entity can be interacted.

It checks if there are entities that can be interacted with from the players current position and orientation. If there are, the most appropriate one is selected and, if it has an on_interact script, it is run. If the manager is in battle mode, it will do nothing.

◆ CheckSolidCollisions()

bool EntityManager::CheckSolidCollisions	(	Entity *	entity,
		Ogre::Vector3 &	position
	)

private

Checks for collisions of the entity with other entities.

Parameters

[in]	entity	Entity to check for collisions.
[in]	position	Position of the entity.

Returns: True if the entity is colliding with another, false otherwise. If the entity is not solid, always false. If the manager is in battle mode, it will always return false.

◆ CheckTriggers()

void EntityManager::CheckTriggers	(	Entity *	entity,
		const Ogre::Vector3 &	position
	)

private

Checks for entity triggers near a entity.

If there are triggers, and the conditions are met, the appropriate trigger function will be added to the queue. This must be tested every time an entity moves. If the entity is not the playable character, is not solid or is locked, it will do nothing. If the manager is in battle mode, it will do nothing.

Parameters

[in]	entity	Entity to check for nearby triggers.
[in]	position	The position of the entity.

◆ ClearBattle()

void EntityManager::ClearBattle ( )

overridevirtual

Clears all battle information in the entity manager.

It clears any pending actions and all the battle entities.

Implements Manager.

◆ ClearField()

void EntityManager::ClearField ( )

overridevirtual

Clears all field information in the entity manager.

It clears the background, the walkmesh, any pending actions and all the field entities.

Implements Manager.

◆ ClearWorld()

void EntityManager::ClearWorld ( )

overridevirtual

Clears all world map information in the entity manager.

It clears the background, the walkmesh, any pending actions and all the world entities.

Implements Manager.

◆ GetBackground2D()

Background2D * EntityManager::GetBackground2D ( )

Retrieves the 2D background.

Returns: The 2D background.

◆ GetBackground3D()

Entity * EntityManager::GetBackground3D ( ) const

Retrieves the entity associated to the 3D background.

Returns: The 3D background entity. nullptr if not set, of if the manager is in field mode.

◆ GetDirectionToPoint()

Ogre::Degree EntityManager::GetDirectionToPoint	(	const Ogre::Vector3 &	current_point,
		const Ogre::Vector3 &	direction_point
	)

staticprivate

Calculates the direction degree between to points.

Parameters

[in]	current_point	Origin point.
[in]	direction_point	Next point in the direction.

Returns: Degrees between the two points

◆ GetEncounterRate()

float EntityManager::GetEncounterRate ( )

Get the encounter rate for the field.

Returns: The encounter rate, between 0 and 1 (both included).

◆ GetEntity()

Entity * EntityManager::GetEntity ( const Ogre::String & name ) const

Retrieves an entity by name.

Only entities of the current active module will be searched.

Parameters

[in] name Name of the entity to retrieve.

Returns: The entity by the specified name, or nullptr if there is no one.

◆ GetEntityFromCharacterId()

Entity * EntityManager::GetEntityFromCharacterId ( const int id ) const

Retrieves an entity by it's assigned character ID.

Only entities of the current active module will be searched.

Parameters

[in] id Character ID of the entity to retrieve.

Returns: The entity assigned to the character, or nullptr if there is no one.

◆ GetEntityFromIndex()

Entity * EntityManager::GetEntityFromIndex ( const int id ) const

Retrieves an entity by it's index in the field.

Only entities of the current active module will be searched.

Parameters

[in] id Index of the entity to retrieve.

Returns: The entity with the ID, or nullptr if there is no one.

◆ GetRandomEncounters()

bool EntityManager::GetRandomEncounters ( )

Checks if random battle encounters are active in the field.

Returns: True if random battles can occur, false otherwise.

◆ GetWalkmesh()

Walkmesh * EntityManager::GetWalkmesh ( )

Retrieves the walkmesh.

Returns: The walkmesh.

◆ Input()

void EntityManager::Input ( const VGears::Event & event )

overridevirtual

Handles an input event.

Parameters

[in] event Event to handle.

Implements Manager.

◆ IsKeyOff()

bool EntityManager::IsKeyOff ( unsigned int key_code )

Checks if a key is not being pressed.

Parameters

[in] key_code The code of the key to test.

Returns: False if the key is being pressed, true otherwise.

◆ IsKeyOn()

bool EntityManager::IsKeyOn ( unsigned int key_code )

Checks if a key is being pressed.

Parameters

[in] key_code The code of the key to test.

Returns: True if the key is being pressed, false otherwise.

◆ OnResize()

void EntityManager::OnResize ( )

overridevirtual

Handles resizing events.

Implements Manager.

◆ PerformWalkmeshMove()

bool EntityManager::PerformWalkmeshMove	(	Entity *	entity,
		const float	speed
	)

private

Moves an entity in the walkmesh.

If the manager is in battle mode, it will do nothing.

Parameters

[in]	entity	Entity to move.
[in]	speed	Movement speed.

Returns: True if the movement was possible and the entity was moved, false otherwise. If the manager is in battle mode, it will always return false.

◆ PointElevation()

float EntityManager::PointElevation	(	const Ogre::Vector2 &	point,
		const Ogre::Vector3 &	a,
		const Ogre::Vector3 &	b,
		const Ogre::Vector3 &	c
	)

staticprivate

Calculates the point elevation over a plane.

Parameters

[in]	point	Point to calculate the elevation of.
[in]	a	First point of the plane.
[in]	b	Second point of the plane.
[in]	c	Third point of the plane.

Returns: The elevation of the point.

◆ ScriptAddEntity()

void EntityManager::ScriptAddEntity	(	const char *	name,
		const char *	file_name,
		const float	x,
		const float	y,
		const float	z,
		const float	direction,
		int	index
	)

Adds an entity to the manager.

Simplified version of {

See also: AddEntity}, to be called from Lua scripts.

Parameters

[in]	name	Entity name.
[in]	file_name	Path to the entity model file.
[in]	x	X coordinate of the entity position in the map.
[in]	y	Y coordinate of the entity position in the map.
[in]	z	Z coordinate of the entity position in the map.
[in]	direction	Entity face direction.
[in]	index	Index of the entity on the manager.

◆ ScriptAddEntityScript()

void EntityManager::ScriptAddEntityScript ( const char * name )

Adds an entity script to the manager.

Parameters

[in] name Entity script name.

◆ ScriptGetEntity()

Entity * EntityManager::ScriptGetEntity ( const char * name ) const

Retrieves an entity by name.

Only entities of the current active module will be searched.

Parameters

[in] name Name of the entity to retrieve.

Returns: The entity by the specified name, or nullptr if there is no one.

◆ ScriptGetEntityPoint()

EntityPoint * EntityManager::ScriptGetEntityPoint ( const char * name ) const

Retrieves an entity point by name.

Parameters

[in] name Name of the entity point to retrieve.

Returns: The entity point by the specified name, or nullptr if there is no one or the manager is in battle mode.

◆ ScriptGetPlayerEntity()

Entity * EntityManager::ScriptGetPlayerEntity ( ) const

Retrieves the playable entity.

Returns: The playable entity, or nullptr if it's not defined or the EntityManager is in battle mode.

◆ ScriptPlayerLock()

void EntityManager::ScriptPlayerLock ( const bool lock )

Locks or unlocks player control of the playable entity.

If the EntityManager is in battle mode, nothing will be done.

Parameters

[in] lock True to lock, false to unlock.

◆ ScriptSetPlayerEntity()

void EntityManager::ScriptSetPlayerEntity ( const char * name )

Sets the playable entity.

If no entities are found by name, no one will be assigned, the previous playable entity will remain so, and no warning will be issued. Also, if the EntityManager is in battle mode, nothing will be done.

Parameters

[in] name Name of the entity to make playable.

◆ ScriptUnsetPlayerEntity()

void EntityManager::ScriptUnsetPlayerEntity ( )

Unsets any playable entities.

If the EntityManager is in battle mode, nothing will be done.

◆ SetBackground3D()

void EntityManager::SetBackground3D	(	const Ogre::String &	name,
		const Ogre::String &	file_name
	)

Sets the 3D model for the background.

Parameters

[in]	name	name for the background entity, for debugging purposes only.
[in]	file_name	Path to the 3D model file.

◆ SetEncounterRate()

void EntityManager::SetEncounterRate ( float rate )

Sets the battle encounter rate.

Parameters

[in] rate The encounter rate (0-1).

◆ SetEntityDirectionByVector()

void EntityManager::SetEntityDirectionByVector	(	Entity *	entity,
		const Ogre::Vector2 &	vector
	)

private

Sets an entity direction.

Parameters

[in]	entity	Entity whose direction is to be set.
[in]	vector	Direction vector.

◆ SetEntityOnWalkmesh()

bool EntityManager::SetEntityOnWalkmesh ( Entity * entity )

private

Attaches an entity to the walkmesh.

It sets the triangle from the entity position coordinates. To account for multiple triangles on different levels, it uses only the X and Y coordinates, and automatically sets the Z one to the closest triangle. If the manager is in battle mode, it will do nothing.

Parameters

[in] entity Entity to attach.

Returns: True if the entity was assigned to a walkmesh triangle, false if the entity is not in a triangle or if the manager is in battle mode.

◆ SetEntityToCharacter()

void EntityManager::SetEntityToCharacter	(	const char *	entity_name,
		unsigned int	char_id
	)

Assigns a character to an entity.

Only entities of the currently active module can be assigned

Parameters

[in]	entity_name	The entity name.
[in]	char_id	The character ID.

◆ SetNextJumpStep()

void EntityManager::SetNextJumpStep ( Entity * entity )

private

Calculates and sets the next position during a jump.

If the manager is in battle mode, it will do nothing

Parameters

[in] entity The jump entity.

◆ SetNextLinearStep()

void EntityManager::SetNextLinearStep ( Entity * entity )

private

Calculates and sets the next position during a linear movement.

If the manager is in battle mode, it will do nothing

Parameters

[in] entity The moving entity.

◆ SetNextOffsetStep()

void EntityManager::SetNextOffsetStep ( Entity * entity )

private

Calculates the next offset step for an entity.

Parameters

[in] entity The entity.

◆ SetNextScrollStep()

void EntityManager::SetNextScrollStep ( )

private

Todo:: Understand and document.

◆ SetNextTurnStep()

void EntityManager::SetNextTurnStep ( Entity * entity )

private

Calculates the next turn step for an entity.

Parameters

[in] entity The entity.

◆ SetPlayerMoveRotation()

void EntityManager::SetPlayerMoveRotation ( const Ogre::Radian rotation )

Sets the baseline rotation for the player controlled entity.

If the EntityManager is in battle mode, nothing will be done.

Parameters

[in] rotation Baseline rotation.

Todo:: Verify this description.

◆ SetRandomEncounters()

void EntityManager::SetRandomEncounters ( bool active )

Enables or disables random encounters in the field.

Parameters

[in] active True to enable encounters, false to deactivate them.

◆ SideOfVector()

float EntityManager::SideOfVector	(	const Ogre::Vector2 &	point,
		const Ogre::Vector2 &	p1,
		const Ogre::Vector2 &	p2
	)

staticprivate

Determines at which side of a line a point is.

Parameters

[in]	point	The point to evaluate.
[in]	p1	The first point of the line.
[in]	p2	The second point of the line.

Returns: A negative value if the point is on the "left" of the line vector, a positive value if the point is on the "right" of the vector line, or 0 if the point is part of the line. "Left" and "right" are determined by going from p1 to p2.

◆ SquareDistanceToLine()

float EntityManager::SquareDistanceToLine	(	const Ogre::Vector3 &	point,
		const Ogre::Vector3 &	point_a,
		const Ogre::Vector3 &	point_b,
		Ogre::Vector3 &	proj
	)

staticprivate

Calculates the square distance between a point and a line.

The calculated distance is the vector orthogonal to the line that passes by the point, i.e. the shortest distance.

Parameters

[in]	point	The point.
[in]	point_a	First point of the line.
[in]	point_b	Second point of the line.
[out]	proj	Vector representing the shortest distance.

Returns: The distance from the point to the line.

◆ UpdateBattle()

void EntityManager::UpdateBattle ( )

overrideprivatevirtual

Updates the battle entities in the manager.

Implements Manager.

◆ UpdateDebug()

void EntityManager::UpdateDebug ( )

overridevirtual

Updates the entities in the manager with debug information.

It's automatically called from {

See also: Update}.

Implements Manager.

◆ UpdateField()

void EntityManager::UpdateField ( )

overrideprivatevirtual

Updates the field entities in the manager.

Implements Manager.

◆ UpdateWorld()

void EntityManager::UpdateWorld ( )

overrideprivatevirtual

Updates the world map entities in the manager.

Implements Manager.

◆ WalkmeshBorderCross()

bool EntityManager::WalkmeshBorderCross	(	Entity *	entity,
		Ogre::Vector3 &	position,
		const Ogre::Vector2 &	move_vector
	)

private

Checks if the entity is crossing a walkmesh triangle border.

Parameters

[in]	entity	Entity to check.
[in]	position	The position.

Todo:: document more.

Parameters

[in] move_vector The move vector.

Todo:: document more.

Returns: True if the entity is crossing a triangle border, false otherwise. If the manager is in battle mode, it will always return false.

Member Data Documentation

◆ axis_

Ogre::Entity* EntityManager::axis_

private

Todo:: Understand and document.

◆ background_2d_

Background2D EntityManager::background_2d_

private

The map background.

◆ background_3d_

Entity* EntityManager::background_3d_

private

A 3D background.

◆ BATTLE_BACKGROUND_ID

const unsigned int EntityManager::BATTLE_BACKGROUND_ID = 1000

staticprivate

Entity ID for battle background entity.

◆ battle_entity_

std::vector<Entity*> EntityManager::battle_entity_

private

The list of battle entities.

◆ encounter_rate_

float EntityManager::encounter_rate_

private

The encounter rate of the map.

◆ entity_

std::vector<Entity*> EntityManager::entity_

private

The list of field or world entities.

◆ entity_points_

std::vector<EntityPoint*> EntityManager::entity_points_

private

List of points.

◆ entity_scripts_

std::vector<Ogre::String> EntityManager::entity_scripts_

private

List of scripts.

◆ entity_table_name_

Ogre::String EntityManager::entity_table_name_

private

The entity table name.

◆ entity_triggers_

std::vector<EntityTrigger*> EntityManager::entity_triggers_

private

List of triggers.

◆ grid_

Ogre::Entity* EntityManager::grid_

private

Todo:: Understand and document.

◆ player_entity_

Entity* EntityManager::player_entity_

private

The player controlled entity.

◆ player_lock_

bool EntityManager::player_lock_

private

Indicates if player control is locked.

◆ player_move_

Ogre::Vector3 EntityManager::player_move_

private

The playable entity current movement indicator.

Applies only for manual movement.

◆ player_move_rotation_

Ogre::Radian EntityManager::player_move_rotation_

private

The playable entity current movement turn indicator.

Applies only for manual movement.

◆ player_run_

bool EntityManager::player_run_

private

Indicates if the playable is being moved by running.

Applies only for manual movement.

◆ random_encounters_

bool EntityManager::random_encounters_

private

Indicates if random encounters happen in the map.

◆ scene_node_

Ogre::SceneNode* EntityManager::scene_node_

private

The scene node.

◆ SCENE_SCALE

const float EntityManager::SCENE_SCALE = 0.003f

staticprivate

Scale factor for battle background models.

◆ walkmesh_

Walkmesh EntityManager::walkmesh_

private

The map walkmesh.

◆ WORLD_MAP_BACKGROUND_ID

const unsigned int EntityManager::WORLD_MAP_BACKGROUND_ID = 1001

staticprivate

Entity ID for world map background entity.

The documentation for this class was generated from the following files:

src/core/EntityManager.h
src/core/EntityManager.cpp

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EntityManager()

◆ ~EntityManager()

Member Function Documentation

◆ AddBattleEntity()

◆ AddEntity() [1/2]

◆ AddEntity() [2/2]

◆ AddEntityPoint()

◆ AddEntityScript()

◆ AddEntityTrigger()

◆ AddFieldOrWorldMapEntity()

◆ CheckEntityInteract()

◆ CheckSolidCollisions()

◆ CheckTriggers()

◆ ClearBattle()

◆ ClearField()

◆ ClearWorld()

◆ GetBackground2D()

◆ GetBackground3D()

◆ GetDirectionToPoint()

◆ GetEncounterRate()

◆ GetEntity()

◆ GetEntityFromCharacterId()

◆ GetEntityFromIndex()

◆ GetRandomEncounters()

◆ GetWalkmesh()

◆ Input()

◆ IsKeyOff()

◆ IsKeyOn()

◆ OnResize()

◆ PerformWalkmeshMove()

◆ PointElevation()

◆ ScriptAddEntity()

◆ ScriptAddEntityScript()

◆ ScriptGetEntity()

◆ ScriptGetEntityPoint()

◆ ScriptGetPlayerEntity()

◆ ScriptPlayerLock()

◆ ScriptSetPlayerEntity()

◆ ScriptUnsetPlayerEntity()

◆ SetBackground3D()

◆ SetEncounterRate()

◆ SetEntityDirectionByVector()

◆ SetEntityOnWalkmesh()

◆ SetEntityToCharacter()

◆ SetNextJumpStep()

◆ SetNextLinearStep()

◆ SetNextOffsetStep()

◆ SetNextScrollStep()

◆ SetNextTurnStep()

◆ SetPlayerMoveRotation()

◆ SetRandomEncounters()

◆ SideOfVector()

◆ SquareDistanceToLine()

◆ UpdateBattle()

◆ UpdateDebug()

◆ UpdateField()

◆ UpdateWorld()

◆ WalkmeshBorderCross()

Member Data Documentation

◆ axis_

◆ background_2d_

◆ background_3d_

◆ BATTLE_BACKGROUND_ID

◆ battle_entity_

◆ encounter_rate_

◆ entity_

◆ entity_points_

◆ entity_scripts_

◆ entity_table_name_

◆ entity_triggers_

◆ grid_

◆ player_entity_
