Disassembler Class Reference

Base class for disassemblers. More...

#include <Disassembler.h>

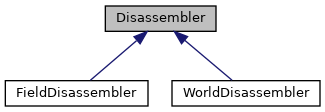

Inheritance diagram for Disassembler:

Public Member Functions
	Disassembler (InstVec &insts)
	Constructor for Disassembler. More...
virtual	~Disassembler ()=default
	Destructor. More...
virtual void	Open (const char *filename)
	Open a file for disassembly. More...
void	Disassemble ()
	Request disassembled instructions. More...
void	DumpDisassembly (std::ostream &output)
	Outputs the disassembled code. More...

Protected Member Functions
virtual void	DoDisassemble ()=0
	Performs disassembly. More...
virtual void	DoDumpDisassembly (std::ostream &output)
	Outputs the disassembled code. More...
void	ReadParams (InstPtr inst, const char *types)
	Read parameters and associate them with an instruction. More...
void	ReadParams (InstPtr inst, const char *types, const std::vector< std::string > &params)
	Read parameters but it doesn't associate them with an instruction. More...
virtual ValuePtr	ReadParameter (InstPtr inst, std::string type)
	Reads data for a single parameter. More...

Protected Attributes
std::unique_ptr< BinaryReader >	stream_
	Used to perform file I/O. More...
InstVec &	insts_
	List of disassembled instructions. More...
uint32	address_base_
	Base address where the script starts. More...
uint32	address_
	The current address. More...

Detailed Description

Base class for disassemblers.

Constructor & Destructor Documentation

Disassembler()

Disassembler::Disassembler

(

InstVec &

insts

)

Constructor for Disassembler.

Parameters

[in]

insts

Where disassembled instructions will be placed.

~Disassembler()

virtual Disassembler::~Disassembler ( )

virtualdefault

Destructor.

Member Function Documentation

Disassemble()

void Disassembler::Disassemble

(

)

Request disassembled instructions.

DoDisassemble()

virtual void Disassembler::DoDisassemble ( )

protectedpure virtual

Performs disassembly.

Exceptions

UnknownOpcodeException	on unknown opcode.
std::exception	on other failures.

Implemented in FieldDisassembler, and WorldDisassembler.

DoDumpDisassembly()

void Disassembler::DoDumpDisassembly ( std::ostream &  output )

protectedvirtual

Outputs the disassembled code.

Parameters

[out]

output

The output stream.

DumpDisassembly()

void Disassembler::DumpDisassembly

(

std::ostream &

output

)

Outputs the disassembled code.

Disassembles code if this has not already been done.

Parameters

[out]

output

The output stream.

Open()

void Disassembler::Open ( const char *  filename )

virtual

Open a file for disassembly.

Parameters

[in]

filename

The file to Disassemble.

Reimplemented in FieldDisassembler.

ReadParameter()

ValuePtr Disassembler::ReadParameter ( InstPtr  inst, std::string  type  )

protectedvirtual

Reads data for a single parameter.

Parameters

[in]	inst	The instruction the parameter will belong to. Unused.
[in]	type	Character describing the type of the parameter.

Returns

The read data.

ReadParams() [1/2]

void Disassembler::ReadParams ( InstPtr  inst, const char *  types  )

protected

Read parameters and associate them with an instruction.

Parameters

[in]	inst	The instruction to associate the parameters with.
[in]	types	NUL-terminated string describing the type of each parameter.

ReadParams() [2/2]

void Disassembler::ReadParams ( InstPtr  inst, const char *  types, const std::vector< std::string > &  params  )

protected

Read parameters but it doesn't associate them with an instruction.

Parameters

[in]	inst	The instruction to associate the parameters with. Unused.
[in]	types	NUL-terminated string describing the type of each parameter.
[in]	params	Unused.

Member Data Documentation

address_

uint32 Disassembler::address_

protected

The current address.

address_base_

uint32 Disassembler::address_base_

protected

Base address where the script starts.

insts_

InstVec& Disassembler::insts_

protected

List of disassembled instructions.

stream_

std::unique_ptr<BinaryReader> Disassembler::stream_

protected

Used to perform file I/O.

---

The documentation for this class was generated from the following files:

• src/installer/decompiler/Disassembler.h
• src/installer/decompiler/Disassembler.cpp
