A disassebler for field maps. More...

#include <FieldDisassembler.h>

Inheritance diagram for FieldDisassembler:

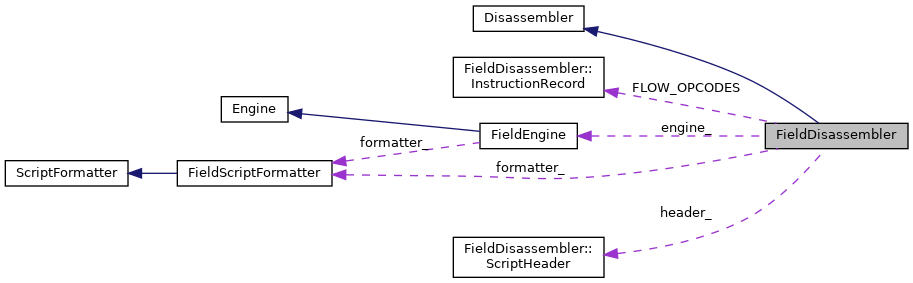

Collaboration diagram for FieldDisassembler:

[legend]

Classes
struct	InstructionRecord
	Information about an instruction. More...

struct	ScriptHeader
	A script header. More...

struct	ScriptInfo
	Info about a script. More...

Public Member Functions
	FieldDisassembler (FieldScriptFormatter &formatter, FieldEngine *engine, InstVec &insts)
	Constructor. More...

	FieldDisassembler (FieldScriptFormatter &formatter, FieldEngine *engine, InstVec &insts, const std::vector< unsigned char > &raw_script_data)
	Constructor. More...

	~FieldDisassembler ()
	Destructor. More...

float	GetScaleFactor () const
	Retrieves the scale factor for the field. More...

virtual void	DoDisassemble () override
	Disassembles the instructions. More...

Public Member Functions inherited from Disassembler
	Disassembler (InstVec &insts)
	Constructor for Disassembler. More...

virtual	~Disassembler ()=default
	Destructor. More...

virtual void	Open (const char *filename)
	Open a file for disassembly. More...

void	Disassemble ()
	Request disassembled instructions. More...

void	DumpDisassembly (std::ostream &output)
	Outputs the disassembled code. More...

Static Public Member Functions
static std::map< std::string, const InstructionRecord * >	FieldInstructions ()
	Generates a map of control flow instructions. More...

static int	FindId (uint32 start_addr, uint32 end_addr, const InstVec &insts)
	Finds the ID of the character a function refers to. More...

Static Public Attributes
static InstructionRecord	FLOW_OPCODES []
	A list of flow control opcodes needed by the disassembler. More...

Private Types
enum	SECTIONS { SCRIPT = 0 , WALKMESH = 1 , TILE_MAP = 2 , CAMERA_MATRIX = 3 , TRIGGERS = 4 , ENCOUNTERS = 5 , MODELS = 6 }
	The sections of a field. More...

Private Member Functions
virtual void	Open (const char *filename) override
	Open a file for disassembly. More...

void	DisassembleIndivdualScript (std::string entity_name, size_t entity_index, size_t script_index, size_t script_entry_point, uint32 next_script_entry_point, bool is_start, bool is_end)
	Disassembles a script (function). More...

void	AddFunc (std::string entity_name, size_t entity_index, size_t script_index, uint32 next_script_entry_point, const bool is_start, const bool is_end, bool to_return_only, std::string func_name)
	Adds a function to the engine. More...

bool	ReadOpCodesToPositionOrReturn (size_t end_pos, std::vector< float > &point_a, std::vector< float > &point_b)
	Reads opcodes from a script, and detects lines. More...

std::unique_ptr< Function >	StartFunction (size_t script_index)
	Initializes a function for an entity. More...

void	ReadHeader ()
	Reads the header. More...

void	ReadHeader (BinaryReader &reader)
	Reads the header. More...

uint32	GetEndOfScriptOffset (uint16 cur_entry_point, size_t entity_index, size_t script_index)
	Retrieves the offset of the end of a script. More...

template<typename T >
void	ParseOpcode (int opcode, std::string name, T instruction, int stack_change, const char *argument_format)
	Parses an opcode. More...

Private Attributes
FieldEngine *	engine_
	The engine. More...

uint32	header_end_position_ = 0
	Last address of the header. More...

std::array< uint32, 7 >	sections_
	The list of sections. More...

int16	section_pointers_size_
	Size of the pointers to sections. More...

ScriptHeader	header_
	The field header. More...

bool	loaded_from_raw_data_ = false
	Indicates if the field has been loaded from raw data. More...

FieldScriptFormatter &	formatter_
	The formatter. More...

float	scale_factor_ = 1.0f
	The scale factor of the field. More...

Static Private Attributes
static const int	MAGIC
	Field file identification magic number. More...

static const int	NUM_SECTIONS
	The number of sections in a field. More...

Additional Inherited Members
Protected Member Functions inherited from Disassembler
virtual void	DoDisassemble ()=0
	Performs disassembly. More...

virtual void	DoDumpDisassembly (std::ostream &output)
	Outputs the disassembled code. More...

void	ReadParams (InstPtr inst, const char *types)
	Read parameters and associate them with an instruction. More...

void	ReadParams (InstPtr inst, const char *types, const std::vector< std::string > &params)
	Read parameters but it doesn't associate them with an instruction. More...

virtual ValuePtr	ReadParameter (InstPtr inst, std::string type)
	Reads data for a single parameter. More...

Protected Attributes inherited from Disassembler
std::unique_ptr< BinaryReader >	stream_
	Used to perform file I/O. More...

InstVec &	insts_
	List of disassembled instructions. More...

uint32	address_base_
	Base address where the script starts. More...

uint32	address_
	The current address. More...

Detailed Description

A disassebler for field maps.

Member Enumeration Documentation

◆ SECTIONS

enum FieldDisassembler::SECTIONS

private

The sections of a field.

Enumerator
SCRIPT	The scripts section.
WALKMESH	The walkmesh section.
TILE_MAP	The tiles section.
CAMERA_MATRIX	The camera section.
TRIGGERS	The triggers section.
ENCOUNTERS	Encounter data section.
MODELS	Field models section.

Constructor & Destructor Documentation

◆ FieldDisassembler() [1/2]

FieldDisassembler::FieldDisassembler	(	FieldScriptFormatter &	formatter,
		FieldEngine *	engine,
		InstVec &	insts
	)

Constructor.

Parameters

[in]	formatter	The code formatter.
[in]	engine	The engine to use to disassemble.
[in]	insts	The list of instructions.

◆ FieldDisassembler() [2/2]

FieldDisassembler::FieldDisassembler	(	FieldScriptFormatter &	formatter,
		FieldEngine *	engine,
		InstVec &	insts,
		const std::vector< unsigned char > &	raw_script_data
	)

Constructor.

Parameters

[in]	formatter	The code formatter.
[in]	engine	The engine to use to disassemble.
[in]	insts	The list of instructions.
[in]	raw_script_data

Todo:: Understand and document.

◆ ~FieldDisassembler()

FieldDisassembler::~FieldDisassembler ( )

Destructor.

Member Function Documentation

◆ AddFunc()

void FieldDisassembler::AddFunc	(	std::string	entity_name,
		size_t	entity_index,
		size_t	script_index,
		uint32	next_script_entry_point,
		const bool	is_start,
		const bool	is_end,
		bool	to_return_only,
		std::string	func_name
	)

private

Adds a function to the engine.

Parameters

[in]	entity_name	Name of the entity that owns the function.
[in]	entity_index	Index of the entity that owns the function.
[in]	script_index	Index of the script within the entity.
[in]	next_script_entry_point	Start position of the next script (or the ending position of this one, plus one).
[in]	is_start

Todo:: Understand and document.

Parameters

[in] is_end

Todo:: Understand and document.

Parameters

[in]	to_return_only	True to read the script only until the first return.
[in]	func_name	Name of the function. If the entity is a line, the provided name will be overridden and set to the standard line entity script names.

◆ DisassembleIndivdualScript()

void FieldDisassembler::DisassembleIndivdualScript	(	std::string	entity_name,
		size_t	entity_index,
		size_t	script_index,
		size_t	script_entry_point,
		uint32	next_script_entry_point,
		bool	is_start,
		bool	is_end
	)

private

Disassembles a script (function).

Parameters

[in]	entity_name	Name of the entity the script belongs to.
[in]	entity_index	Index of the entity the script belongs to.
[in]	script_index	Index of the script, relative to the entity scripts.
[in]	script_entry_point	Address of the first instruction of the script to disassemble.
[in]	next_script_entry_point	Address of the first instruction of the script next to the one to disassemble (i.e. the last address of the script to disassemble, plus one).
[in]	is_start	Indicates if the script is the first one for it's entity.
[in]	is_end	Indicates if the script is the last one for it's entity.

Exceptions

DecompilerException for malformed scripts.

◆ DoDisassemble()

void FieldDisassembler::DoDisassemble ( )

overridevirtual

Disassembles the instructions.

Implements Disassembler.

◆ FieldInstructions()

std::map< std::string, const FieldDisassembler::InstructionRecord * > FieldDisassembler::FieldInstructions ( )

static

Generates a map of control flow instructions.

Returns: A map of control flow instructions, by opcode name.

◆ FindId()

int FieldDisassembler::FindId	(	uint32	start_addr,
		uint32	end_addr,
		const InstVec &	insts
	)

static

Finds the ID of the character a function refers to.

Parameters

[in]	start_addr	The starting address of the function.
[in]	end_addr	The ending address of the instruction.
[in]	insts	The list of instructions to search.

Returns: The ID of the character the function refers to, or -1 if the function doesn't belong to a character.

◆ GetEndOfScriptOffset()

uint32 FieldDisassembler::GetEndOfScriptOffset	(	uint16	cur_entry_point,
		size_t	entity_index,
		size_t	script_index
	)

private

Retrieves the offset of the end of a script.

Parameters

[in] cur_entry_point

Todo:: Understand and document.

Parameters

[in]	entity_index	Index of the entity the script belongs to.
[in]	script_index	The script index.

Returns: The address of the end of the script.

◆ GetScaleFactor()

float FieldDisassembler::GetScaleFactor ( ) const

Retrieves the scale factor for the field.

◆ Open()

void FieldDisassembler::Open ( const char * filename )

overrideprivatevirtual

Open a file for disassembly.

Parameters

[in] filename The file to disassemble.

Deprecated:: Do not use. Load the instructions from the constructor.

Reimplemented from Disassembler.

◆ ParseOpcode()

template<typename T >

void FieldDisassembler::ParseOpcode	(	int	opcode,
		std::string	name,
		T	instruction,
		int	stack_change,
		const char *	argument_format
	)

inlineprivate

Parses an opcode.

Adds properties to an instruction, and adds the instruction to the list.

Parameters

[in]	opcode	The opcode code.
[in]	name	the opcode name.
[in]	instruction	A newly created instruction of the type the opcode belongs to.
[in]	stack_change	Indicates how much the instruction changes the stack pointer by.
[in]	argument_format	The opcode argument format.

◆ ReadHeader() [1/2]

void FieldDisassembler::ReadHeader ( )

private

Reads the header.

◆ ReadHeader() [2/2]

void FieldDisassembler::ReadHeader ( BinaryReader & reader )

private

Reads the header.

Parameters

[in] reader Reader to use to read.

◆ ReadOpCodesToPositionOrReturn()

bool FieldDisassembler::ReadOpCodesToPositionOrReturn	(	size_t	end_pos,
		std::vector< float > &	point_a,
		std::vector< float > &	point_b
	)

private

Reads opcodes from a script, and detects lines.

It stops when it reaches the ending position or a RET opcode, whatever comes first. It also detects if one of the read opcodes LINE, which means that the entity is a line

Parameters

[in]	end_pos	The last position to read. Opcodes will be read until this, or until a RET is found.
[out]	point_a	If a LINE opcode is found, the first point will be saved here.
[out]	point_b	If a LINE opcode is found, the second point will be saved here.

Returns: True if LINE opcode found, false if not.

◆ StartFunction()

std::unique_ptr< Function > FieldDisassembler::StartFunction ( size_t script_index )

private

Initializes a function for an entity.

Parameters

[in] script_index Index of the script.

Member Data Documentation

◆ engine_

FieldEngine* FieldDisassembler::engine_

private

The engine.

◆ FLOW_OPCODES

FieldDisassembler::InstructionRecord FieldDisassembler::FLOW_OPCODES

static

Initial value:

={
    {1, OPCODES::RET, "RET", "", FieldControlFlowInstruction::Create},
    {1, OPCODES::REQ, "REQ", "BU", FieldControlFlowInstruction::Create},
    {1, OPCODES::REQSW, "REQSW", "BU", FieldControlFlowInstruction::Create},
    {1, OPCODES::REQEW, "REQEW", "BU", FieldControlFlowInstruction::Create},
    {1, OPCODES::NOP, "NOP", "", FieldNoOperationInstruction::Create},
    {1, OPCODES::IFUB, "IFUB", "NNBBBL", FieldNoOperationInstruction::Create}
}

A list of flow control opcodes needed by the disassembler.

◆ formatter_

FieldScriptFormatter& FieldDisassembler::formatter_

private

The formatter.

◆ header_

ScriptHeader FieldDisassembler::header_

private

The field header.

◆ header_end_position_

uint32 FieldDisassembler::header_end_position_ = 0

private

Last address of the header.

◆ loaded_from_raw_data_

bool FieldDisassembler::loaded_from_raw_data_ = false

private

Indicates if the field has been loaded from raw data.

◆ MAGIC

const int FieldDisassembler::MAGIC

staticprivate

Field file identification magic number.

◆ NUM_SECTIONS

const int FieldDisassembler::NUM_SECTIONS

staticprivate

The number of sections in a field.

◆ scale_factor_

float FieldDisassembler::scale_factor_ = 1.0f

private

The scale factor of the field.

◆ section_pointers_size_

int16 FieldDisassembler::section_pointers_size_

private

Size of the pointers to sections.

Todo:: Understand and document.

◆ sections_

std::array<uint32, 7> FieldDisassembler::sections_

private

The list of sections.

The documentation for this class was generated from the following files:

src/installer/decompiler/field/FieldDisassembler.h
src/installer/decompiler/field/FieldDisassembler.cpp

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ SECTIONS

Constructor & Destructor Documentation

◆ FieldDisassembler() [1/2]

◆ FieldDisassembler() [2/2]

◆ ~FieldDisassembler()

Member Function Documentation

◆ AddFunc()

◆ DisassembleIndivdualScript()

◆ DoDisassemble()

◆ FieldInstructions()

◆ FindId()

◆ GetEndOfScriptOffset()

◆ GetScaleFactor()

◆ Open()

◆ ParseOpcode()

◆ ReadHeader() [1/2]

◆ ReadHeader() [2/2]

◆ ReadOpCodesToPositionOrReturn()

◆ StartFunction()

Member Data Documentation

◆ engine_

◆ FLOW_OPCODES

◆ formatter_

◆ header_

◆ header_end_position_

◆ loaded_from_raw_data_

◆ MAGIC

◆ NUM_SECTIONS

◆ scale_factor_

◆ section_pointers_size_

◆ sections_
