The code generator. More...

#include <FieldCodeGenerator.h>

Inheritance diagram for FieldCodeGenerator:

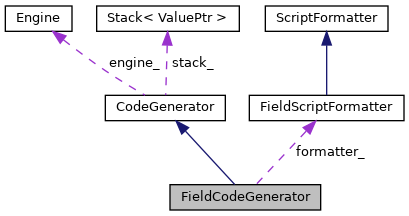

Collaboration diagram for FieldCodeGenerator:

[legend]

Public Types
enum struct	ValueType : int { Integer = 0 , Float = 1 }
	Type of data. More...

Public Member Functions
	FieldCodeGenerator (Engine *engine, const InstVec &insts, std::ostream &output, FieldScriptFormatter &formatter)
	Constructor. More...

virtual void	Generate (InstVec &insts, const Graph &graph) override
	Generates the script from the instructions. More...

virtual void	AddOutputLine (std::string line, bool unindent_before=false, bool indent_after=false) override
	Adds a line to the script. More...

float	GetScaleFactor () const
	Retrieves the engine scale factor. More...

FieldScriptFormatter &	GetFormatter ()
	Retrieves the formatter. More...

Public Member Functions inherited from CodeGenerator
	CodeGenerator (Engine *engine, std::ostream &output, ARGUMENT_ORDER bin_order, ARGUMENT_ORDER call_order)
	Constructor. More...

virtual	~CodeGenerator ()
	Destructor. More...

LuaLanguage &	GetLanguage ()
	Retrieves the target language. More...

void	WriteFunctionCall (std::string function_name, std::string param_format, const std::vector< ValuePtr > &params)
	Writes a function call. More...

virtual void	Generate (InstVec &insts, const Graph &graph)
	Generates code from the provided graph and outputs it to stdout. More...

virtual void	AddOutputLine (std::string line, bool unindent_before=false, bool indent_after=false)
	Adds a line of code to the current group. More...

void	WriteTodo (std::string class_name, std::string instruction)
	Writes a comment line indicating an unimplemented opcode. More...

void	WriteAssignment (ValuePtr dst, ValuePtr src)
	Generate an assignment statement. More...

void	AddArg (ValuePtr arg)
	Add an argument to the argument list. More...

virtual void	ProcessSpecialMetadata (const InstPtr inst, char c, int pos)
	Process a single character of metadata. More...

virtual ValueList	GetArgList ()
	Retrieves the argument list. More...

virtual ARGUMENT_ORDER	GetBinaryOrder ()
	Retrieves the order of operands for binary operations. More...

Static Public Member Functions
static const std::string	FormatInstructionNotImplemented (const std::string &entity, uint32 address, uint32 opcode)
	Generates code for an unimplemented instruction. More...

static const std::string	FormatInstructionNotImplemented (const std::string &entity, uint32 address, const Instruction &instruction)
	Generates code for an unimplemented instruction. More...

static const std::string	FormatBool (uint32 value)
	Formats a value as a boolean. More...

static const std::string	FormatInvertedBool (uint32 value)
	Formats a value as a boolean. More...

template<typename TValue >
static const std::string	FormatValueOrVariable (FieldScriptFormatter &formatter, uint32 bank, TValue value_or_address, ValueType type=ValueType::Integer, float scale=1.0f)
	Formats a data access for a map script. More...

Protected Member Functions
virtual std::string	ConstructFuncSignature (const Function &function) override
	Constructs the function signature. More...

virtual void	OnEndFunction (const Function &function) override
	Finalizes a function. More...

virtual void	OnBeforeStartFunction (const Function &function) override
	Adds lines to the script before a function. More...

virtual void	OnStartFunction (const Function &function) override
	Initializes a function. More...

virtual bool	OutputOnlyRequiredLabels () const override
	Checks if only required labels are to be written. More...

Protected Member Functions inherited from CodeGenerator
void	ProcessInst (Function &function, InstVec &insts, const InstPtr inst)
	Processes an instruction. More...

void	ProcessUncondJumpInst (Function &function, InstVec &insts, const InstPtr inst)
	Processes an unconditional jump instruction. More...

void	ProcessCondJumpInst (const InstPtr inst)
	Processes a conditional jump instruction. More...

std::string	IndentString (std::string s)
	Indents a string according to the current indentation level. More...

virtual std::string	ConstructFuncSignature (const Function &function)
	Construct the signature for a function. More...

virtual void	OnBeforeStartFunction (const Function &function)
	Adds lines to the script before a function. More...

virtual void	OnEndFunction (const Function &function)
	Adds lines to the script at the end a function. More...

virtual void	OnStartFunction (const Function &function)
	Adds lines to the script before a function instructions. More...

virtual bool	OutputOnlyRequiredLabels () const
	Checks if only required labels are to be written. More...

void	GeneratePass (InstVec &insts, const Graph &graph)
	Generates a pass. More...

Private Attributes
const InstVec &	insts_
	The list of instructions in the function to generate. More...

std::vector< CodeLine >	lines_
	Generated lines. More...

FieldScriptFormatter &	formatter_
	The formatter. More...

Additional Inherited Members
Protected Attributes inherited from CodeGenerator
bool	is_label_pass_ = true
	Indicates if a label is being processed. More...

GroupPtr	cur_group_
	The group currently being processed. More...

Engine *	engine_
	The engine used for teh script. More...

std::ostream &	output_
	The stream to output the code to. More...

ValueStack	stack_
	The stack currently being processed. More...

uint	indent_level_
	Current indentation level. More...

GraphVertex	cur_vertex_
	Graph vertex currently being processed. More...

std::unique_ptr< LuaLanguage >	target_lang_
	The target language. More...

Detailed Description

The code generator.

Generates code for a field map function.

Member Enumeration Documentation

◆ ValueType

enum struct FieldCodeGenerator::ValueType : int

strong

Type of data.

Enumerator
Integer	Integer.
Float	Float.

Constructor & Destructor Documentation

◆ FieldCodeGenerator()

FieldCodeGenerator::FieldCodeGenerator	(	Engine *	engine,
		const InstVec &	insts,
		std::ostream &	output,
		FieldScriptFormatter &	formatter
	)

inline

Constructor.

Parameters

[in]	engine	The engine.
[in]	insts	The list of instructions to parse.
[out]	output	The generated script.
[in]	formatter	The code formatter.

Member Function Documentation

◆ AddOutputLine()

void FieldCodeGenerator::AddOutputLine	(	std::string	line,
		bool	unindent_before = `false`,
		bool	indent_after = `false`
	)

overridevirtual

Adds a line to the script.

Parameters

[in]	line	The line to add.
[in]	unindent_before	If true, the current script indentation will be moved back one position before the line.
[in]	indent_after	If true, the current script indentation will be moved forward one position after the line.

Reimplemented from CodeGenerator.

◆ ConstructFuncSignature()

std::string FieldCodeGenerator::ConstructFuncSignature ( const Function & function )

overrideprotectedvirtual

Constructs the function signature.

The function signature is the LUA function declaration, and it looks like this:

function_name = function(self)

Parameters

[in] function The function to construct the signature for.

Returns: The function signature.

Reimplemented from CodeGenerator.

◆ FormatBool()

const std::string FieldCodeGenerator::FormatBool ( uint32 value )

static

Formats a value as a boolean.

Parameters

[in] value The value to format.

Returns: "false" if the value is 0, "true" otherwise.

◆ FormatInstructionNotImplemented() [1/2]

const std::string FieldCodeGenerator::FormatInstructionNotImplemented	(	const std::string &	entity,
		uint32	address,
		const Instruction &	instruction
	)

static

Generates code for an unimplemented instruction.

The code will actually be a comment, indicating where the function call must have been.

Parameters

[in]	entity	The entity name.
[in]	address	The address of the instruction.
[in]	instruction	The unimplemented instruction.

◆ FormatInstructionNotImplemented() [2/2]

const std::string FieldCodeGenerator::FormatInstructionNotImplemented	(	const std::string &	entity,
		uint32	address,
		uint32	opcode
	)

static

Generates code for an unimplemented instruction.

The code will actually be a comment, indicating where the function call must have been.

Parameters

[in]	entity	The entity name.
[in]	address	The address of the instruction.
[in]	opcode	The opcode not implemented.

◆ FormatInvertedBool()

const std::string FieldCodeGenerator::FormatInvertedBool ( uint32 value )

static

Formats a value as a boolean.

Parameters

[in] value The value to format.

Returns: "true" if the value is 0, "false" otherwise.

◆ FormatValueOrVariable()

template<typename TValue >

static const std::string FieldCodeGenerator::FormatValueOrVariable	(	FieldScriptFormatter &	formatter,
		uint32	bank,
		TValue	value_or_address,
		ValueType	type = `ValueType::Integer`,
		float	scale = `1.0f`
	)

inlinestatic

Formats a data access for a map script.

If possible, it will look for friendly names for variables.

Parameters

[in]	formatter	Formatter to look up variable friendly names.
[in]	bank	The memory bank to use.
[in]	value_or_address	The value or memory address to use. When bank is 0, it will be considered as a value. When bank is non 0, it will be considered an address of the bank.
[in]	type	Data type to use. Used only when getting a value, not a bank address.
[in]	scale	Scale to scale values to. Used only when using float values, unused when type is integer or when using a bank address.

Returns: String with the friendly variable name, value, or bank address.

◆ Generate()

void FieldCodeGenerator::Generate	(	InstVec &	insts,
		const Graph &	graph
	)

overridevirtual

Generates the script from the instructions.

Parameters

[in]	insts	The list of instructions.
[in]	graph	Code graph, unused.

Reimplemented from CodeGenerator.

◆ GetFormatter()

FieldScriptFormatter & FieldCodeGenerator::GetFormatter ( )

Retrieves the formatter.

◆ GetScaleFactor()

float FieldCodeGenerator::GetScaleFactor ( ) const

Retrieves the engine scale factor.

Returns: The scale factor

◆ OnBeforeStartFunction()

void FieldCodeGenerator::OnBeforeStartFunction ( const Function & function )

overrideprotectedvirtual

Adds lines to the script before a function.

If the function is the first in a class, it initializes the class and, if the function belongs to a character, creates the class variable for the character. If the function has a comment associated, it will also be added before the function.

Parameters

[in] function The function about to start.

Reimplemented from CodeGenerator.

◆ OnEndFunction()

void FieldCodeGenerator::OnEndFunction ( const Function & function )

overrideprotectedvirtual

Finalizes a function.

It appends an "end" to finalize the function. If the function is the last of a class, it also closes the class braces.

Parameters

[in] function The function to end.

Reimplemented from CodeGenerator.

◆ OnStartFunction()

void FieldCodeGenerator::OnStartFunction ( const Function & function )

overrideprotectedvirtual

Initializes a function.

It adds a comment with the function opcodes.

Parameters

[in] function The function to start.

Reimplemented from CodeGenerator.

◆ OutputOnlyRequiredLabels()

bool FieldCodeGenerator::OutputOnlyRequiredLabels ( ) const

overrideprotectedvirtual

Checks if only required labels are to be written.

Returns: Always true.

Reimplemented from CodeGenerator.

Member Data Documentation

◆ formatter_

FieldScriptFormatter& FieldCodeGenerator::formatter_

private

The formatter.

◆ insts_

const InstVec& FieldCodeGenerator::insts_

private

The list of instructions in the function to generate.

◆ lines_

std::vector<CodeLine> FieldCodeGenerator::lines_

private

Generated lines.

The documentation for this class was generated from the following files:

src/installer/decompiler/field/FieldCodeGenerator.h
src/installer/decompiler/field/FieldCodeGenerator.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ ValueType

Constructor & Destructor Documentation

◆ FieldCodeGenerator()

Member Function Documentation

◆ AddOutputLine()

◆ ConstructFuncSignature()

◆ FormatBool()

◆ FormatInstructionNotImplemented() [1/2]

◆ FormatInstructionNotImplemented() [2/2]

◆ FormatInvertedBool()

◆ FormatValueOrVariable()

◆ Generate()

◆ GetFormatter()

◆ GetScaleFactor()

◆ OnBeforeStartFunction()

◆ OnEndFunction()

◆ OnStartFunction()

◆ OutputOnlyRequiredLabels()

Member Data Documentation

◆ formatter_

◆ insts_

◆ lines_
